52 13 040 Removing and installing / replacing outer cover on left or right front seat back-rest (normal / manual)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

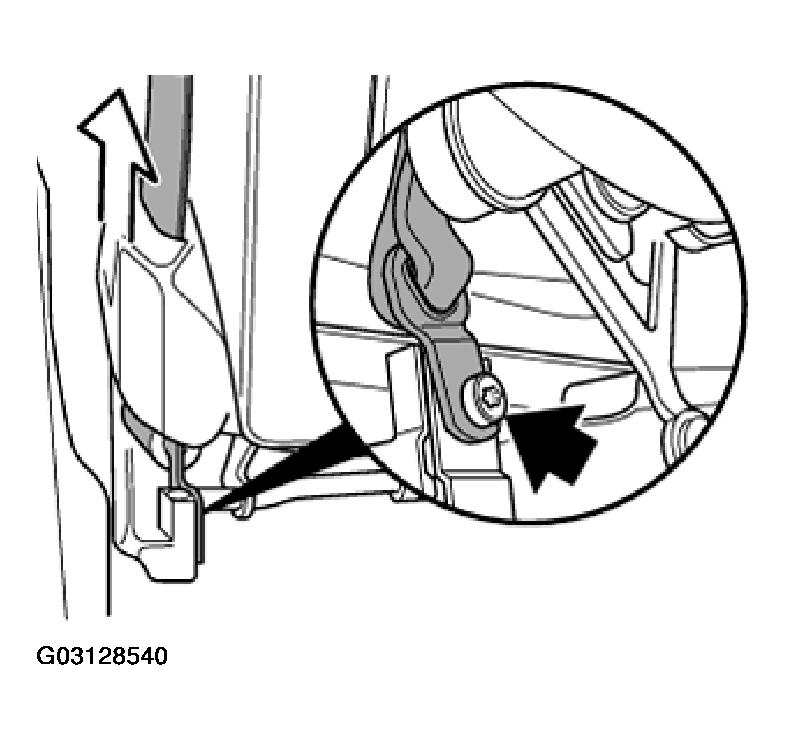

Unfasten seatbelt screw.

Tightening torque. Refer to SEATS - TIGHTENING TORQUES .

Fig 1: Unfastening Seatbelt Screw

Courtesy of BMW OF NORTH AMERICA, INC.

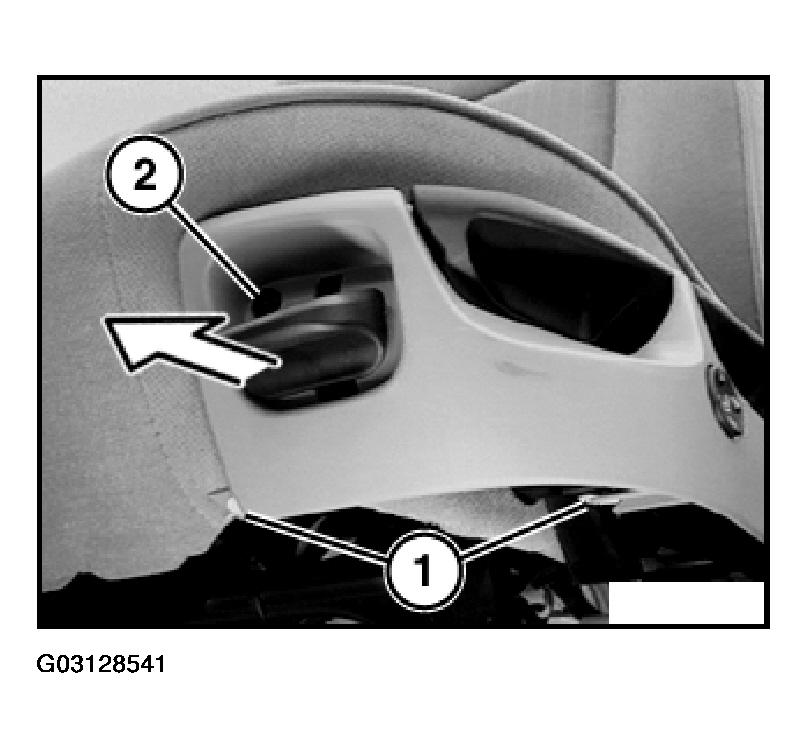

Unfasten clips (1) (cut off or knock off clip head). Unscrew bolt (2). Pull the lever forward to remove.

Fig 2: Unfastening Clips (Cut Off Or Knock Off Clip Head)

Courtesy of BMW OF NORTH AMERICA, INC.

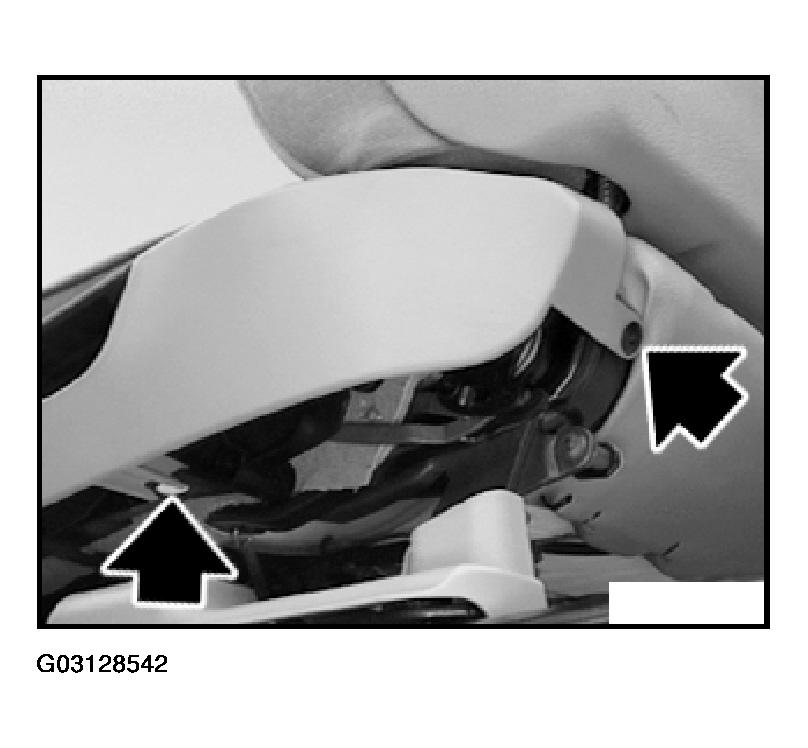

Loosen rear clips.

Fig 3: Loosing Rear Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out the rear plate and remove it over the operating levers.

Model with lumbar supports:

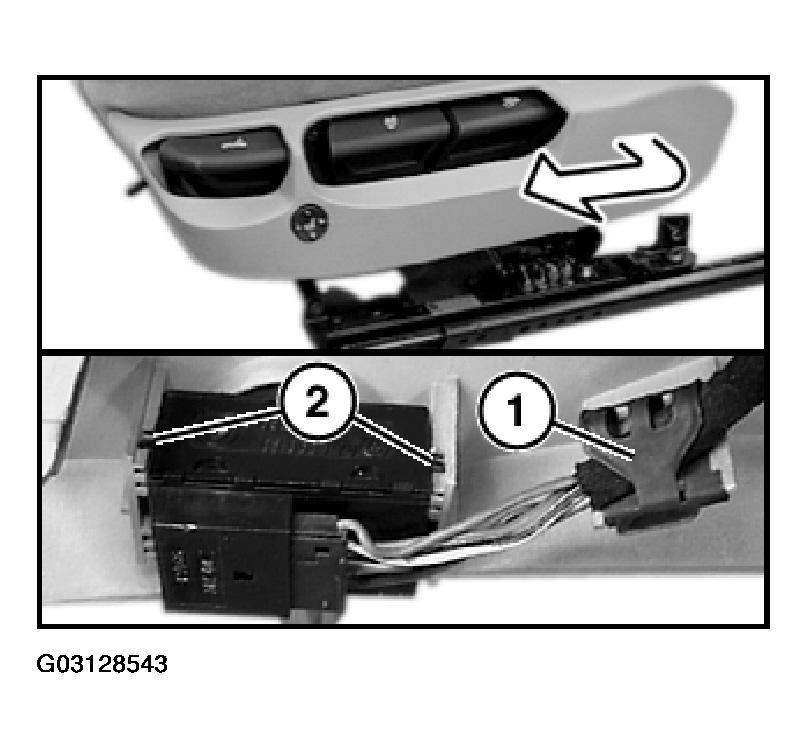

Lift the cable out of the retainer (1) if necessary.

If necessary press detents (2) down and press upwards to remove the switch.

Fig 4: Lifting Cable Out Of The Retainer

Courtesy of BMW OF NORTH AMERICA, INC.
