52 14 380 Removing and installing/replacing head restraint support on front seat (normal/electric), left or right

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear panel on front seat backrest,

refer to 52 13 198 REMOVING AND INSTALLING / REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/MANUAL) .

Move head restraint downwards to max. extent.

Remove front head restraint,

refer to 52 14 390 REMOVING AND INSTALLING OR REPLACING FRONT LEFT OR RIGHT HEAD RESTRAINTS (STANDARD/ELECTRIC) .

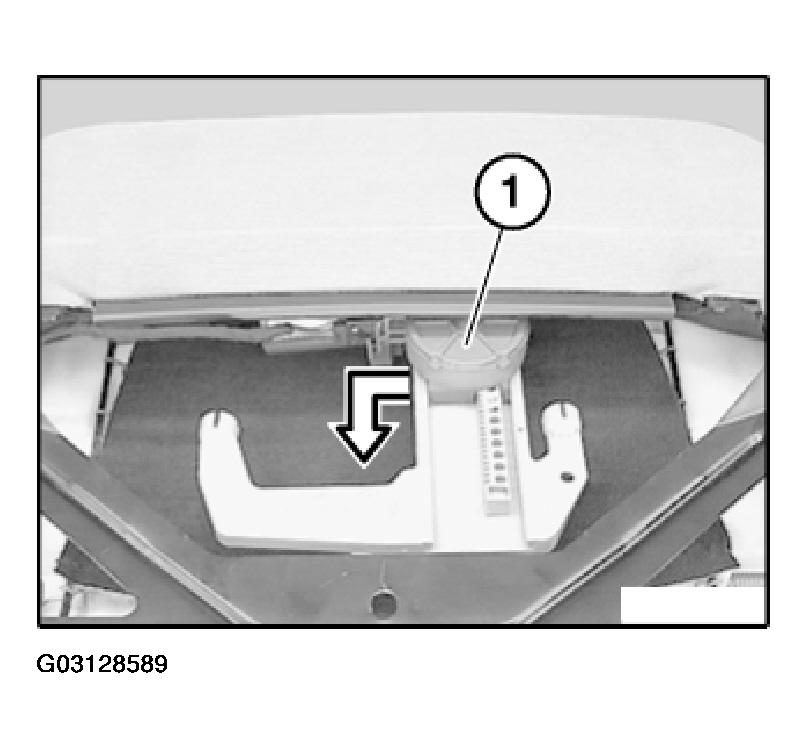

Snap out head restraint support (1) to left and remove downwards.

Fig 1: Removing Downwards

Courtesy of BMW OF NORTH AMERICA, INC.

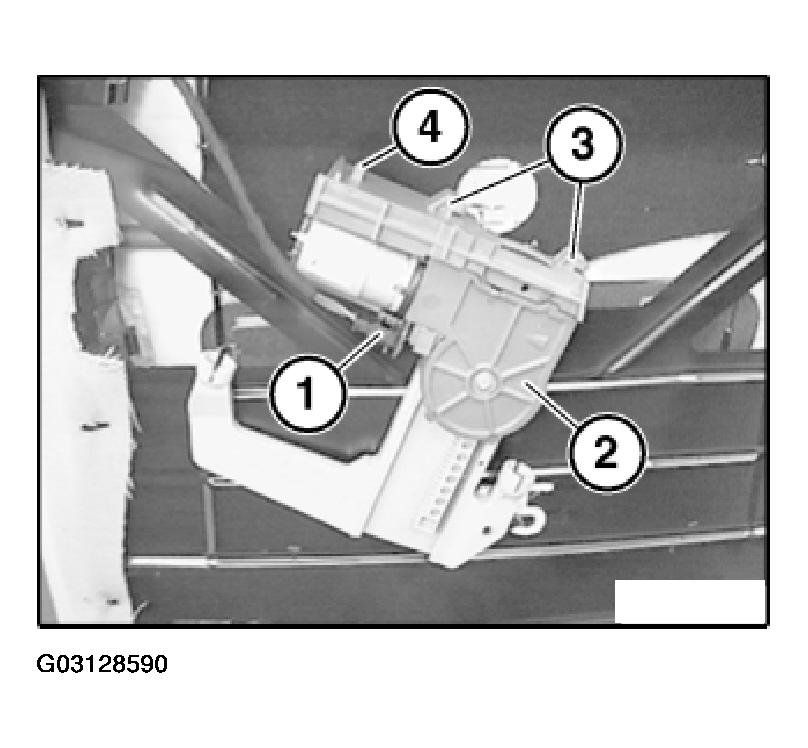

Disconnect plug connection (1) and remove head restraint support (2).

Installation:

Locks (3) and guide (4) must not be damaged.

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

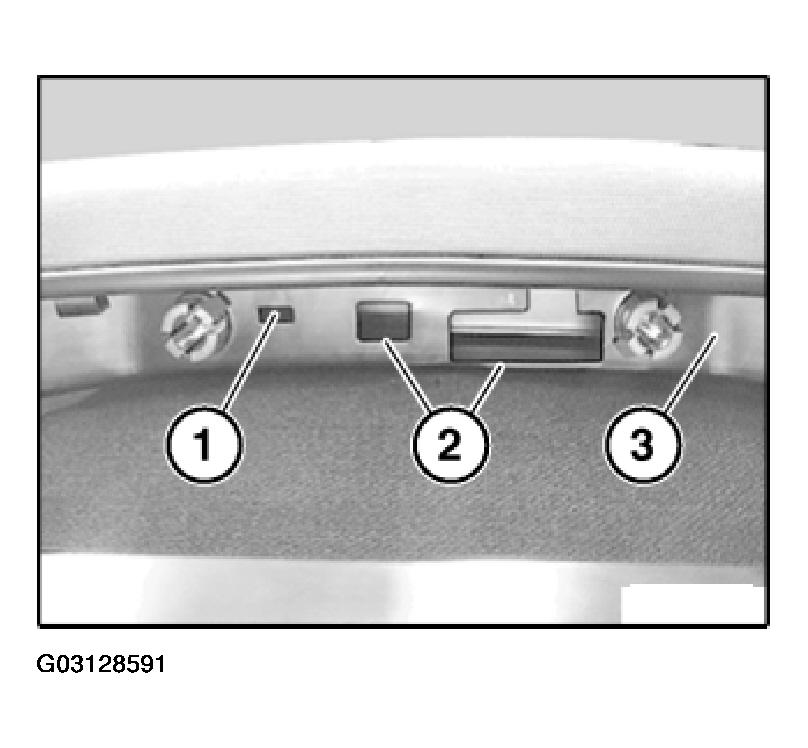

Installation:

Guide (1) and supports (2) on backrest frame (3) must not be damaged.

Fig 3: Installing Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.
