52 17 050 Replacing lumbar support cushion on left or right front seat (comfort)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove back-rest,

refer to 52 17 405 REPLACING BACK-REST COVER FOR FRONT SEAT (COMFORT) ON LEFT OR RIGHT SIDES

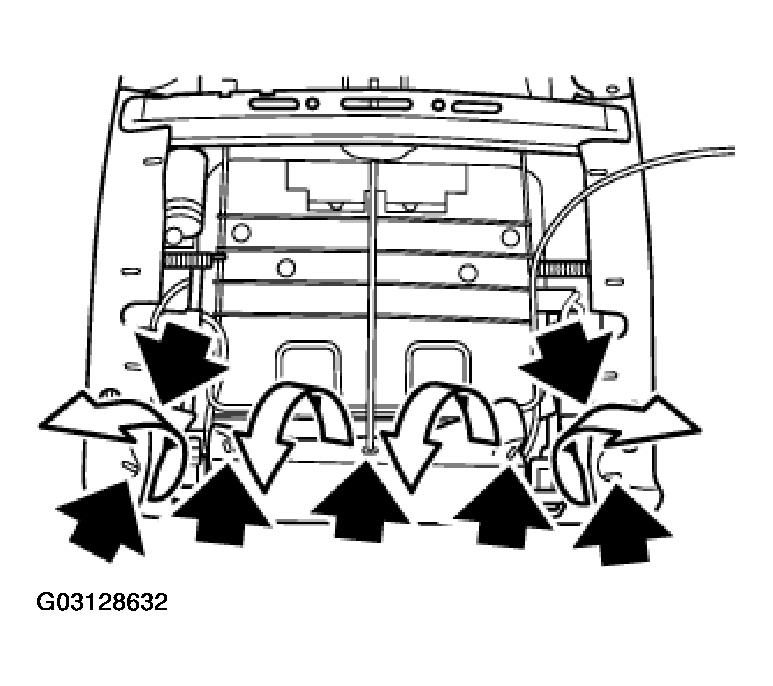

Remove bottom of cover from claw-type cover clips.

Fig 1: Removing Bottom Of Cover From Claw-Type Cover Clips

Courtesy of BMW OF NORTH AMERICA, INC.

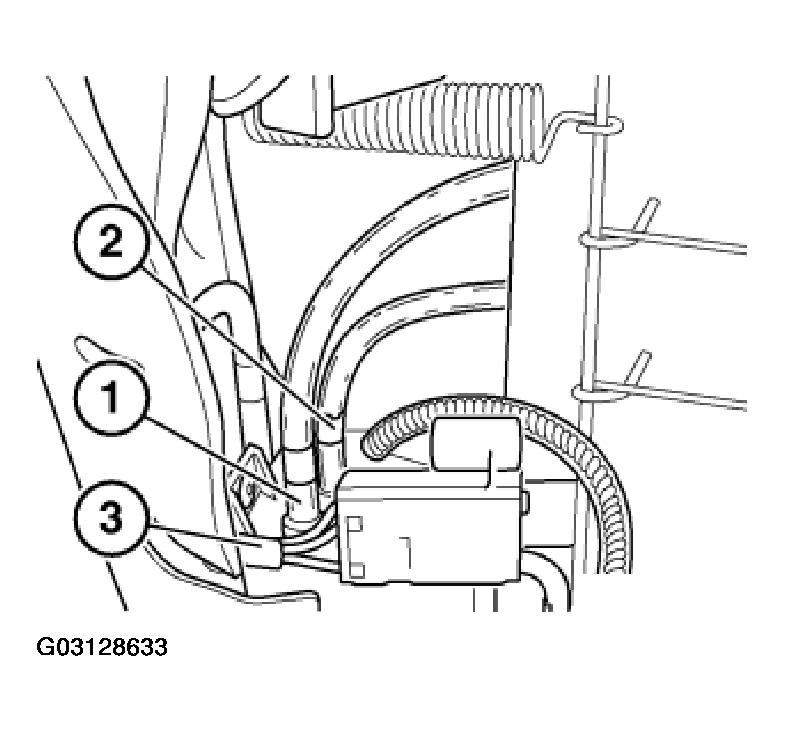

Remove hose (1) (red - large cushion) and hose (2) (blue - small cushion) from control unit (3).

NOTE: If seat fixed in position, slightly heat hose, housing (valve block) must not be unclipped (leaks). If it is unclipped, release screws and clip together housing.

Fig 2: Removing Hose Disassembling (Red - Large Cushion) & Hose

Courtesy of BMW OF NORTH AMERICA, INC.

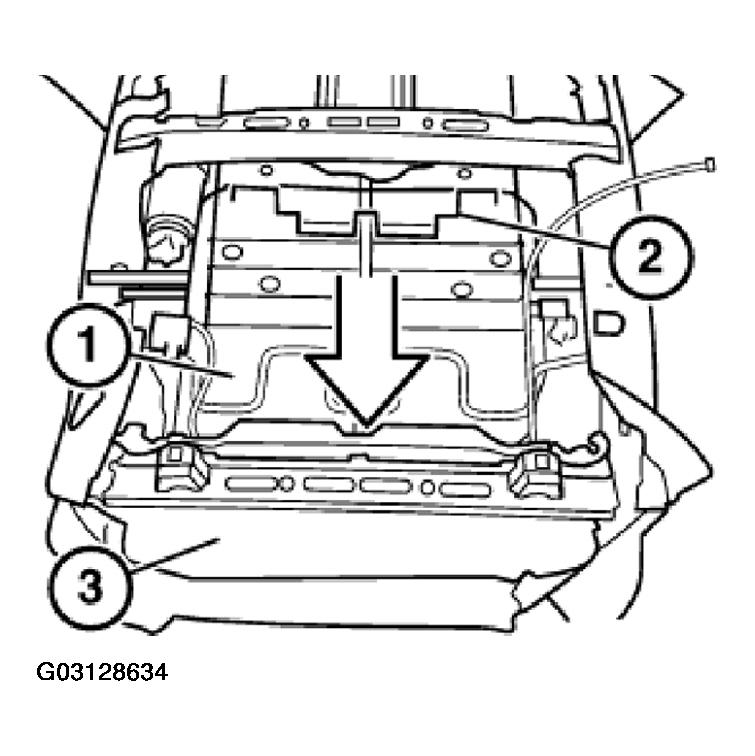

Disconnect top of lumbar support cushion (1) from spring wire (2). Press support (3) downwards and remove lumbar support cushion.

Fig 3: Disconnecting Top Of Lumbar Support Cushion From Spring Wire

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

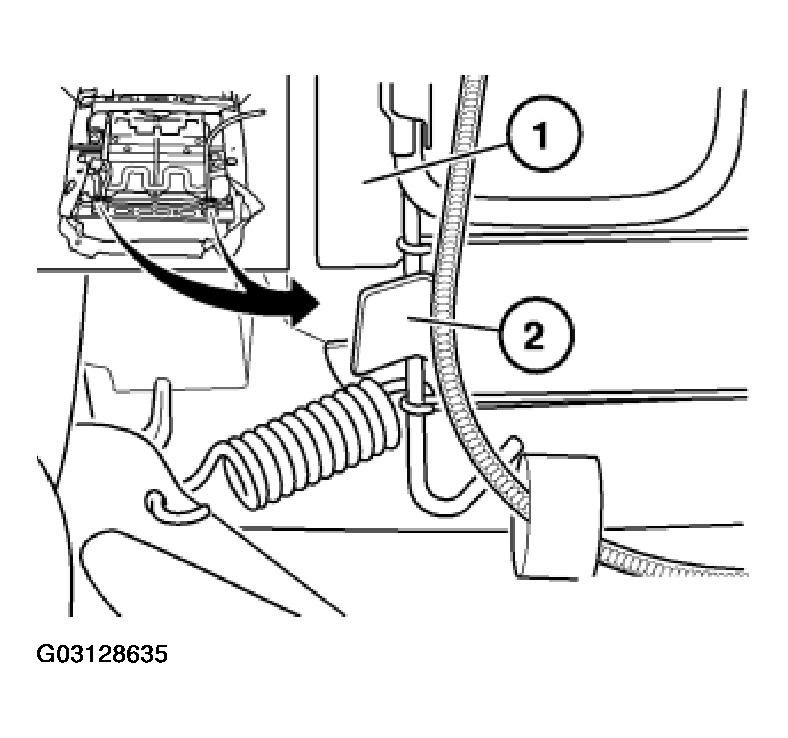

Attach lumbar support cushion (1) at bottom left/ right with recesses (2) above the spring.

Fig 4: Attaching Lumbar Support Cushion At Bottom Left/ Right

Courtesy of BMW OF NORTH AMERICA, INC.
