52 17 010 Removing and installing or replacing both seat rails on left or right front seat (comfort)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front seat,

refer to 52 17 000 REMOVING AND INSTALLING FRONT SEAT (COMFORT)

Remove seatbelt tensioner. See SEAT BELT PRETENSIONERS

Remove hose from lumbar support pump and disconnect connector.

NOTE: Brace hose connection on lumbar support pump with pincers (risk of damaging lumbar support pump).

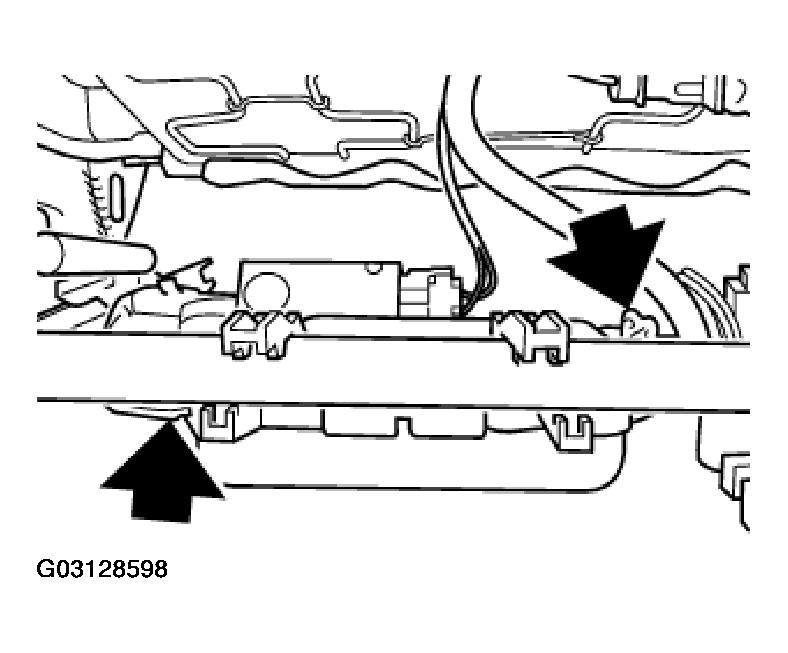

Fig 1: Removing Hose From Lumbar Support Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

If necessary, cut through cable tie (1).

Unfasten detent (2). Twist lumbar support pump (3) downwards and pull backwards to remove.

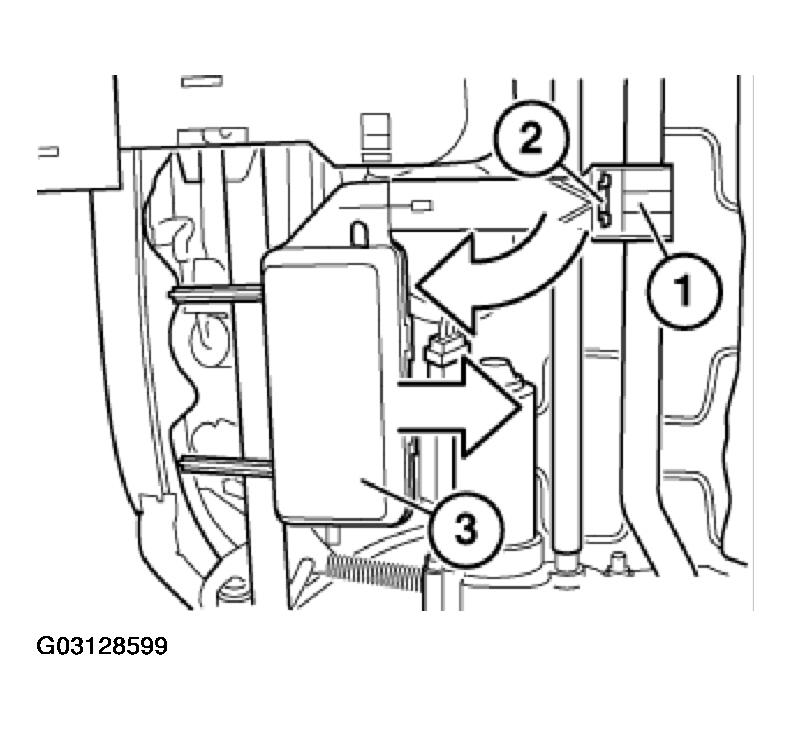

Fig 2: Unfastening Detent Twist Lumbar Support Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

Unfasten screw and pull interior finisher forwards to remove.

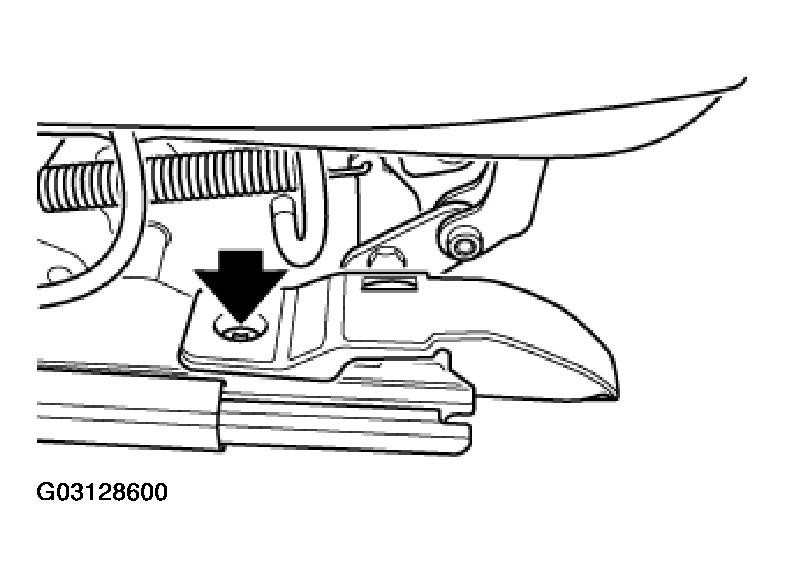

Fig 3: Unfastening Screw & Pull Interior Finisher

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

Unscrew screw. Lift outer finisher backwards and upwards and pull forwards to remove.

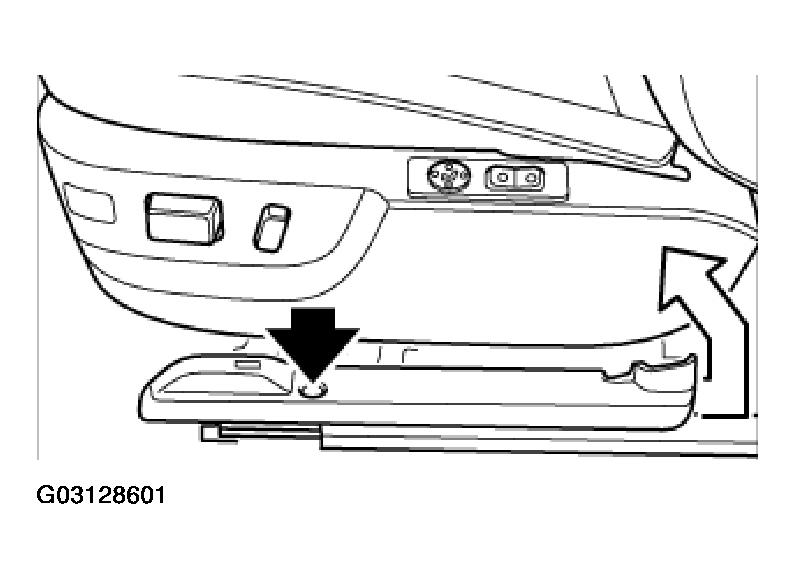

Fig 4: Lifting Outer Finisher Backwards & Upwards & Pull Forwards

Courtesy of BMW OF NORTH AMERICA, INC.

Remove connector (1), unlock detent lugs (2) and pull connector (3) backwards to remove. Remove wiring harness (4) from guide (5).

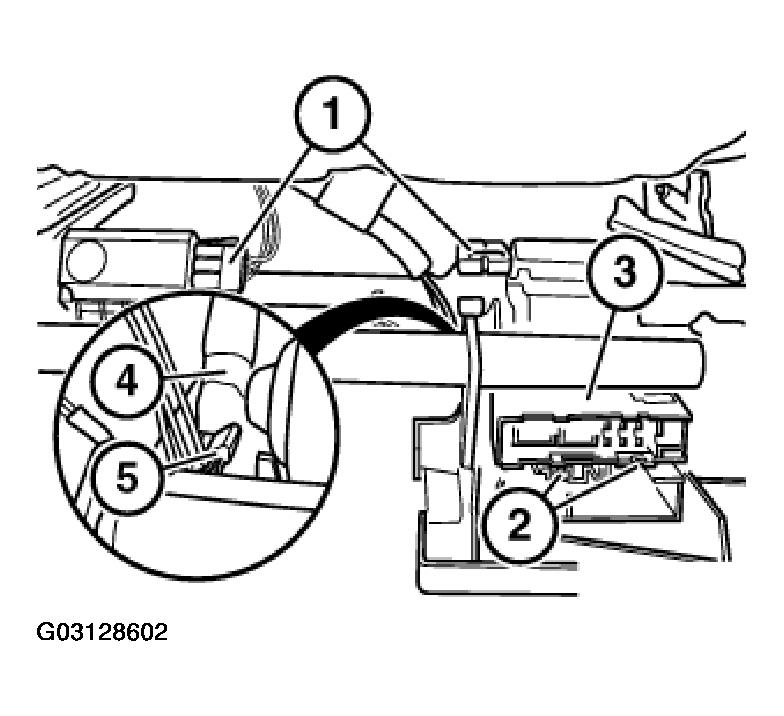

Fig 5: Removing Connector Unlock Detent Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and pull seat rails forwards to remove from seat frame.

Installation:

Replace screws (microencapsulation).

Tightening torque. Refer to SEATS - TIGHTENING TORQUES .

Front screws are longer than screws at back.

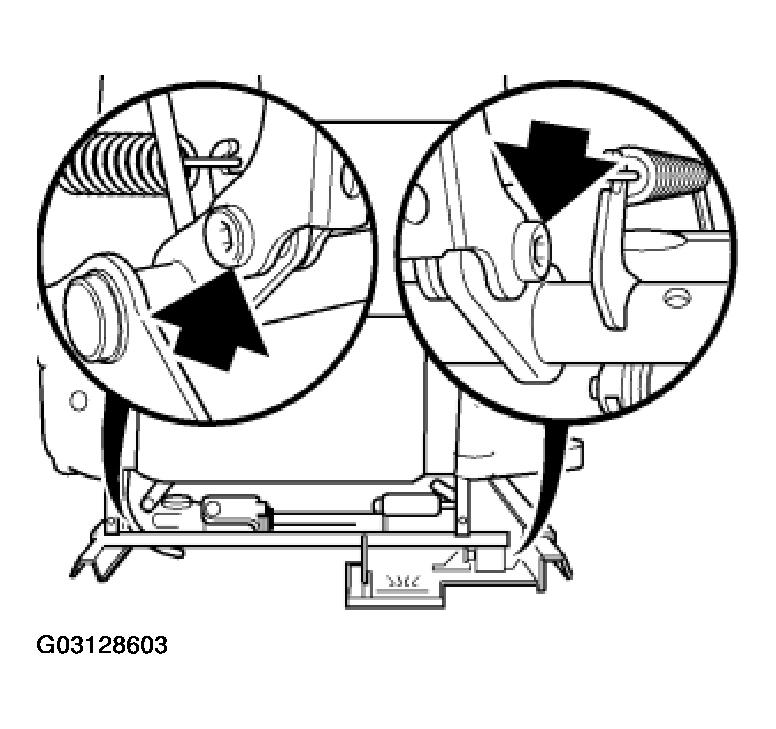

Fig 6: Removing From Seat Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and pull seat rails backwards to remove from seat frame.

Installation:

Replace screws (microencapsulation).

Tightening torque. Refer to SEATS - TIGHTENING TORQUES .

Screws at back are longer than screws at front.

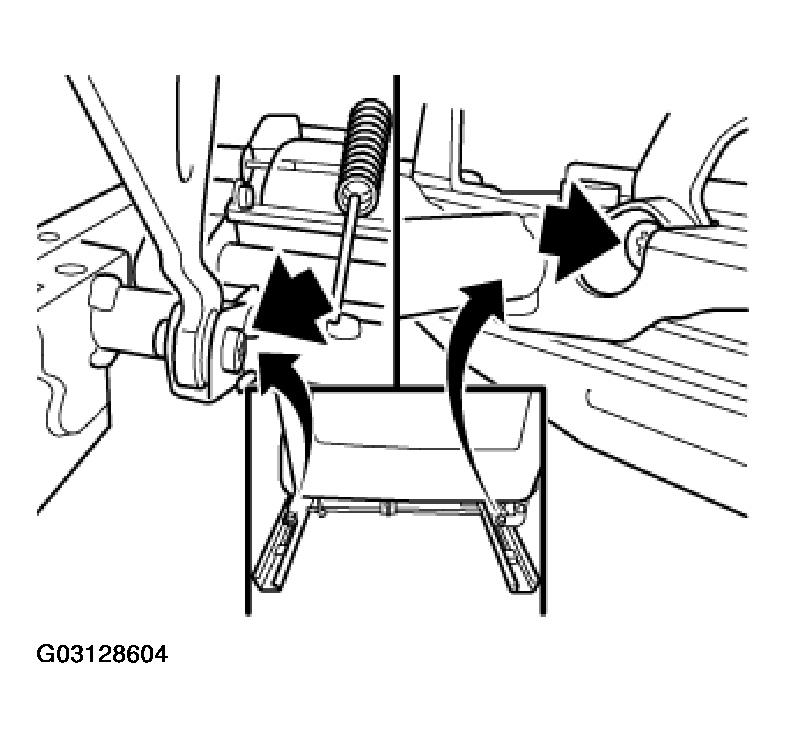

Fig 7: Unfastening Screws & Pull Seat Rails

Courtesy of BMW OF NORTH AMERICA, INC.

Front passenger's seat only:

Lift out detent (1) for left/ right longitudinal seat adjustment.

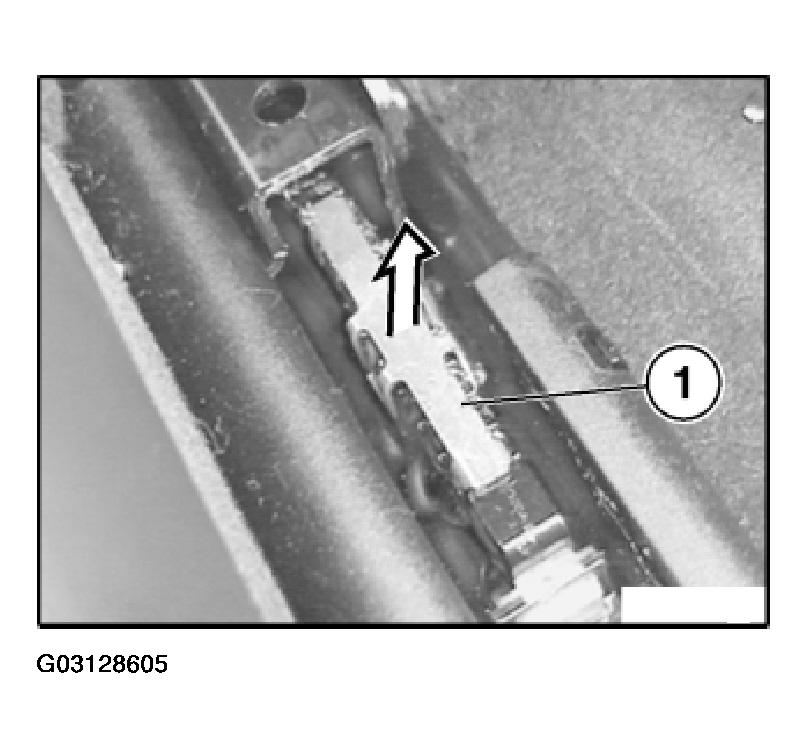

Fig 8: Lifting Out Detent Identifying For Left/ Right Longitudinal Seat

Courtesy of BMW OF NORTH AMERICA, INC.
