51 43 251 Removing and installing or replacing trim from rear left or right roof pillar

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Lift interior light out from side of C pillar trim panel.

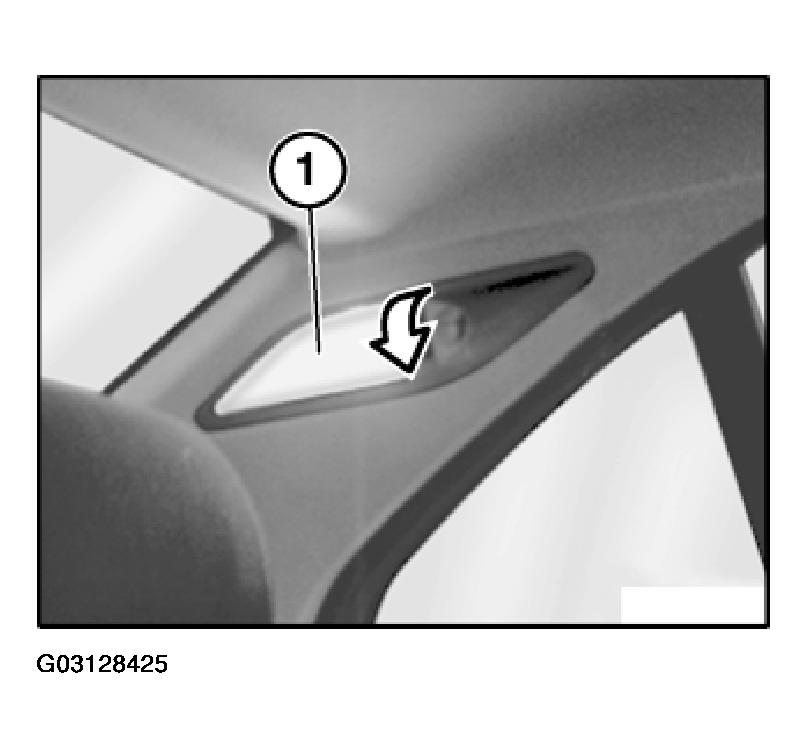

Fig 1: Lifting Interior Light Out From Side Of C Pillar Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off connectors.

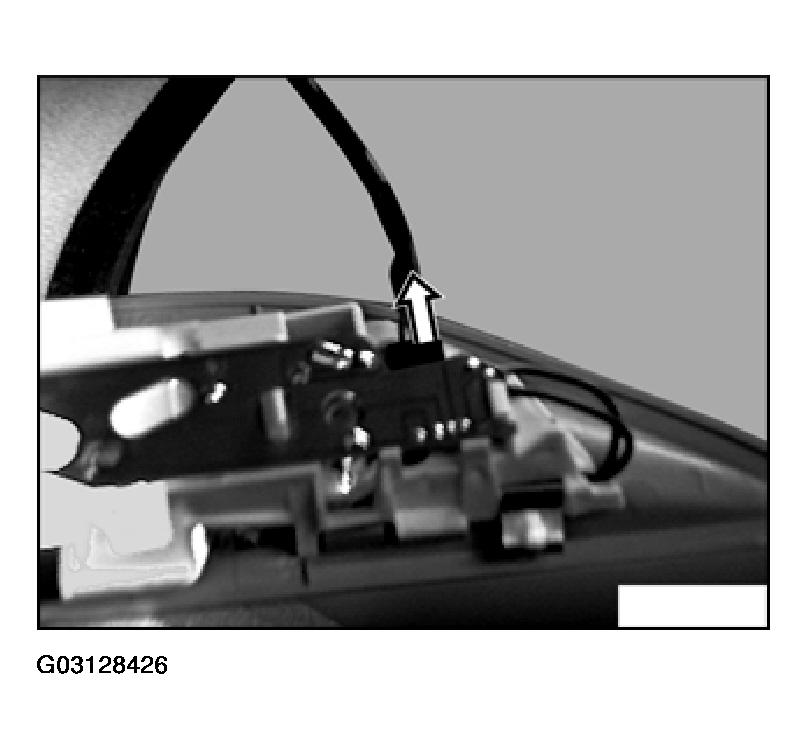

Fig 2: Pulling Off Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Pull trim upwards to unclip then inwards and upwards to remove.

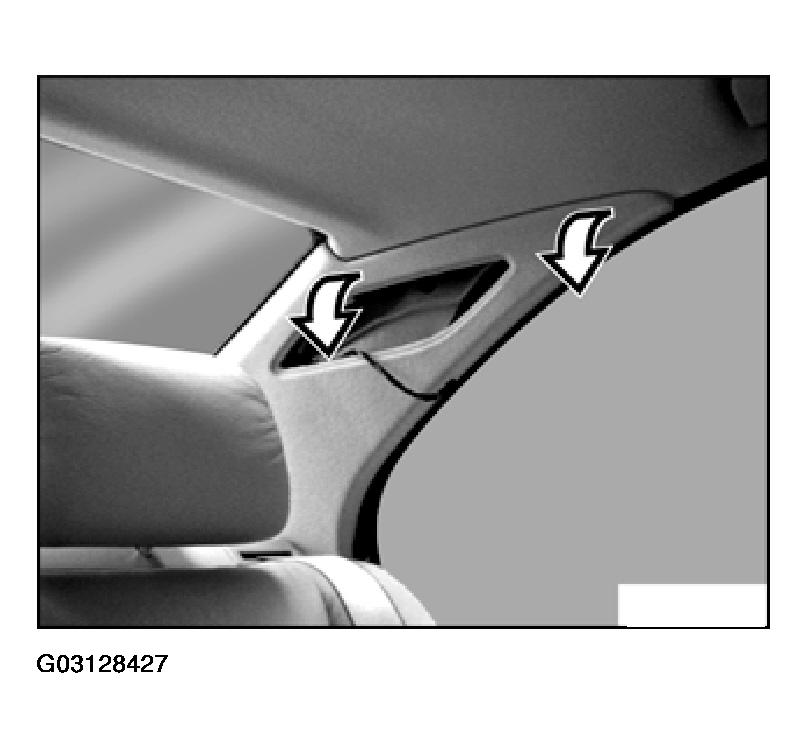

Fig 3: Pulling Trim Upwards To Unclip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace damaged clips.

Only replace:

Remove insulating mat and cement to new trim panel.

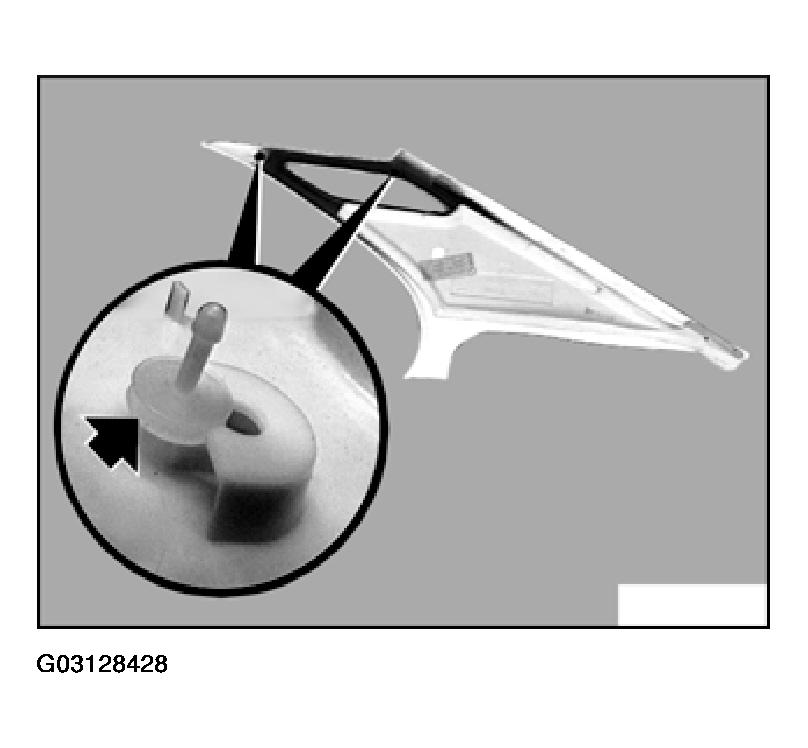

Fig 4: Removing Insulating Mat

Courtesy of BMW OF NORTH AMERICA, INC.
