51 43 148 Removing and installing or replacing trim on left or right door column (top)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

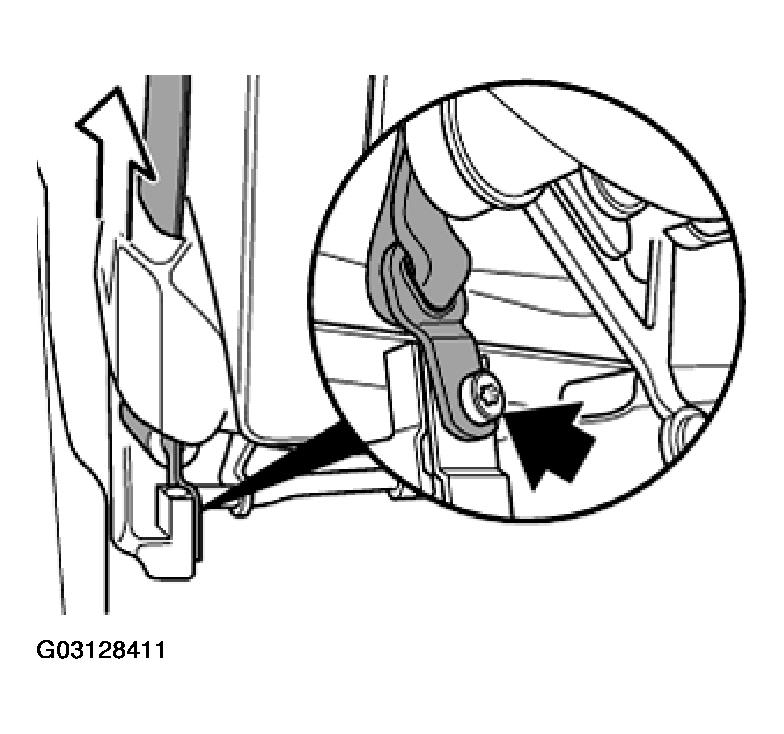

Unfasten seatbelt screw on front seat.

Installation:

Tightening torque. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 1: Unfastening Seatbelt Screw On Front Seat

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: On the version from 9/97, the trim panel for door pillar (bottom) must be removed.

Version up to 9/97:

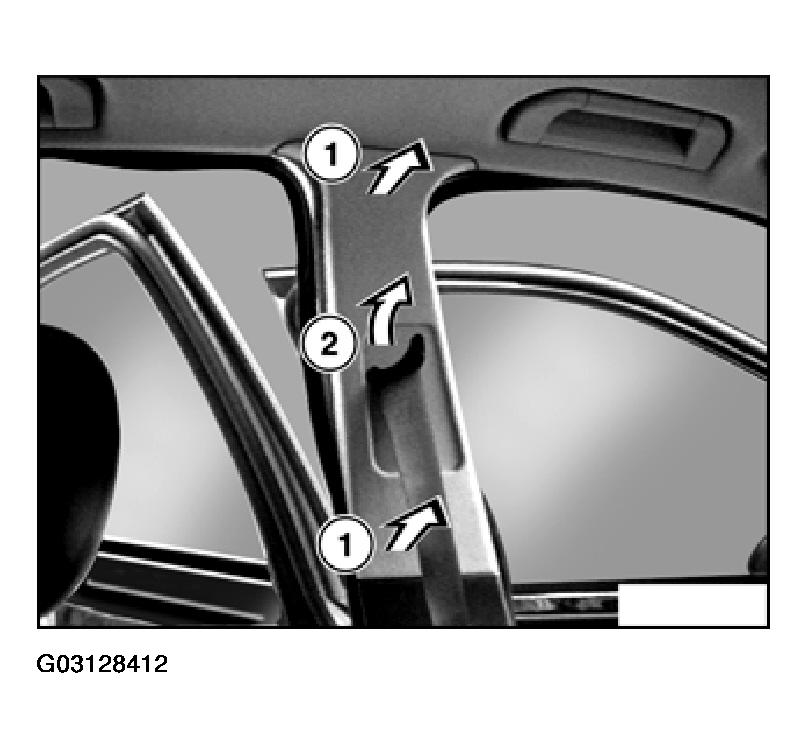

Pull mucket upwards beside door column trim panel.

Unclip trim panel for door pillar at top and bottom towards inside.
Pull out trim panel towards top.

Fig 2: Pulling Out Trim Panel Towards Top

Courtesy of BMW OF NORTH AMERICA, INC.

Version up to 9/97:

Installation:

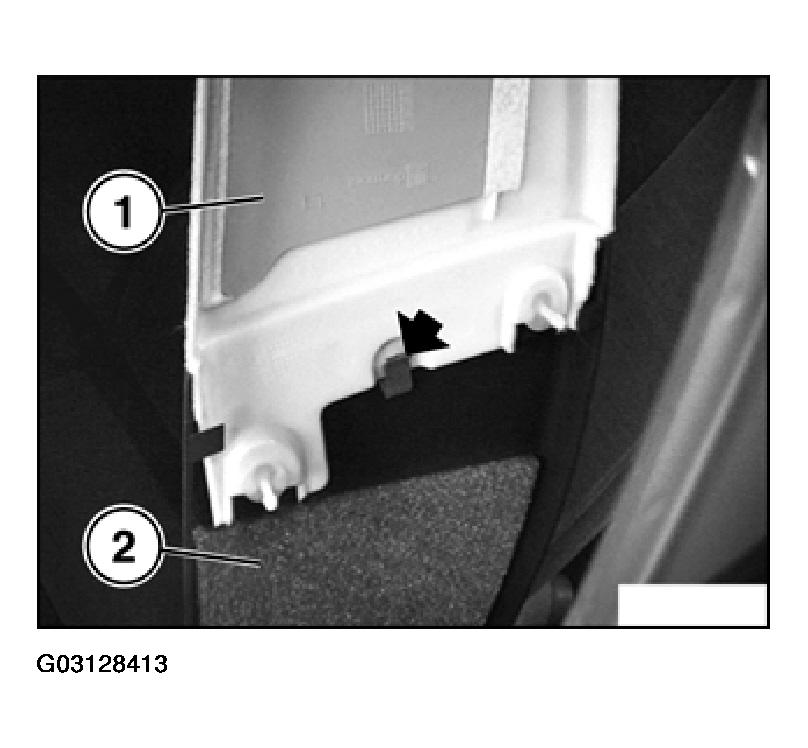

Insert trim for top of door column (1) in the trim for bottom of door column (2).

Fig 3: Inserting Trim For Top Of Door Column In Trim For Bottom Of Door Column

Courtesy of BMW OF NORTH AMERICA, INC.

Version up to 9/97:

Installation:

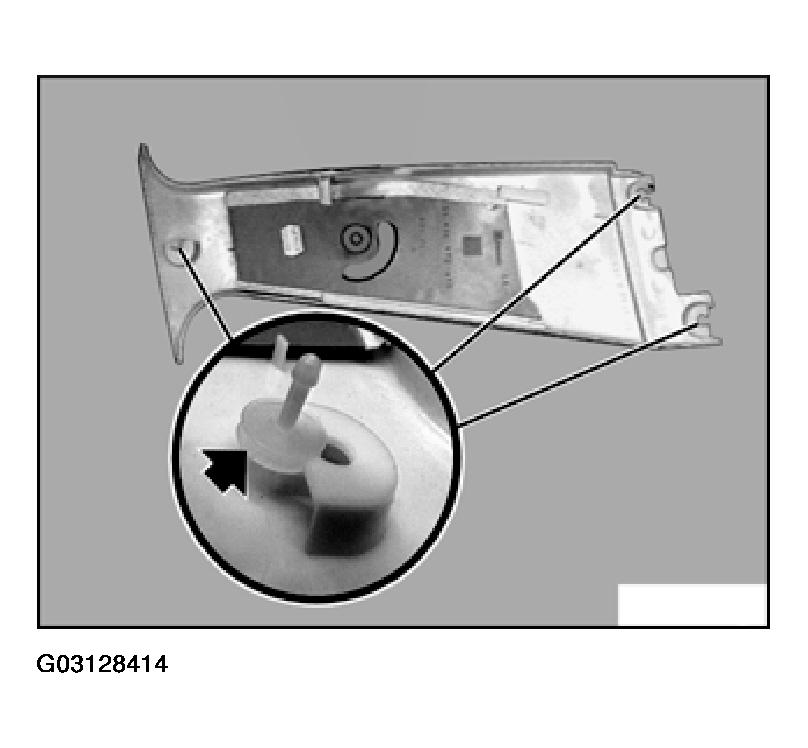

If necessary, replace damaged clips.

Fig 4: Replacing Damaged Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Version from 9/97:

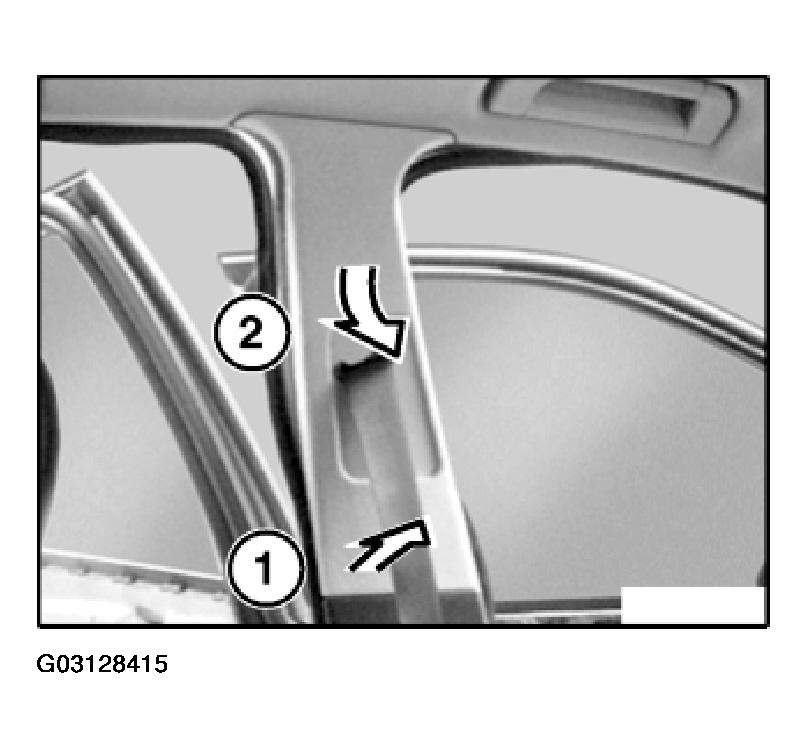

Remove trim panel for door pillar (bottom).

Remove mucket in area of trim for door pillar at top.

Unclip trim panel at bottom towards inside.
Detach out trim panel towards bottom.

Fig 5: Detaching Out Trim Panel Towards Bottom

Courtesy of BMW OF NORTH AMERICA, INC.

Version from 9/97:

Installation:

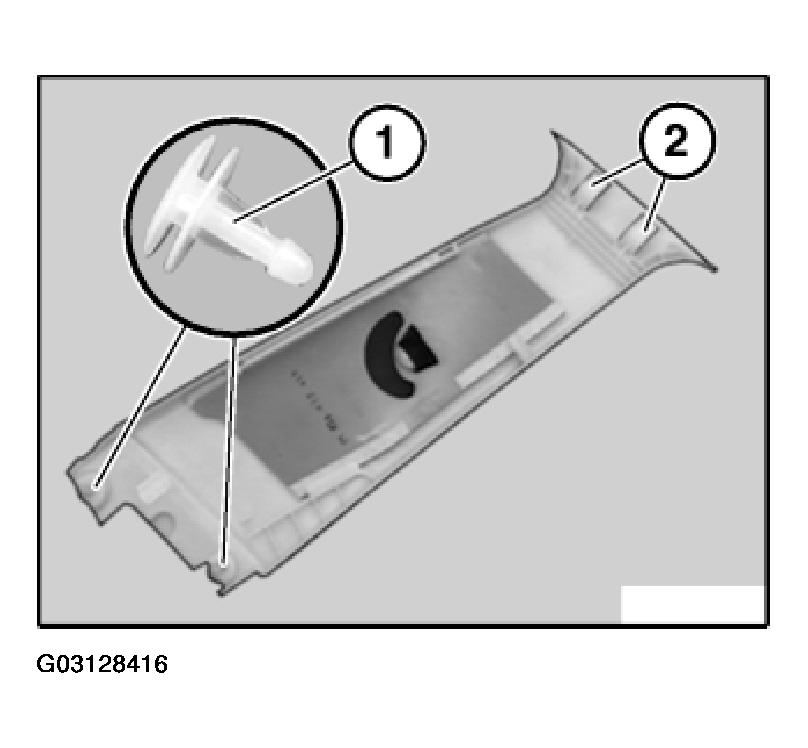

If necessary, replace defective clips (1).

Mounts (2) must not be damaged.

Fig 6: Replacing Defective Clips

Courtesy of BMW OF NORTH AMERICA, INC.
