51 34 380 Removing and installing/replacing decorative strip on rear door (top), left or right

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

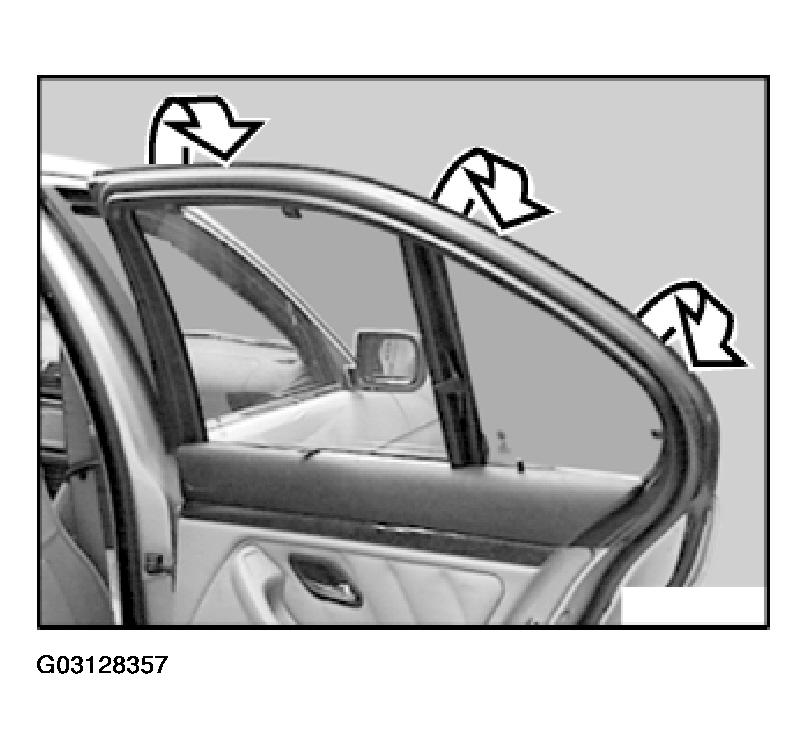

Partly remove rubber seal (1) at top.

Fig 1: Removing Rubber Seal

Courtesy of BMW OF NORTH AMERICA, INC.

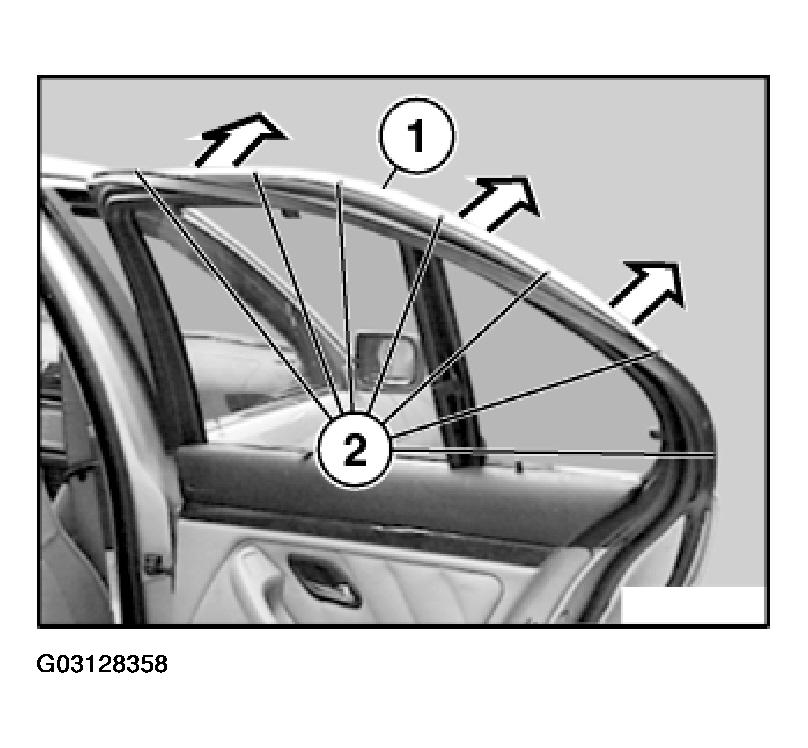

Pull out decorative strip (1) with clips (2).

Fig 2: Pulling Out Decorative Strip With Clips

Courtesy of BMW OF NORTH AMERICA, INC.

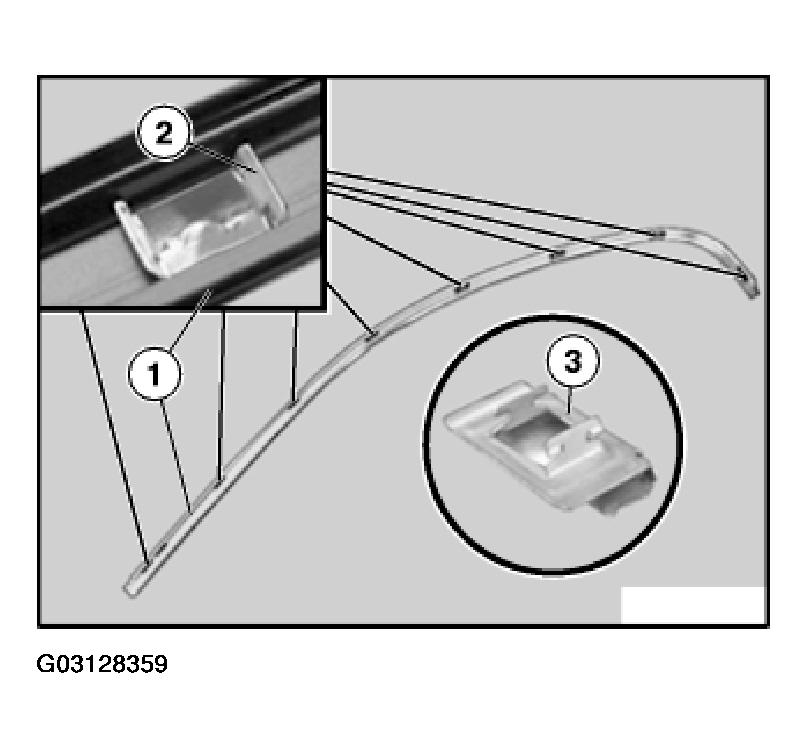

Remove faulty clips (2) from decorative strip (1) and replace with new clips (3).

Fig 3: Removing Faulty Clips From Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.
