51 34 160 Removing and installing/replacing cover on door window frame (rear door), left or right (Protection)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear left or right door trim, refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

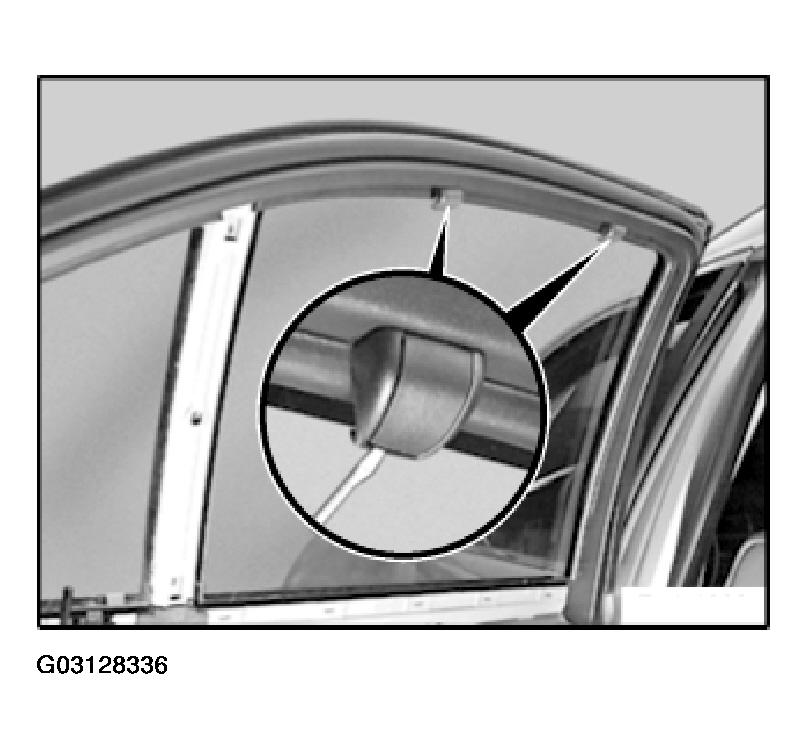

Open bracket for roller sun blind.

Fig 1: Opening Bracket For Roller Sun Blind

Courtesy of BMW OF NORTH AMERICA, INC.

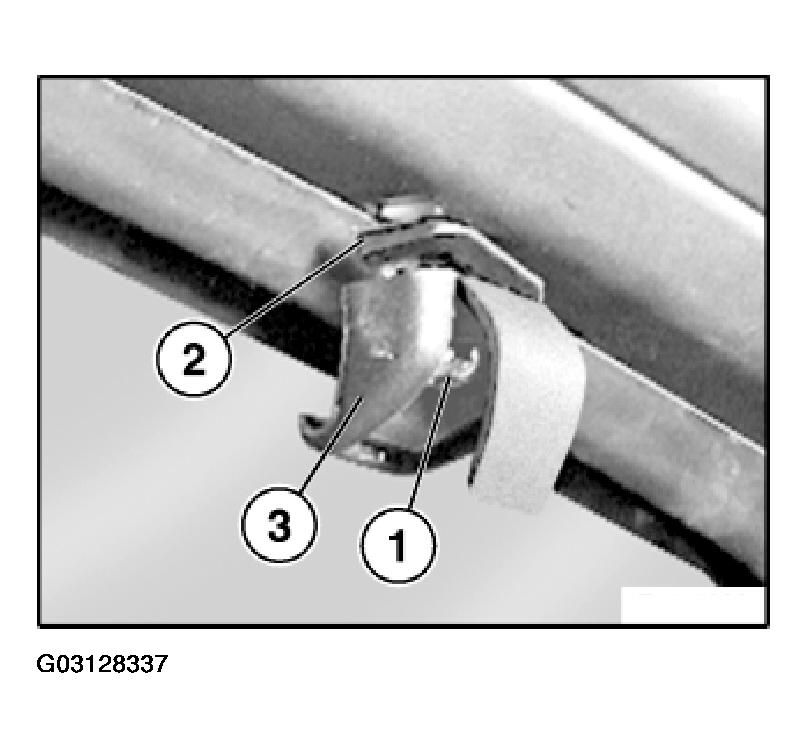

Unscrew bolt (1).

Installation:

Note installation sequence of adapter (2) and bracket (3).

Fig 2: Unscrewing Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

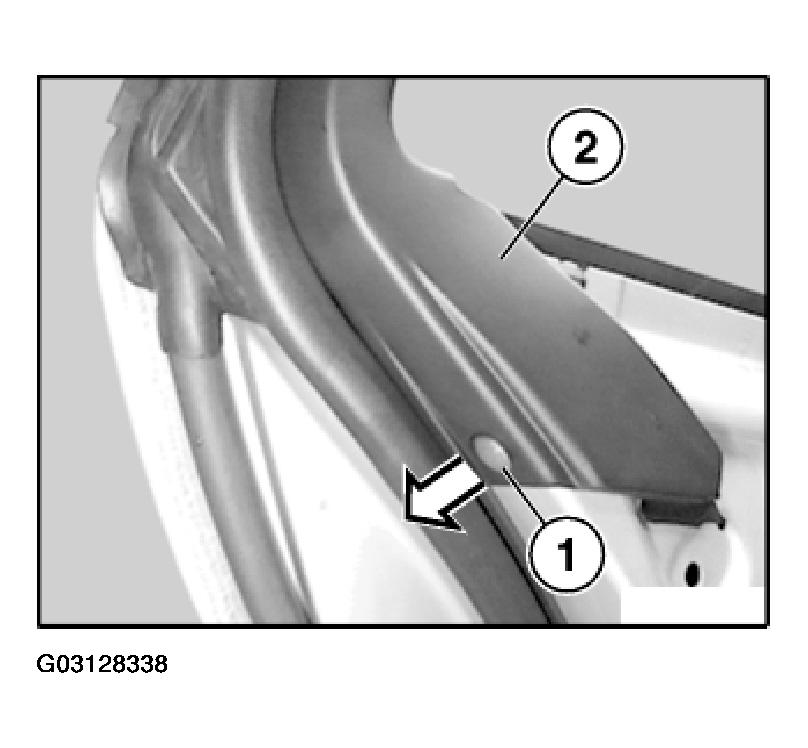

Lever rivet (1) out of cover (2).

Fig 3: Levering Rivet Out Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.

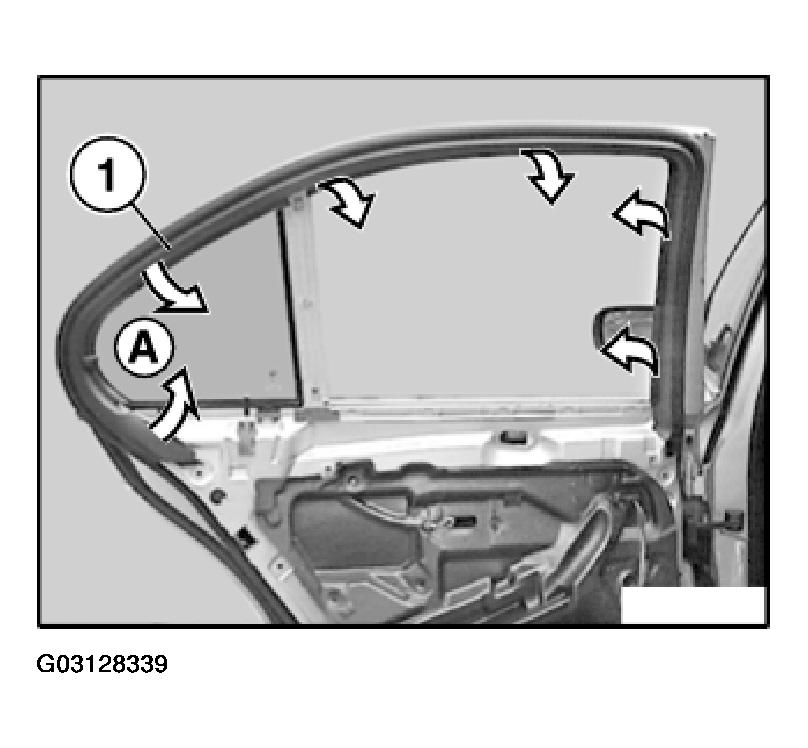

Lift out and remove cover (1) first at rear (A), top (B) and then front (C).

Fig 4: Lifting Out & Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.
