51 34 160 Removing and installing/replacing cover (trapping protection) on door window frame (rear door), inside left or right

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install cover on fixed door window of inside rear door, refer to 51 34... REMOVING AND INSTALLING/REPLACING COVER ON FIXED DOOR WINDOW OF REAR DOOR, INSIDE LEFT OR RIGHT

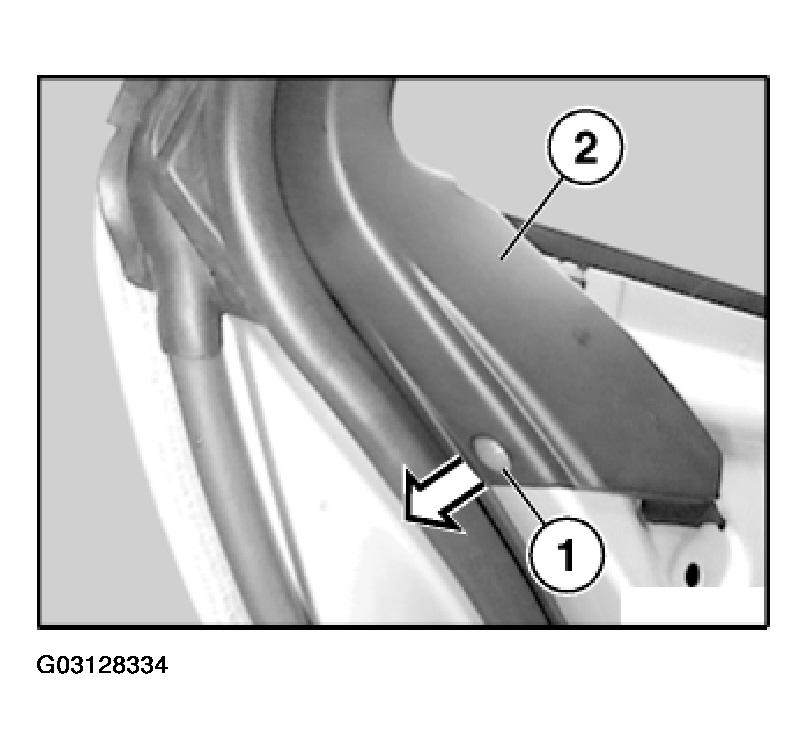

Lever rivet (1) out of cover (2).

Fig 1: Levering Rivet Out Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.

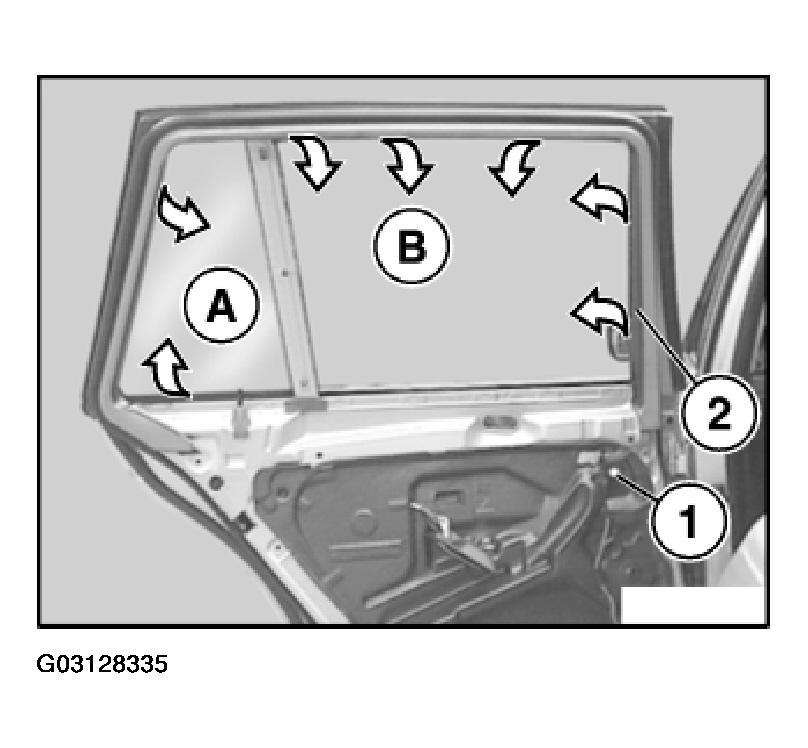

Disconnect connector (1).

Lever out cover (2) first at rear (A), then at top (B) and then at front (C) and remove.

Installation:

Check function.

Fig 2: Disconnecting Connector

Courtesy of BMW OF NORTH AMERICA, INC.
