51 42 001 Replacing left or right rear door trim

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing rear door trim, refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL

Pull wooden strip backwards to remove.

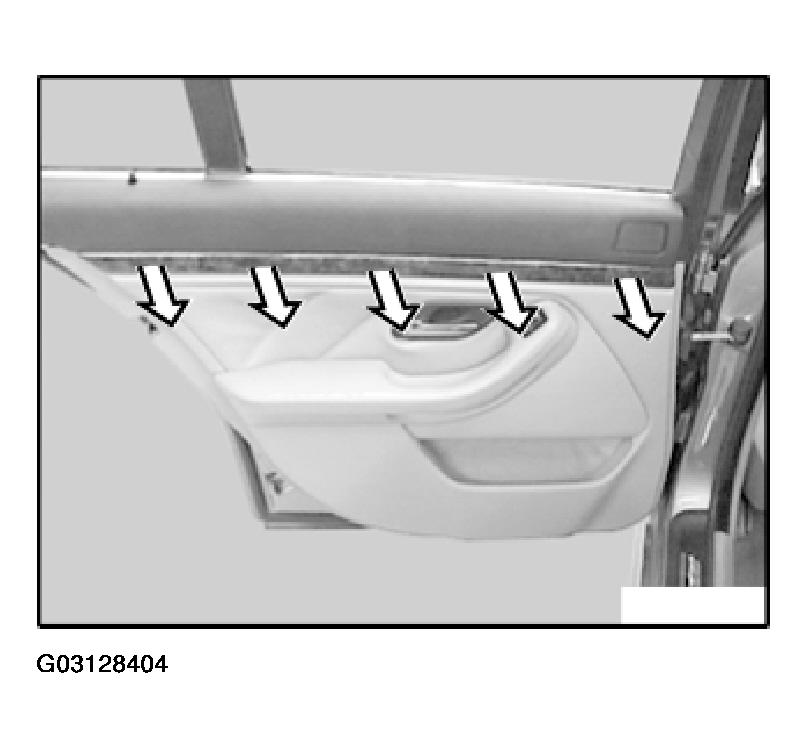

Fig 1: Pulling Wooden Strip Backwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace damaged clips and/or grommets for wooden strip.

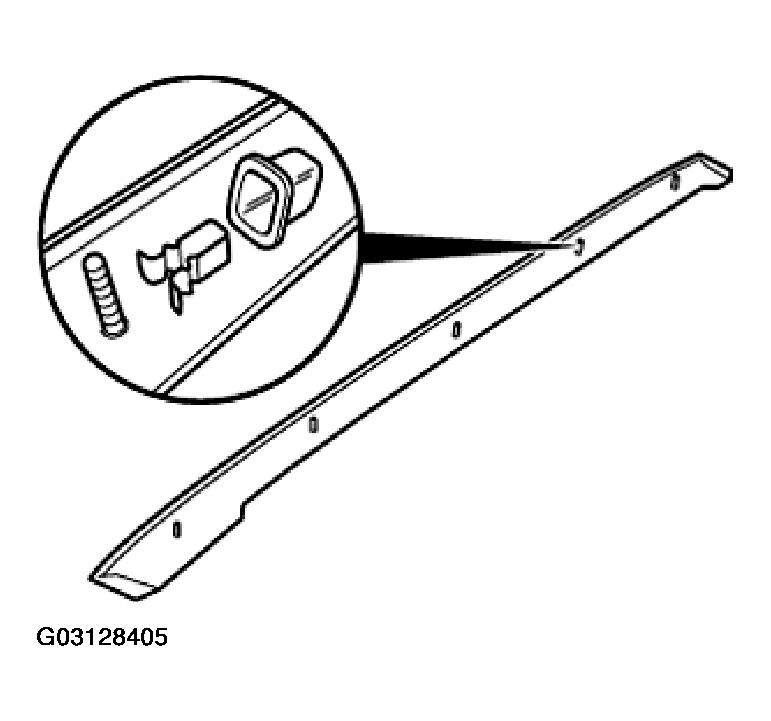

Fig 2: Replacing Damaged Clips &/Or Grommets For Wooden Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Version with loudspeaker:

If necessary, pull off retaining disks (1) and remove loudspeaker (2).

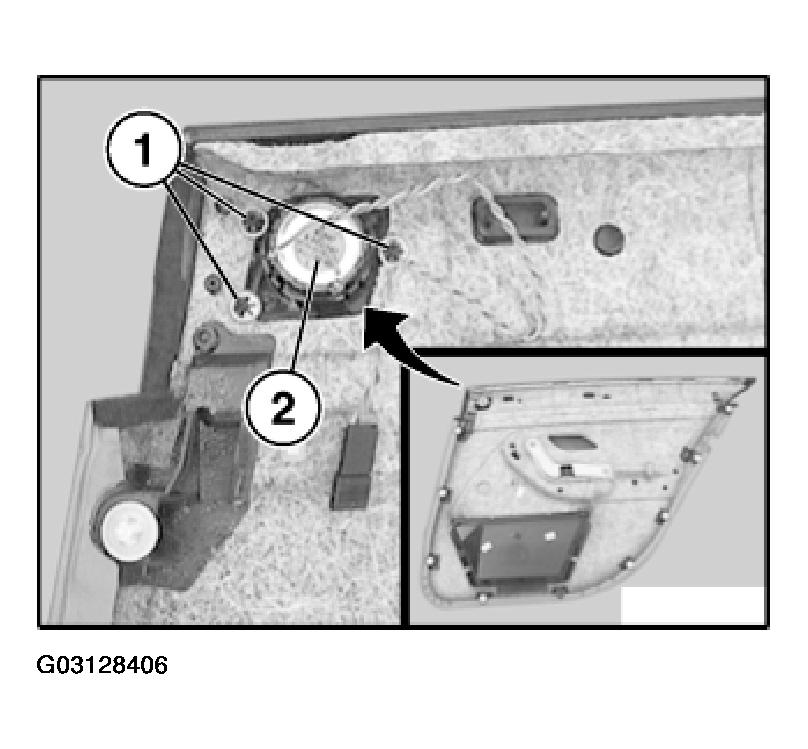

Fig 3: Removing Loudspeaker

Courtesy of BMW OF NORTH AMERICA, INC.
