51 22 330 Removing and installing/replacing window cavity cover strip on inside rear door

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear left or right door trim, refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

Beginning from front, raise clips with special tool 00 9 321 (folding leg).

Pull window cavity trim (beginning at front) up out of clips.

NOTE: The rear clip (1) cannot be removed due to windshield adhesive.

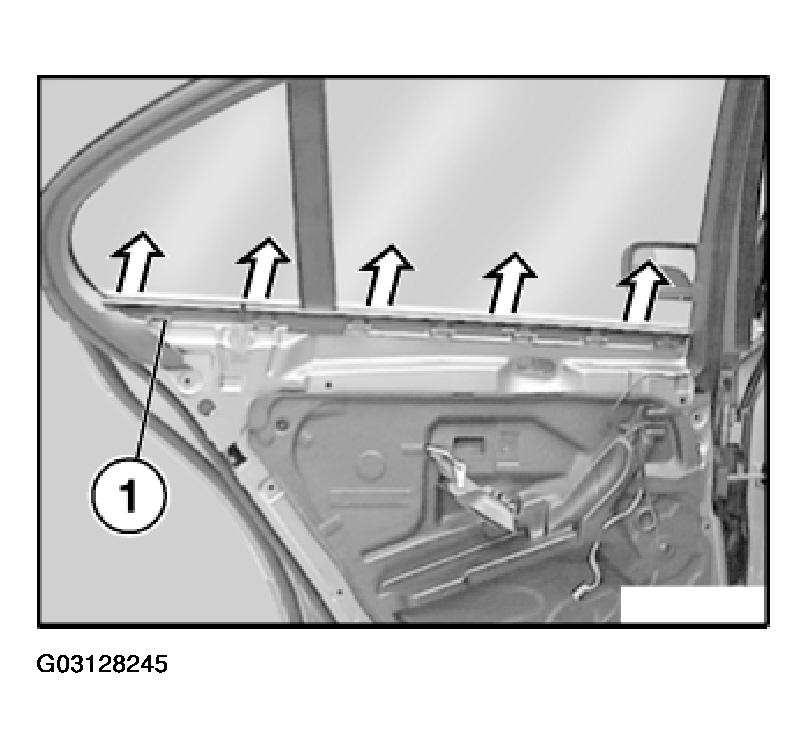

Fig 1: Pulling Window Cavity Trim Up Out Of Clips

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove clips (1) and attach to inner door panel.

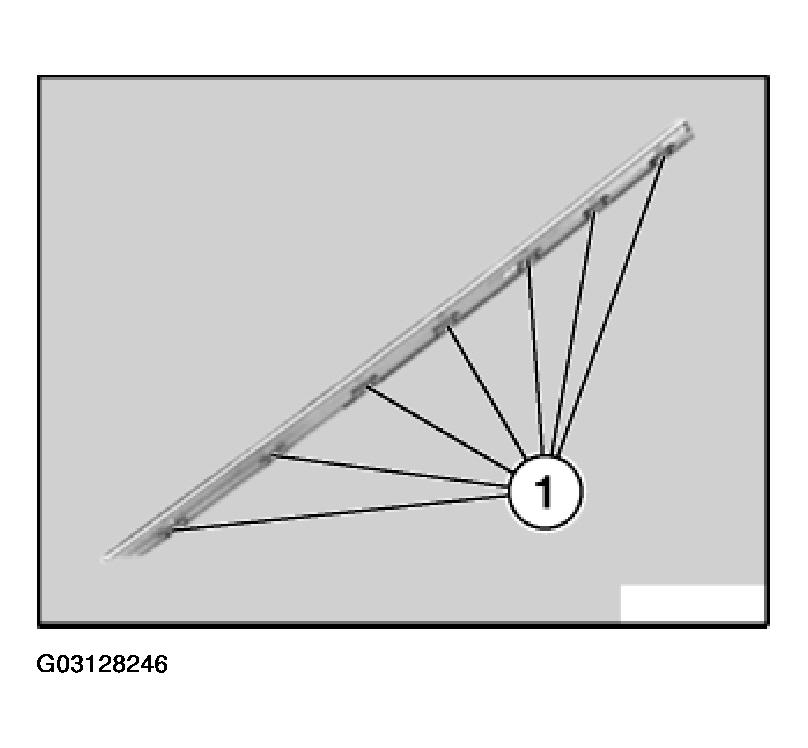

Fig 2: Removing Clips & Attaching To Inner Door Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, remove faulty clips (1) from inner door panel (2) and replace.

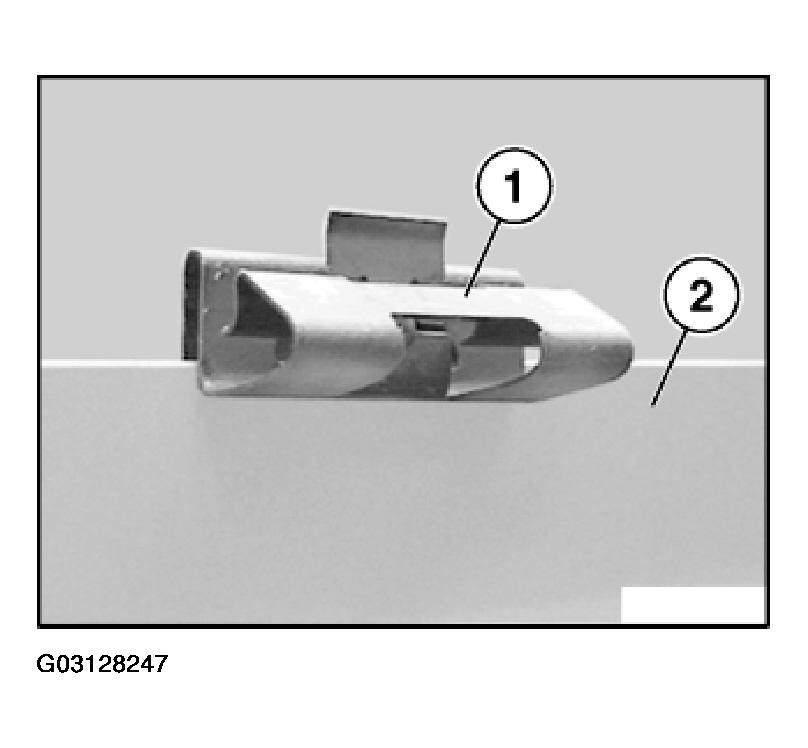

Fig 3: Removing Faulty Clips From Inner Door Panel

Courtesy of BMW OF NORTH AMERICA, INC.
