51 12 435 Replacing left or right body molding from sides of rear bumper

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove center body molding from rear bumper, refer to 51 12 432 REPLACING CENTRAL BODY MOLDING ON REAR BUMPER

Version without Park Distance Control (PDC):

First unclip back of body molding (1), then side (2) with special tool 00 9 321 (folding strut) and pull backwards at an angle to remove.

Installation:

Insert body molding at front, then clip into place.

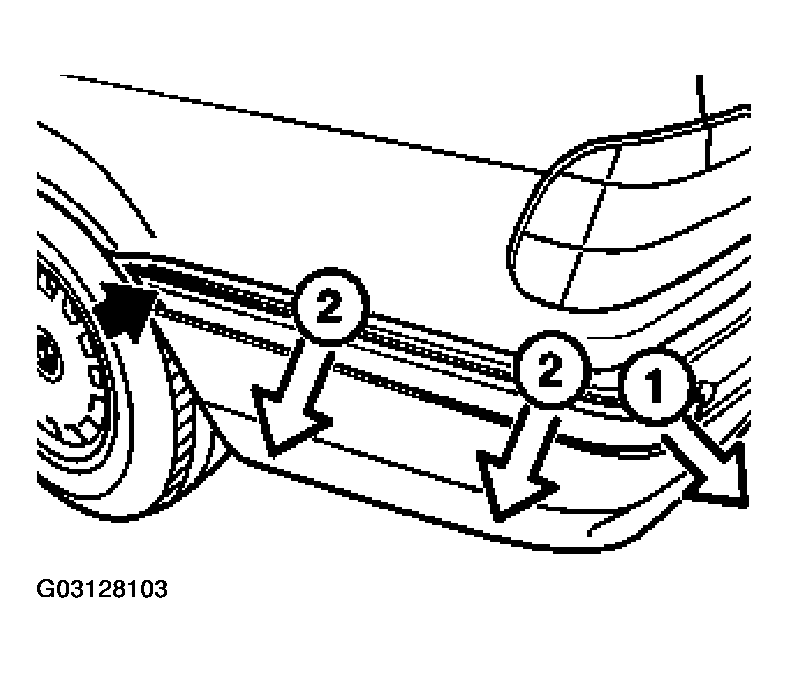

Fig 1: Unclipping Back Of Body Molding

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Park Distance Control (PDC):

Unclip body molding, unfasten ultrasonic converter and remove.

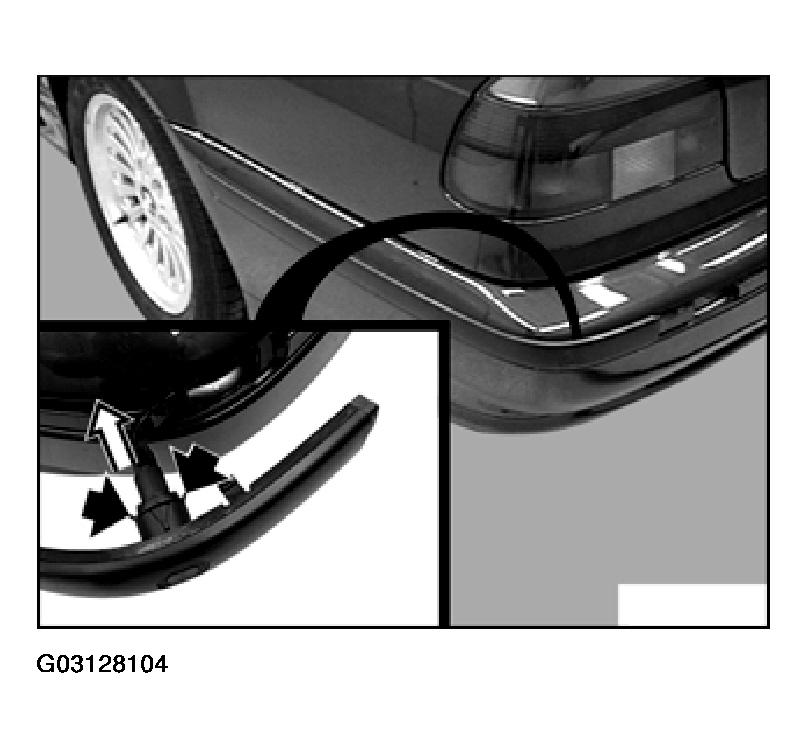

Fig 2: Unfastening Ultrasonic Converter

Courtesy of BMW OF NORTH AMERICA, INC.

Lift chrome strip (1) out of clips (2) in body molding and remove.

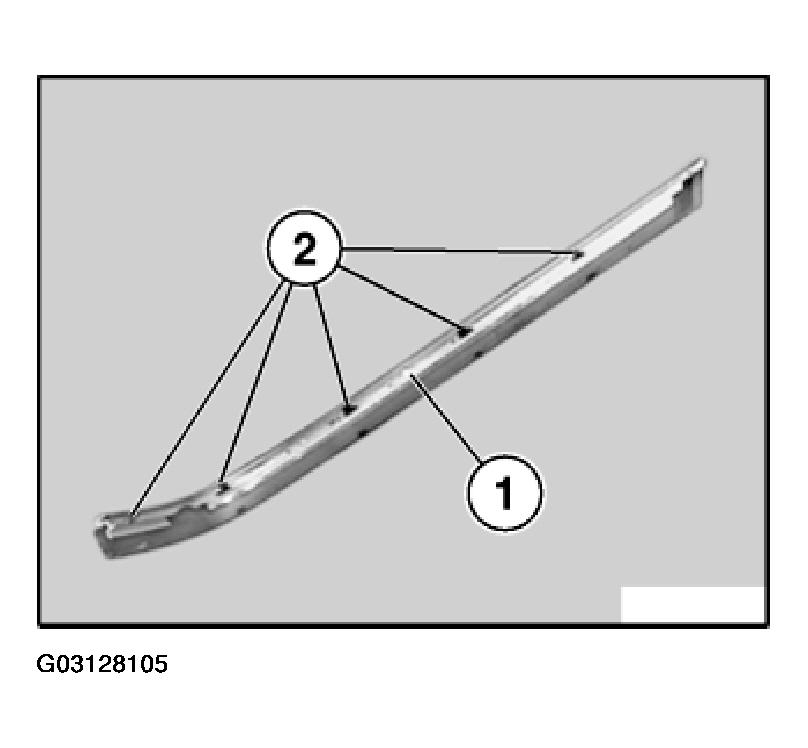

Fig 3: Lifting Chrome Strip Out Of Clips

Courtesy of BMW OF NORTH AMERICA, INC.
