51 12 001 Replacing rear bumper

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete rear bumper.

Remove protective strip for bumper at rear center.

Remove plastic insert (1).

Version with PDC:

If necessary, feed out cable(s) and ultrasonic converter(s) from bumper.

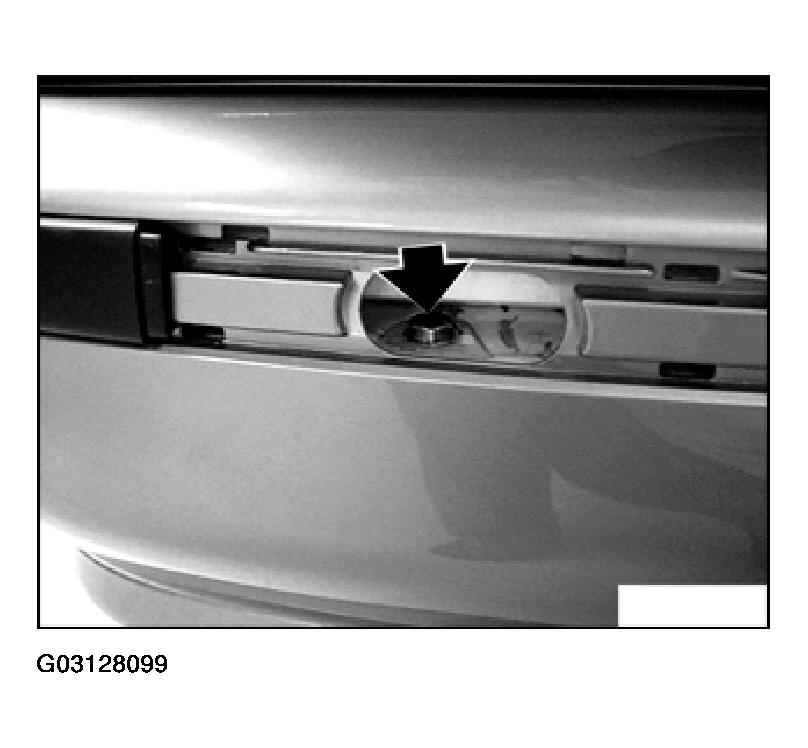

Fig 1: Removing Plastic Insert

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten expanding rivets (1) and remove heat shield (2).

Fig 2: Removing Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten expanding rivets (1) and remove center section of bumper (support beam).

Installation:

Place clips in water for a while.

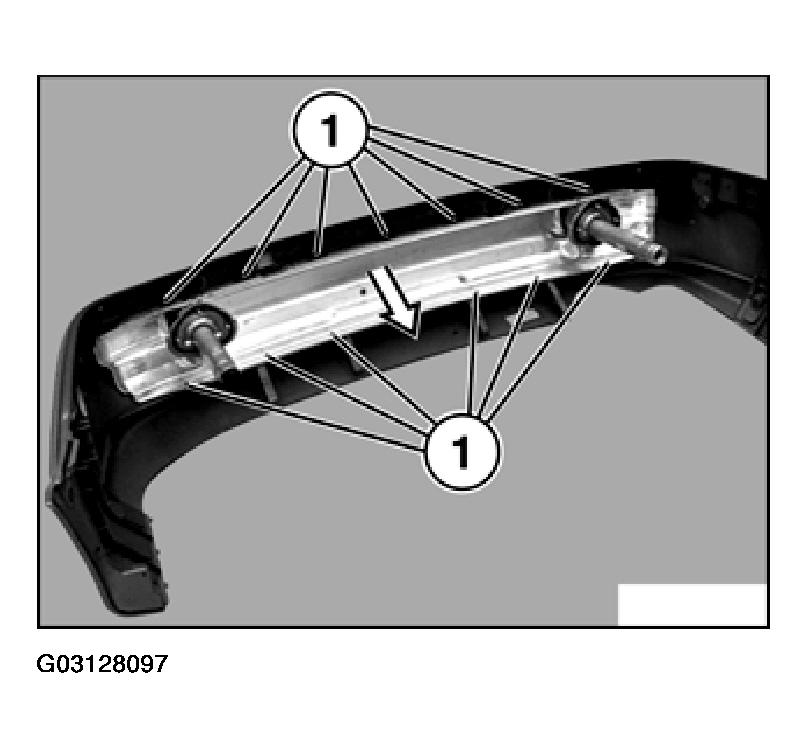

Fig 3: Removing Center Section Of Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

Only for replacing rear bumper trim

(51 12 157) and replacing rear bumper (51 12 001):

Remove rubbing strip for bumper at rear side left and right.

NOTE: The work for replacing rear bumper trim ("51 12 157)" ends here.

Unfasten screw and remove left/right shock absorber (1).

Installation:

If necessary, fit new seal (2) on shock absorber (1).

In addition on right side:

If necessary, fit new cover (3) on shock absorber (1).

Fig 4: Removing Left/Right Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After installing bumper, firmly tighten screw on shock absorber, left/right sides.

For tightening torque, refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 5: Tightening Screw On Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.
