51 46 050 Removing and installing/replacing finisher for top of rear apron.

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Open trunk lid and left/ right flaps.

Unfasten left/right nuts.

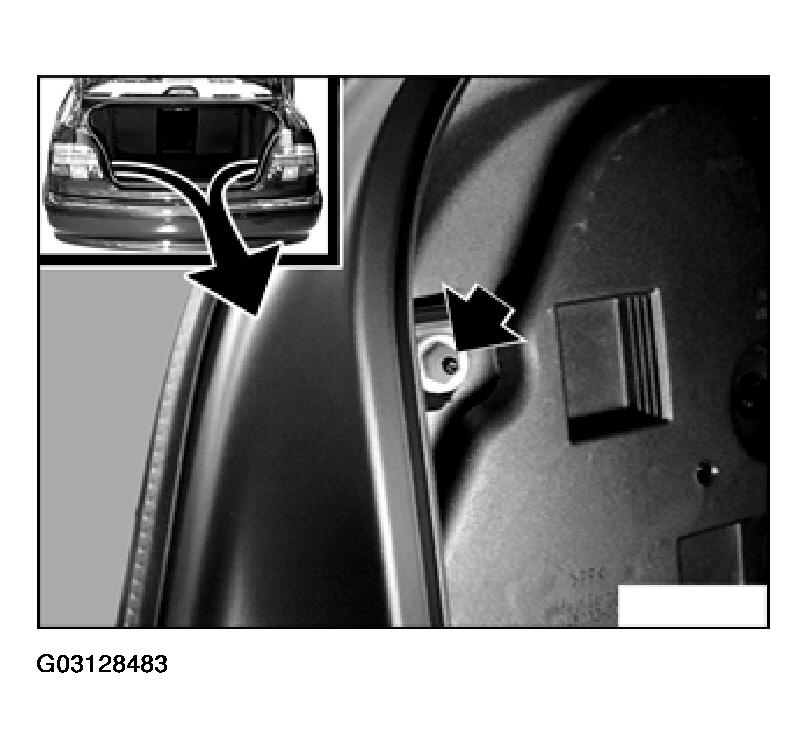

Fig 1: Unfastening Left/Right Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten expanding rivets and remove finisher strip.

Installation:

Insert guide spigot (1) on finisher into bottom of tail panel.

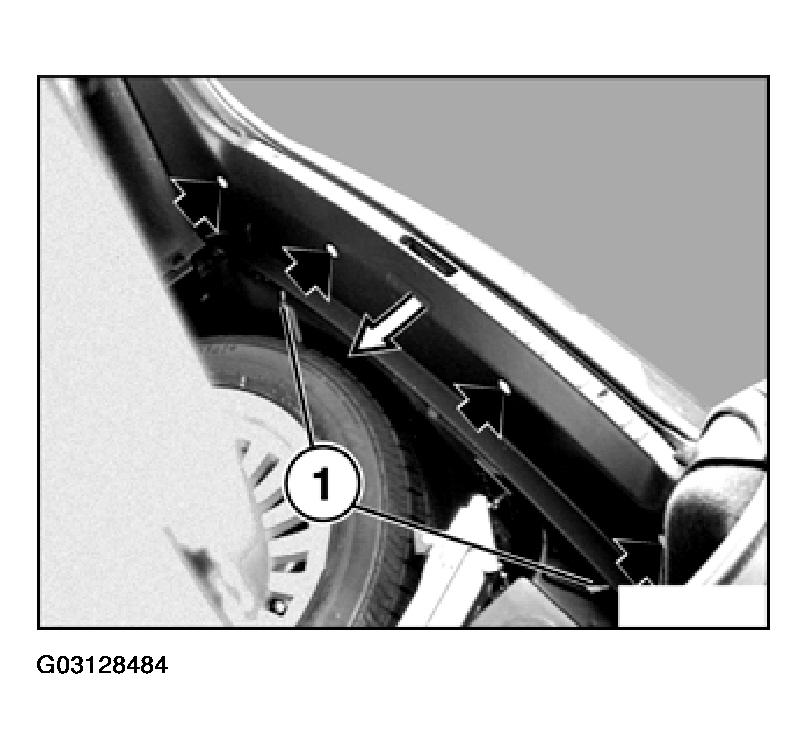

Fig 2: Inserting Guide Spigot On Finisher Into Bottom Of Tail Panel

Courtesy of BMW OF NORTH AMERICA, INC.
