51 16 405 Removing and installing or replacing blind at side window of left or right rear door

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear door trim, refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

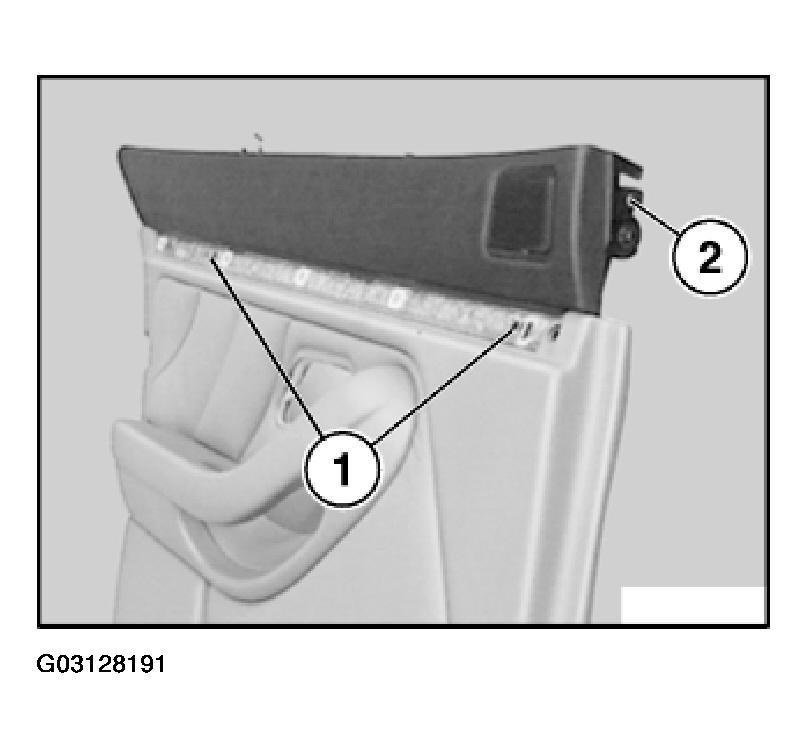

Release screws (1) and (2) on door trim.

Fig 1: Releasing Screws & On Door Trim

Courtesy of BMW OF NORTH AMERICA, INC.

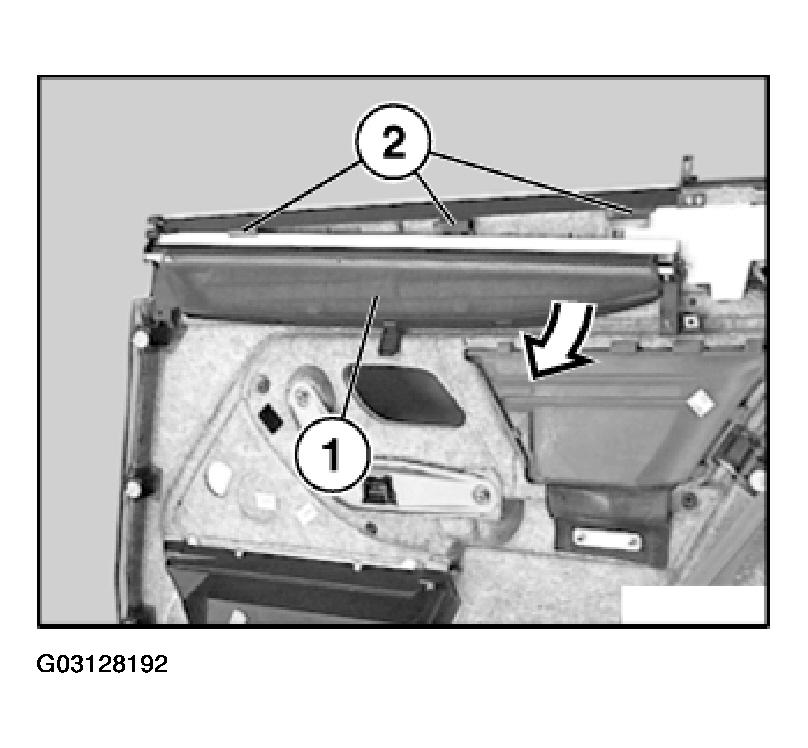

Pull down roller sun blind (1) out of clips (2) on inner side of door trim.

Fig 2: Pulling Down Roller Sun Blind Out Of Clips On Inner Side Of Door Trim

Courtesy of BMW OF NORTH AMERICA, INC.

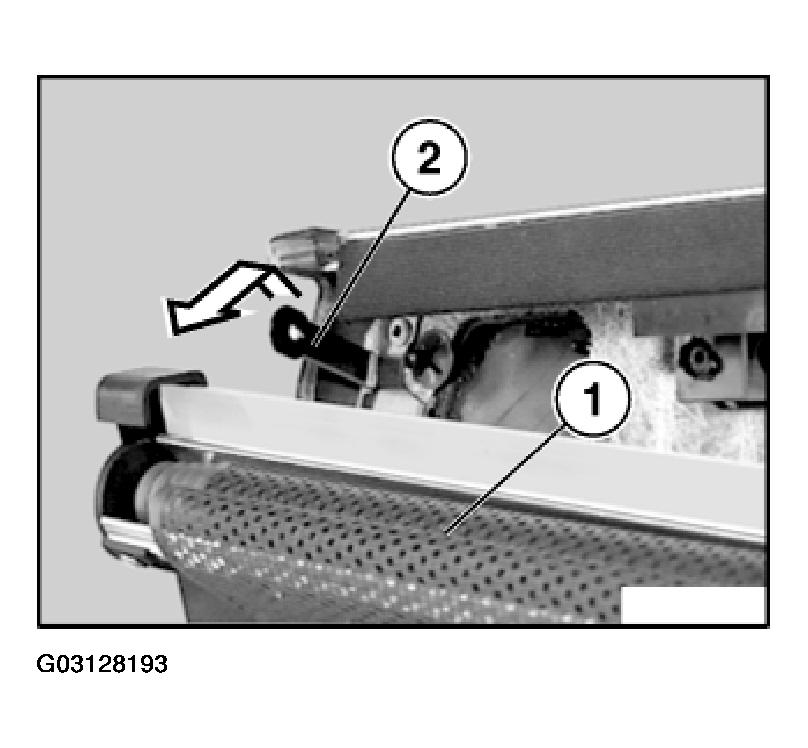

Detach roller sun blind (1) at front from retaining bracket (2) and remove.

Fig 3: Detaching Roller Sun Blind At Front From Retaining Bracket

Courtesy of BMW OF NORTH AMERICA, INC.
