51 16 340 Removing and installing/replacing glovebox lock

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

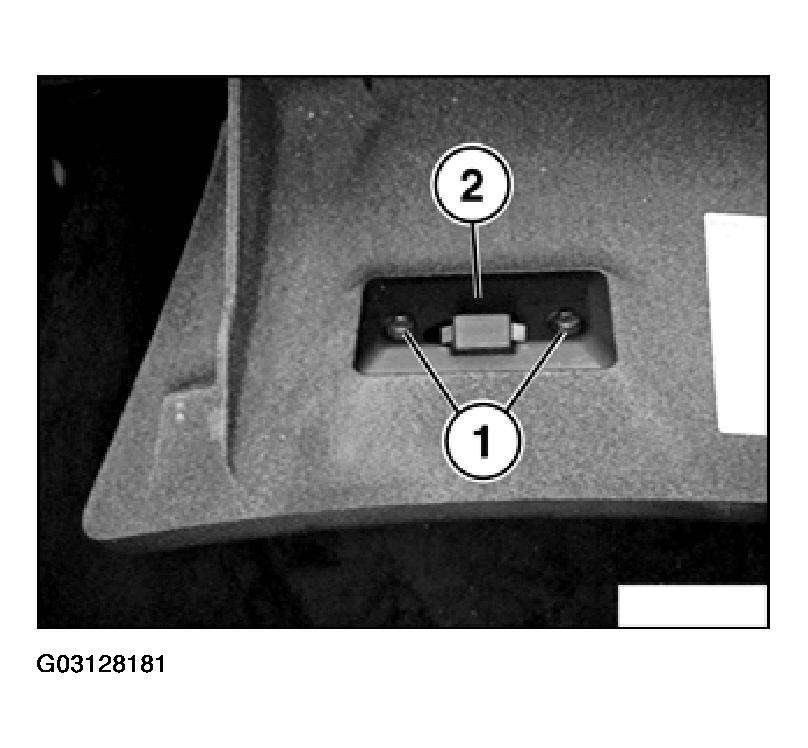

Unfasten screws (1) and remove upper (2) and lower sections of lock.

Fig 1: Removing Upper & Lower Sections Of Lock

Courtesy of BMW OF NORTH AMERICA, INC.

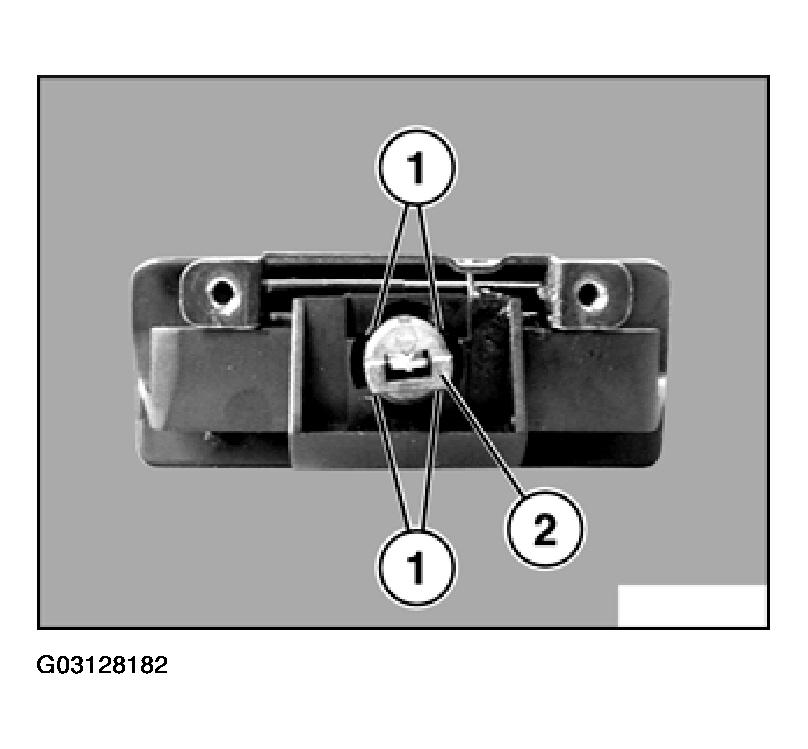

Insert vehicle key in lock cylinder (2).

Break open locks (1) if necessary and pull out lock cylinder (2) with vehicle key.

Fig 2: Inserting Vehicle Key In Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.
