51 16 215 Removing and installing/replacing center armrest sliding unit

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove fresh air grill in footwell.

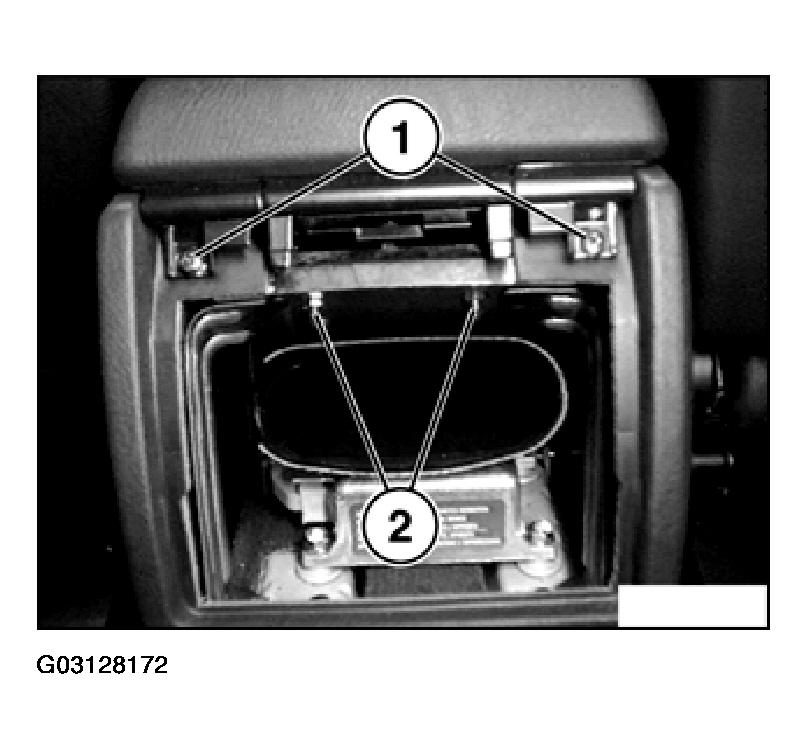

Release screws (1) and nuts (2).

Fig 1: Releasing Screws & Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

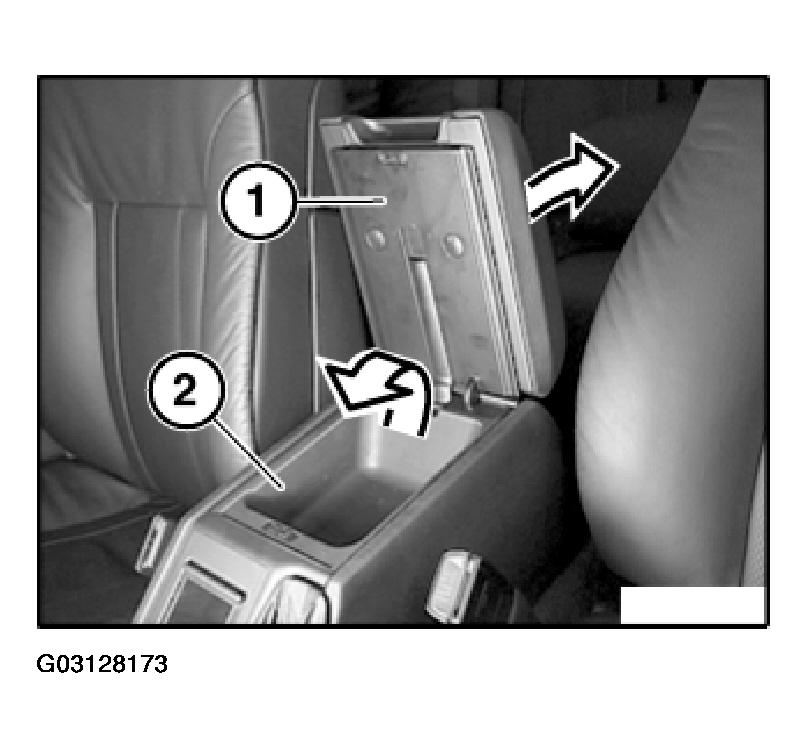

Open center armrest (1) and remove storage tray (2) at same time.

Fig 2: Removing Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.
