Special tools required:

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

00 9 318

NOTE: For the E39, a choice is offered: normal mirror glass or mirror glass with automatic dip action (electro-chrome technology). The removal operation varies depending on version of mirror (risk of damage).

Rearview mirror without automatic anti-glare control:

The mirror glass does not have a plastic frame.

CAUTION: Bring car to room temperature so that clips do not break off.

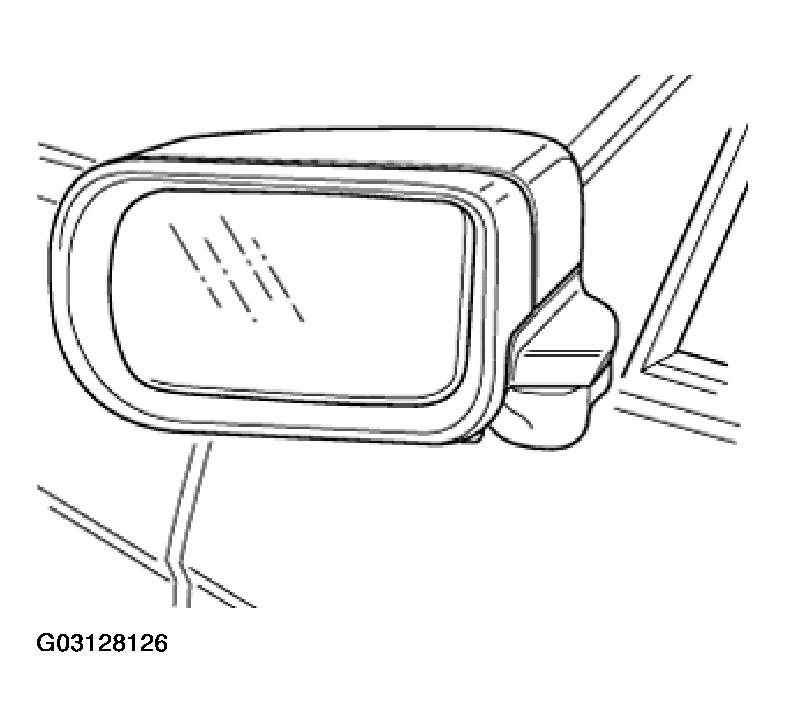

Fig 1: Identifying Mirror Without Automatic Anti-Glare Control

G03128126

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt mirror glass.

Tape off mirror glass and housing edge (risk of damage).

Unclip mirror glass with special tool 00 9 318 (universal wedge).

If necessary, disconnect plug connection for mirror heating and remove mirror glass.

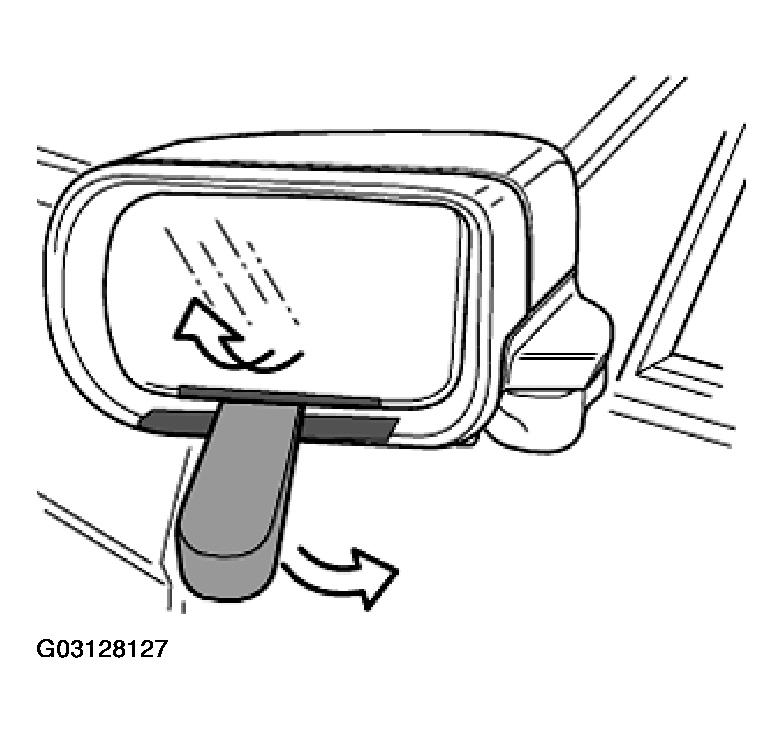

Fig 2: Tapping Off Mirror Glass & Housing Edge

G03128127

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Place mirror glass with retainers onto lugs and clip mirror glass into place. Ensure correct engagement.

Check function.

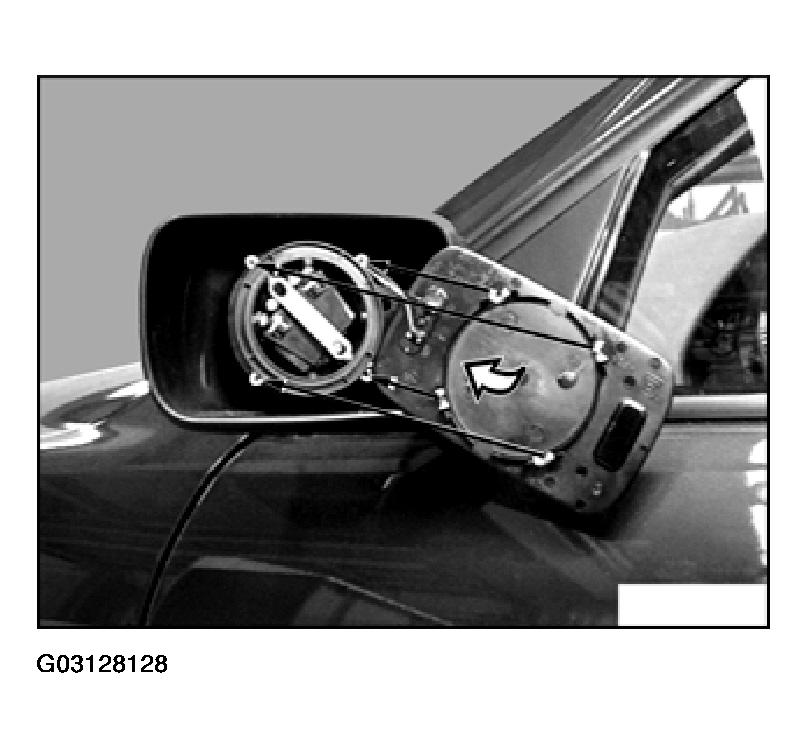

Fig 3: Placing Mirror Glass With Retainers Onto Lugs & Clip Mirror Glass Into Place

G03128128

Courtesy of BMW OF NORTH AMERICA, INC.

Rearview mirror with automatic anti-glare control:

CAUTION: Risk of injury in event of broken mirror glass.
Therefore wear protective gloves and clean all parts with water.

Slide gudgeon to right (bayonet lock) and carefully lift off mirror glass.

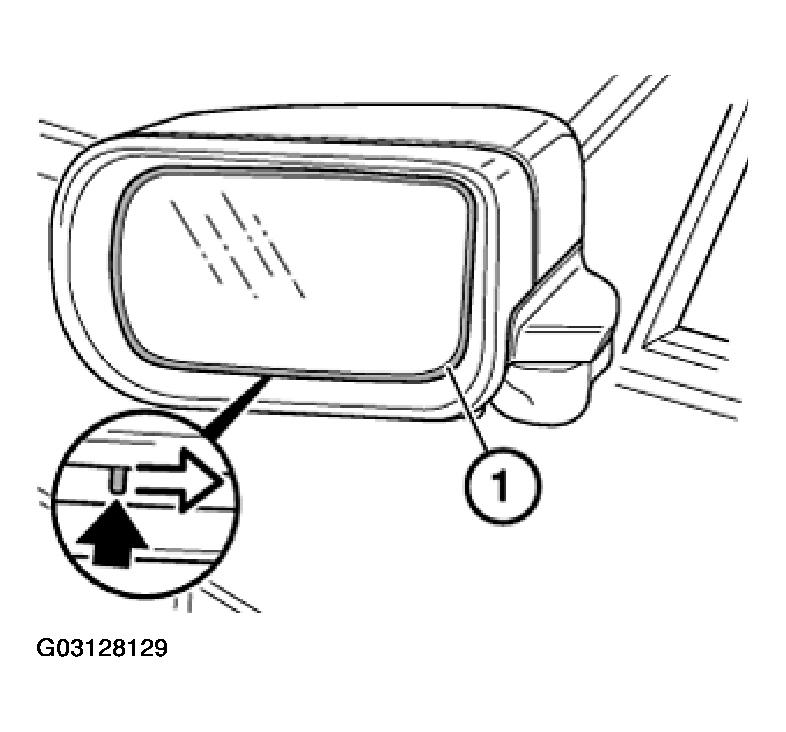

Fig 4: Sliding Gudgeon To Right

G03128129

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, disconnect plug connection (1) for mirror heating. Unlock plug (2) and detach.

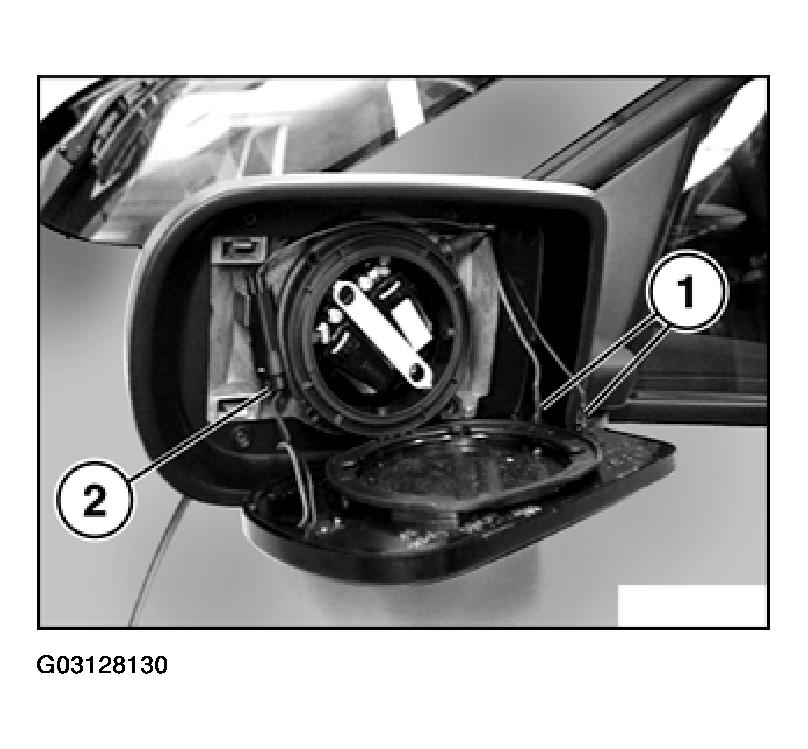

Fig 5: Disconnecting Plug Connection For Mirror Heating

G03128130

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Place mirror glass with openings onto lugs.

Slide gudgeon to left until it is vertical. Check function.

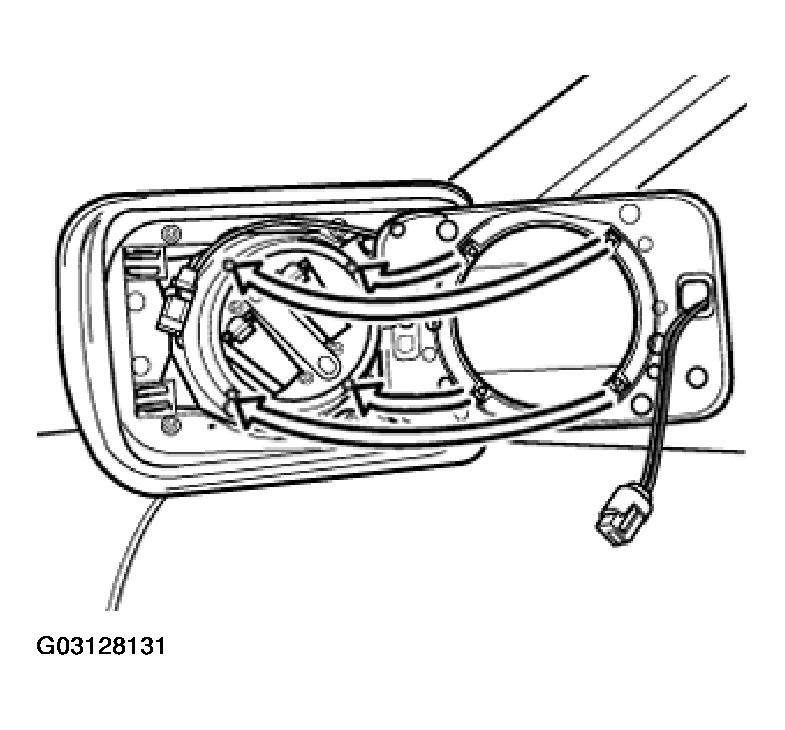

Fig 6: Placing Mirror Glass With Openings Onto Lugs

G03128131

Courtesy of BMW OF NORTH AMERICA, INC.
