51 33 000 Removing and installing electric window regulator in left or right front door

Disconnect negative battery lead.

Version with side airbag:

Removing and installing airbag in left or right front door. Refer to AIR BAG RESTRAINT SYSTEMS .

Remove window in front door, refer to 51 32 170 REMOVING AND INSTALLING / REPLACING FRONT LEFT OR RIGHT DOOR WINDOW

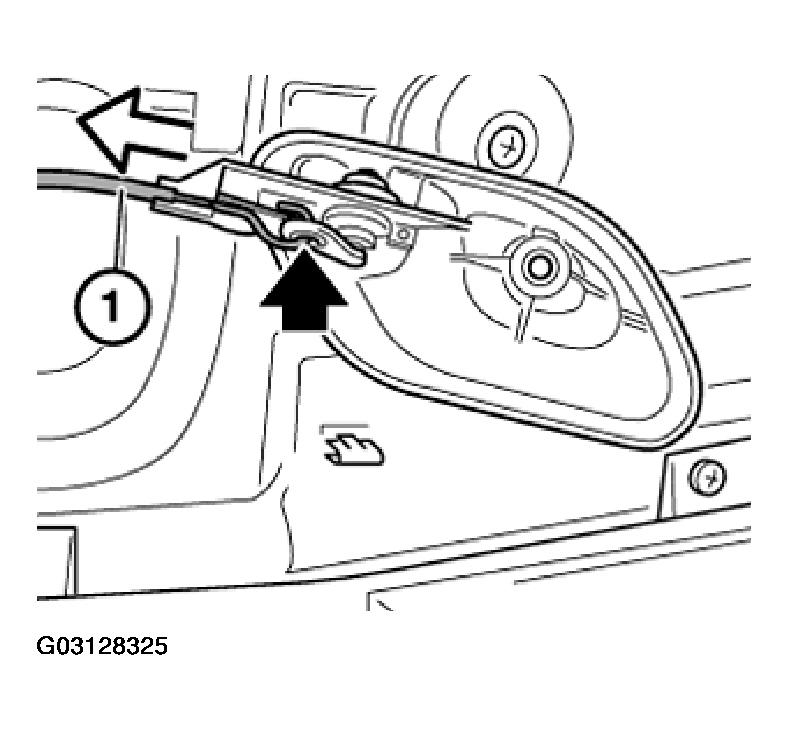

Pull Bowden cable (1) backwards, detach from door handle and remove.

Fig 1: Pulling Bowden Cable Backwards

Courtesy of BMW OF NORTH AMERICA, INC.

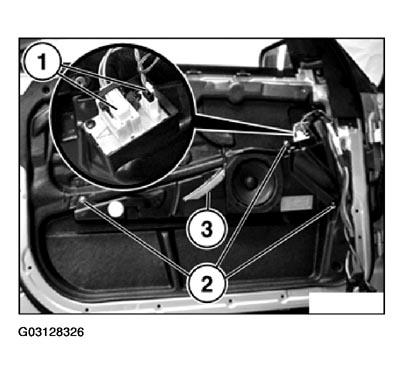

Remove connector (1).

Unfasten screws (2) and remove loudspeaker box (3).

Fig 2: Removing Loudspeaker Box

Courtesy of BMW OF NORTH AMERICA, INC.

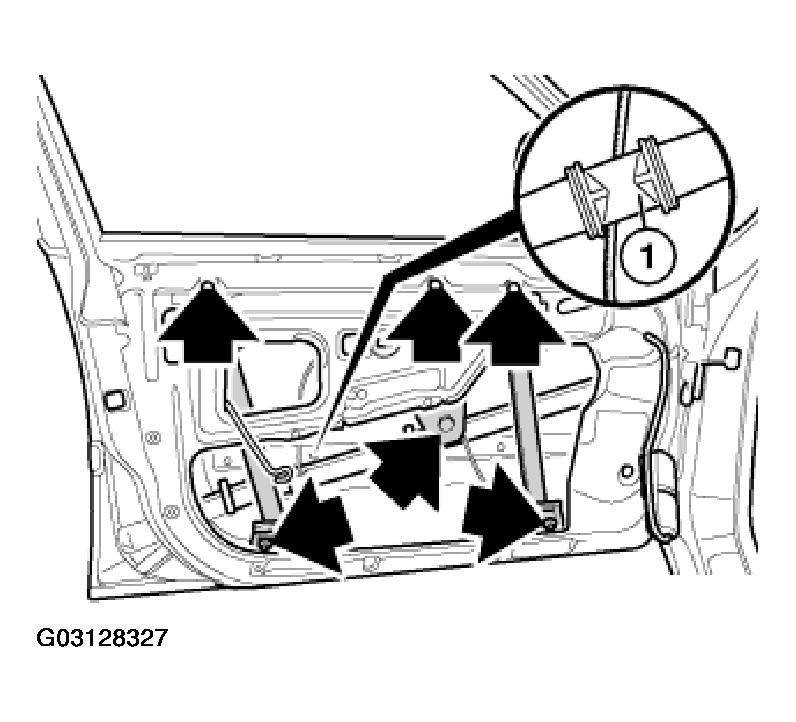

Remove connector from window regulator drive unit. Pull off guide (1).

Unfasten screws (only loosen lower 3 screws) and remove complete cable on window regulator.

Fig 3: Removing Connector From Window Regulator Drive Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

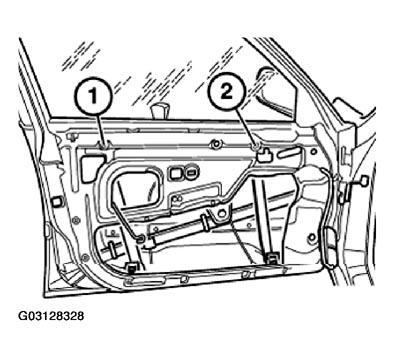

Install window regulator in locating bracket and install all screws loose.

Tighten down screws (1) and (2).

Tightening torque. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 4: Installing Window Regulator

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

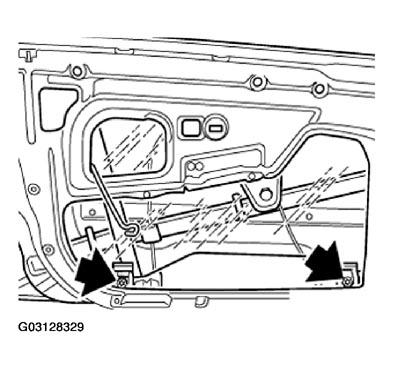

Installing door window in clamps of window regulator and adjusting door window,

refer to 51 32 154 ADJUSTING LEFT OR RIGHT FRONT DOOR WINDOW

Fig 5: Installing Door Window In Clamps Of Window Regulator

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

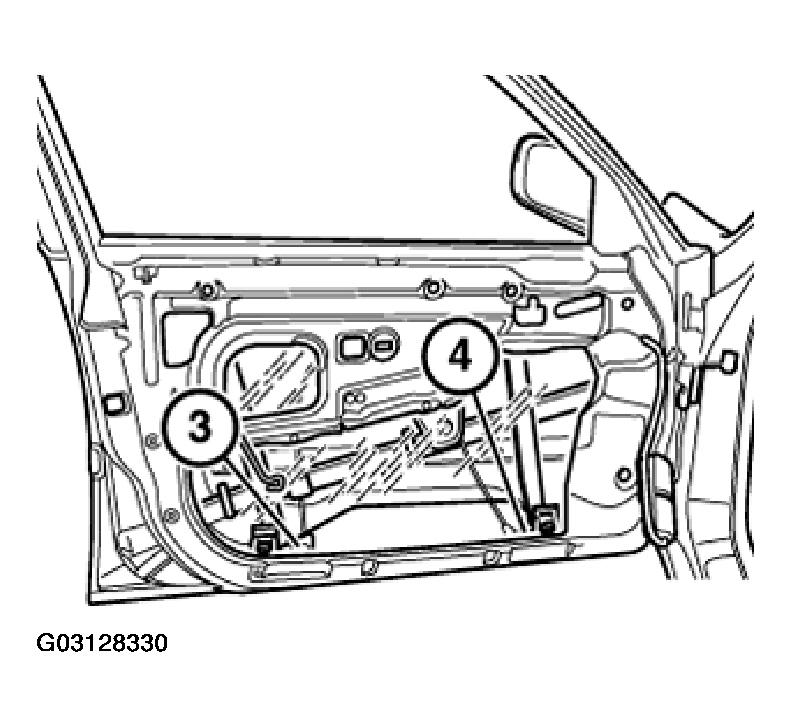

Lower door window down to stop.

Tighten down screws (3) and (4).

Tightening torque, refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 6: Lowering Door Window Down To Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

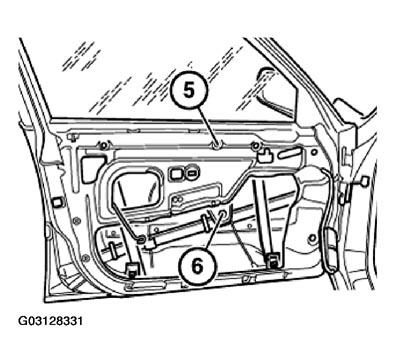

Close door window firmly.

Tighten down screws (5) and (6).

Tightening torque, refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 7: Closing Door Window

Courtesy of BMW OF NORTH AMERICA, INC.
