51 21 330 Removing and installing/replacing window cavity cover strip on inner front door

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front left or right door trim, refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Beginning from rear, raise clips (1) with special tool 00 9 321 (folding leg).

Press cover strip (2) upwards out of clips.

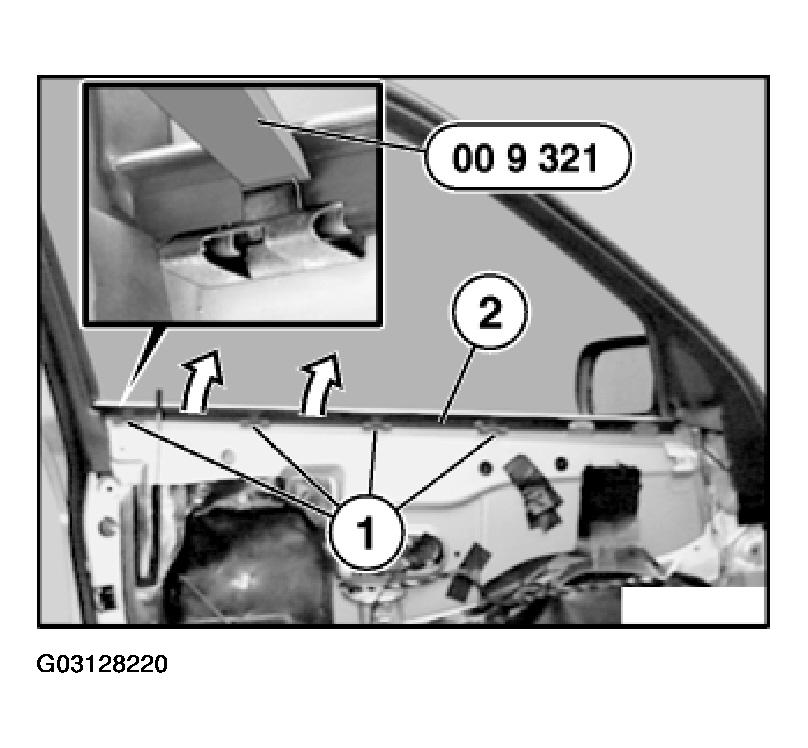

Fig 1: Pressing Cover Strip Upwards Out Of Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover strip (1) past window frame towards rear.

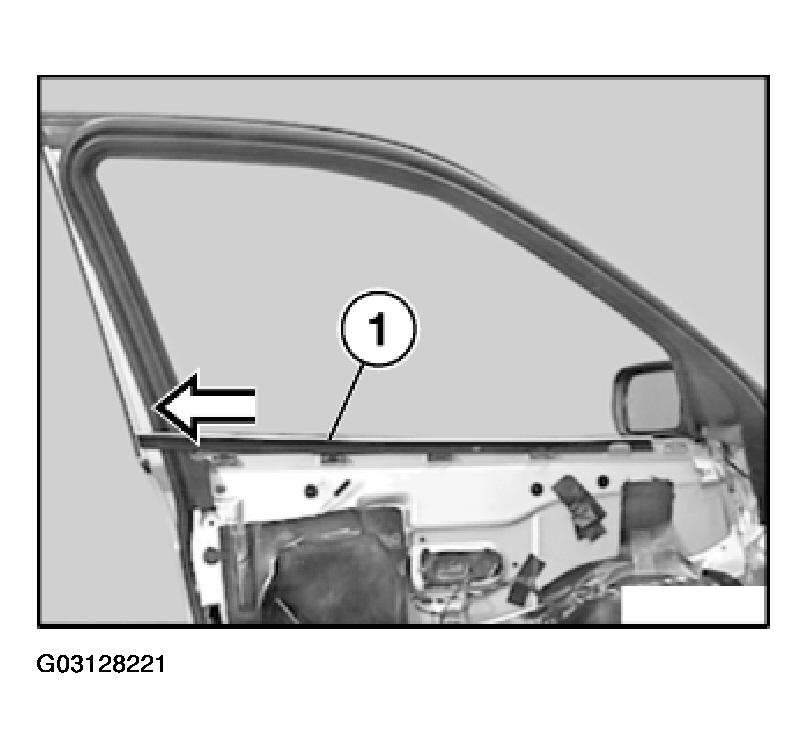

Fig 2: Removing Cover Strip Past Window Frame Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, remove faulty clips (1) from inner door panel (2) and replace.

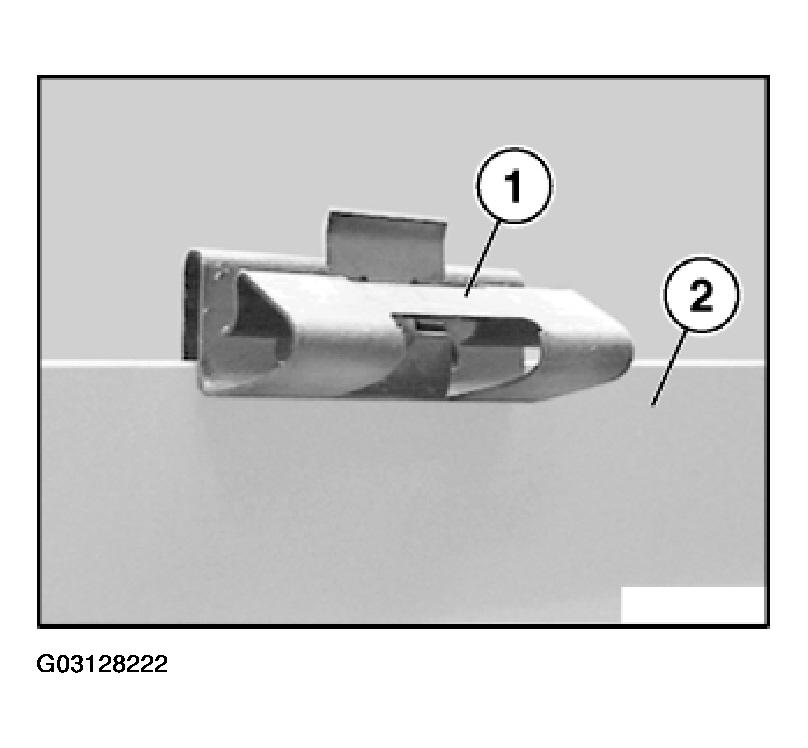

Fig 3: Removing Faulty Clips From Inner Door Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove front left or right door trim, refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Coat cover strip with rubber protection coating agent (sourcing reference: BMW Parts Service).

Begin with assembly at front (1).

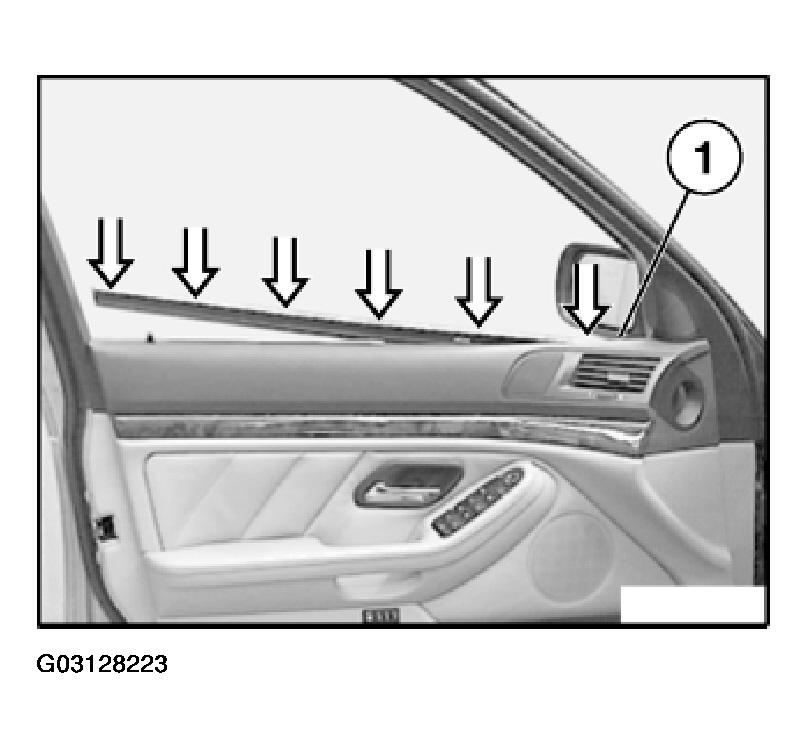

Fig 4: Removing & Installing Left Or Right Front Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
