51 31 000 Removing and installing front windscreen

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To bond windshield:

Adhesives for cold and hot working are permitted.

Remove front lid, refer to LIDS .

Remove interior rearview mirror, refer to 51 16 060 REMOVING AND INSTALLING OR REPLACING INTERIOR REARVIEW MIRROR .

If necessary, remove rain sensor. Refer to 61 35 175 REMOVING AND INSTALLING/REPLACING RAIN/LIGHT SENSOR .

Remove both sun visors and counter supports, refer to 51 16 080 REMOVING AND INSTALLING OR REPLACING SUN VISOR AND LEFT OR RIGHT COUNTER SUPPORT .

Remove both panels for front roof pillar (A-pillar finishers), refer to 51 43 201 REMOVING AND INSTALLING OR REPLACING TRIM FOR FRONT LEFT OR RIGHT ROOF .

Remove cowl panel cover (task is described in Removing wiper console). Refer to 61 61 270 REMOVING AND INSTALLING COMPLETE WIPER CONSOLE .

Cold processing:

Comply with instructions on gluing windows, refer to 51 31... INSTRUCTIONS ON GLUING WINDSCREEN

Warm processing:

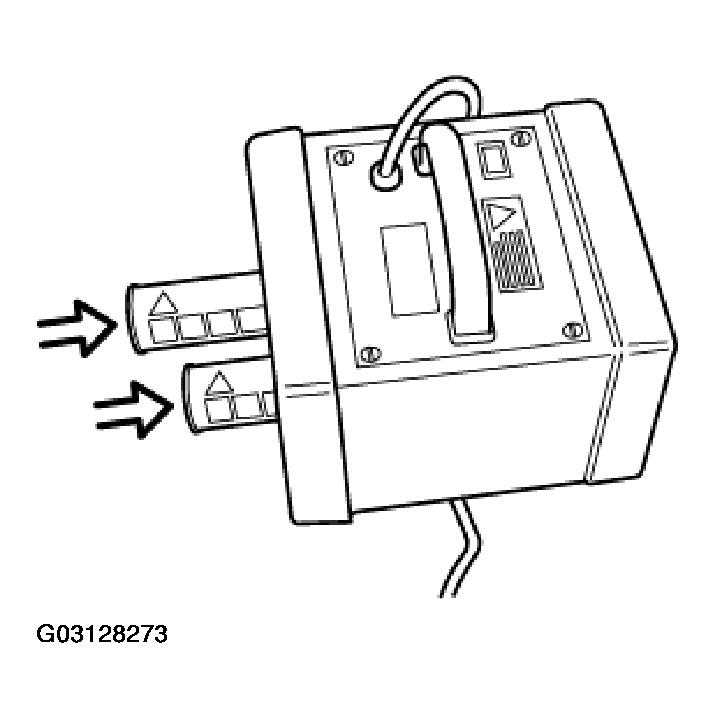

Open aluminum membrane at rear end of cartridge.

Place cartridge in cartridge oven.

Heat glue cartridges to 80° C for one hour in oven (sourcing reference: BMW Parts Service).

Comply with instructions on gluing windows, refer to 51 31... INSTRUCTIONS ON GLUING WINDSCREEN

Fig 1: Opening Aluminum Membrane At Rear End Of Cartridge

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Cover engine compartment (top) and side panels with protective covers.

Lower front headlining slightly.

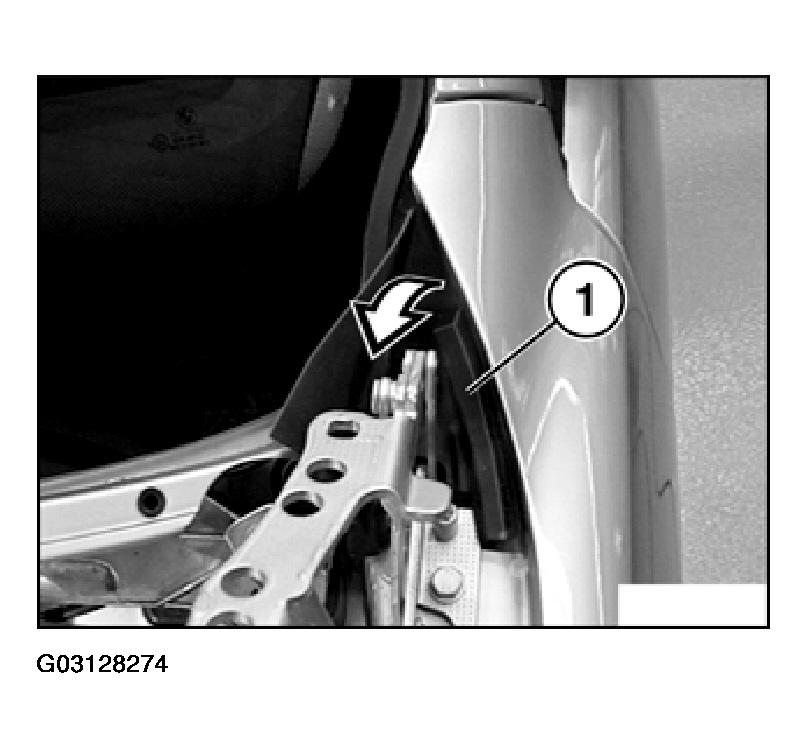

Remove seal (1) for left/right windshield/side panel.

Fig 2: Removing Seal For Left/Right Windshield/Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.

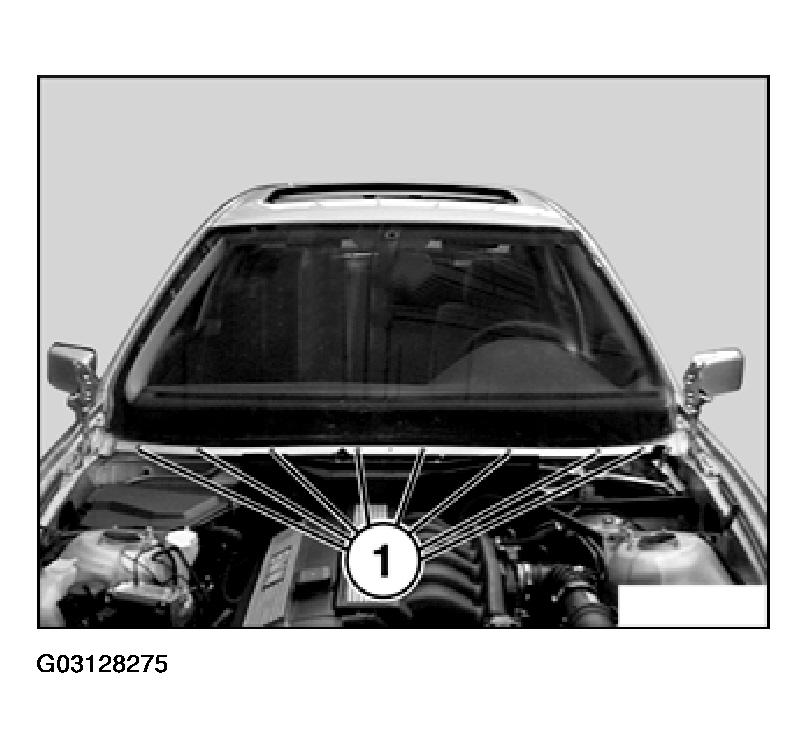

Remove grommets (1) for cover finisher on windshield.

Fig 3: Removing Grommets For Cover Finisher On Windshield

Courtesy of BMW OF NORTH AMERICA, INC.

Remove gasket from windshield.

Fig 4: Removing Gasket From Windshield

Courtesy of BMW OF NORTH AMERICA, INC.

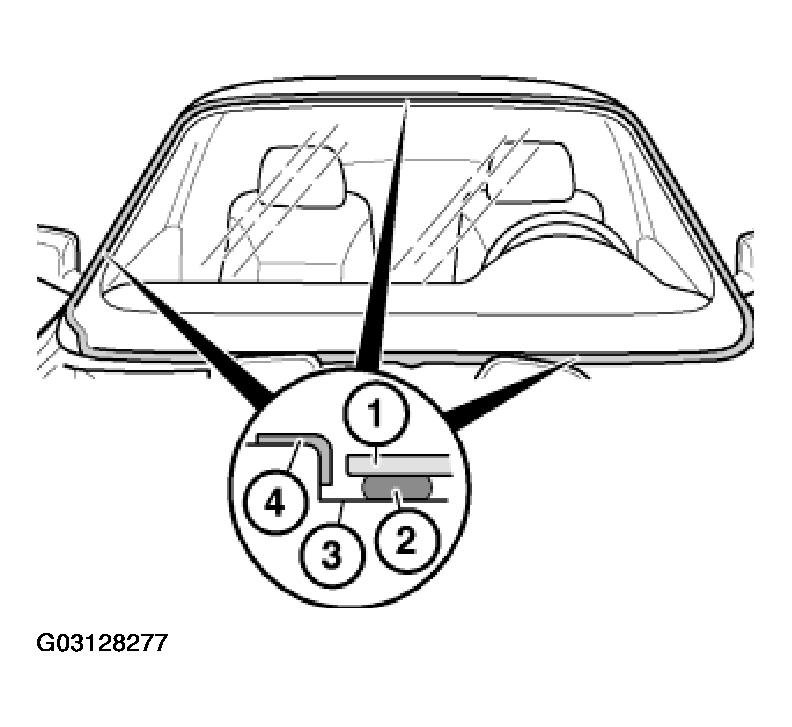

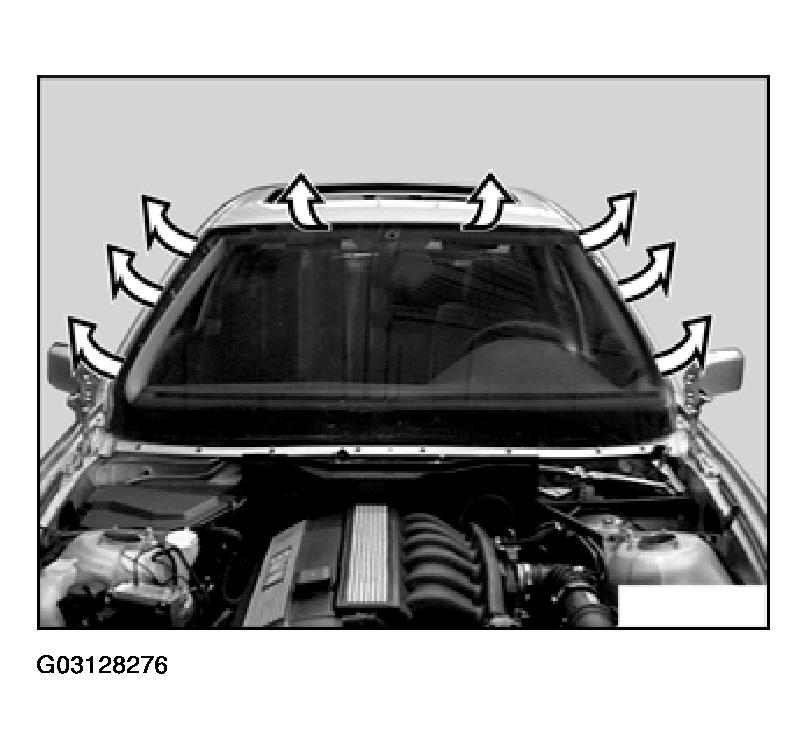

Mask body all round with fabric adhesive tape (e.g. Tesa).

Windshield
Glue bead
Body opening
Fabric adhesive tape

Fig 5: Masking Body All Round With Fabric Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

Fit knife (24 mm blade length, sourcing reference: BMW Parts Service) to the tool.

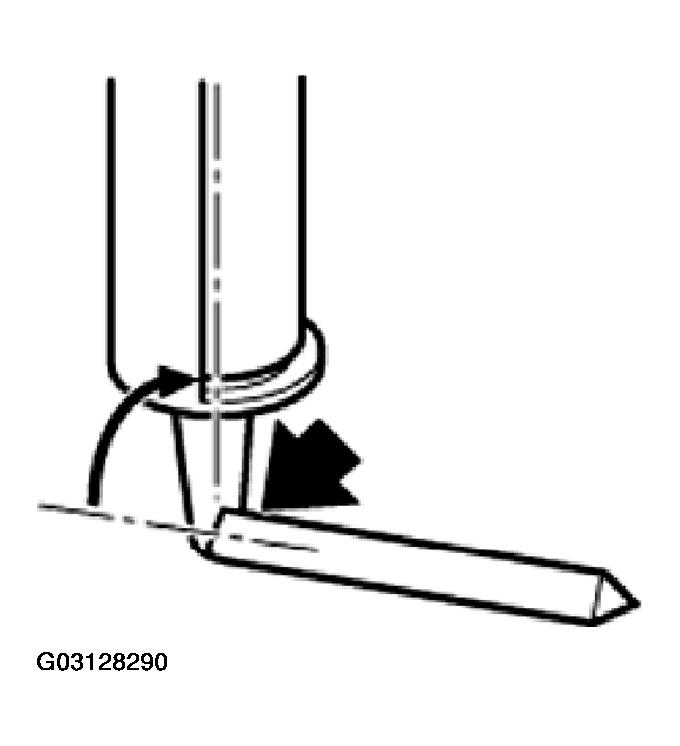

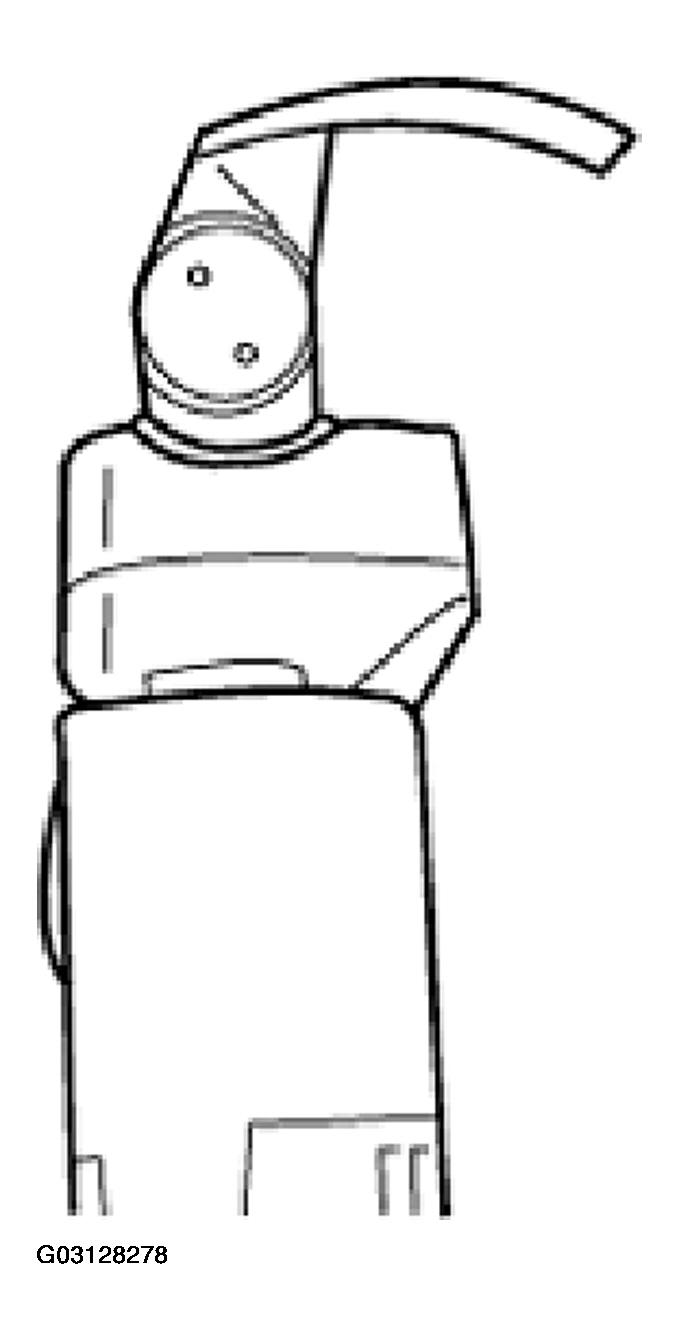

NOTE: Resharpen knife with machine running.

Fig 6: Resharpening Knife With Machine Running

Courtesy of BMW OF NORTH AMERICA, INC.

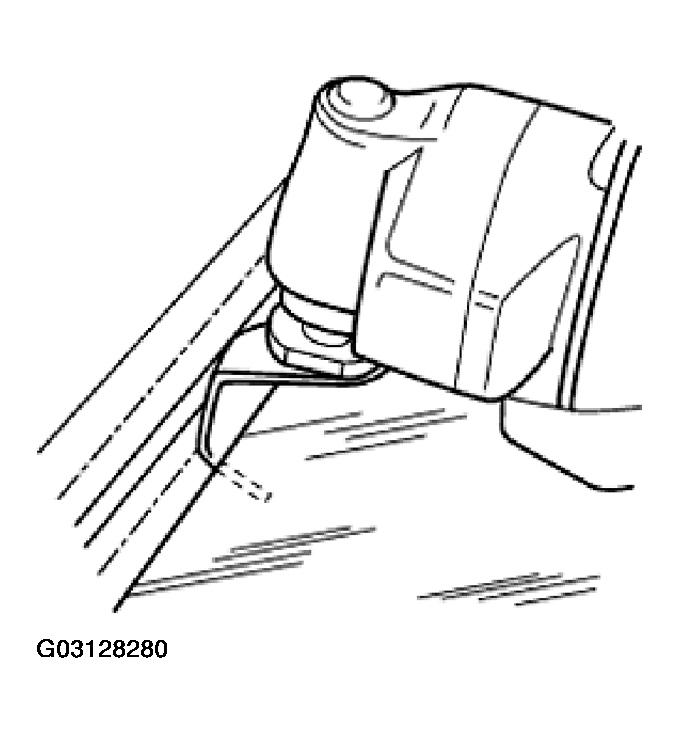

Carefully insert knife between body and windshield.

Fig 7: Inserting Knife Between Body & Windshield

Courtesy of BMW OF NORTH AMERICA, INC.

Guide handle of knife parallel to windshield.

Fig 8: Guiding Handle Of Knife Parallel To Windshield

Courtesy of BMW OF NORTH AMERICA, INC.

Cut through glue bead all around and as close as possible to windscreen glass.

Body opening
Glue bead
Knife
Windshield

Fig 9: Cutting Through Glue Bead All Around

Courtesy of BMW OF NORTH AMERICA, INC.

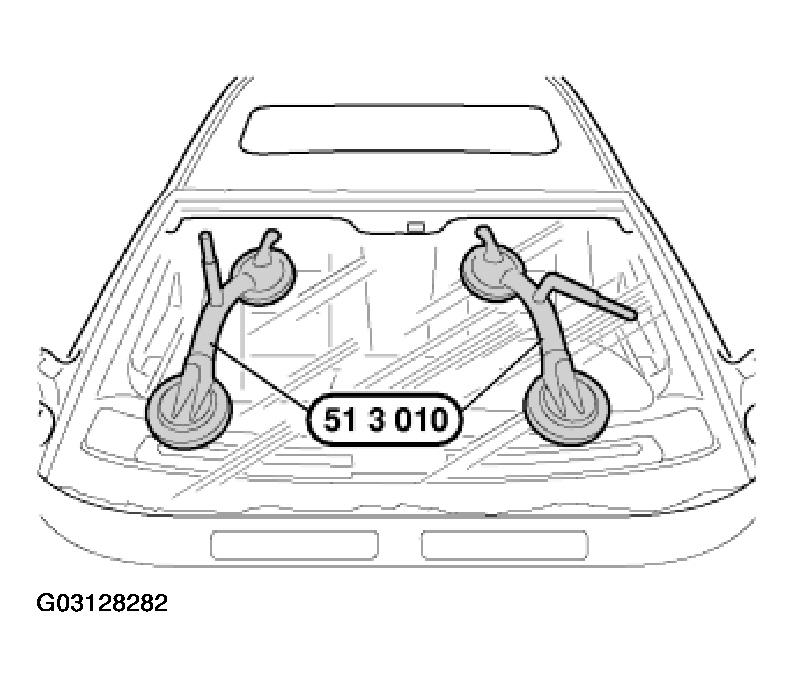

Lift out the windscreen using special tool 51 3 010.

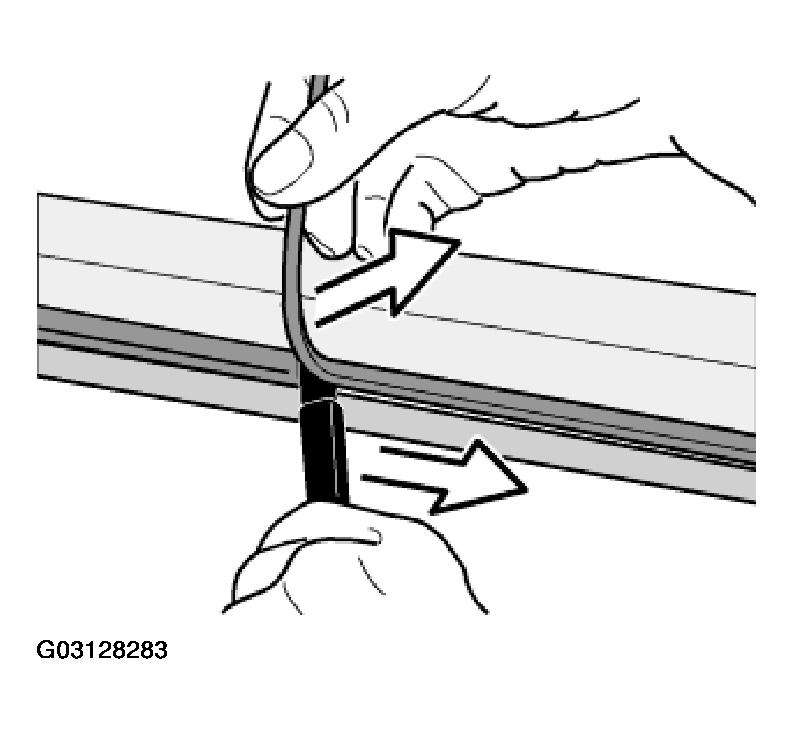

Pull off adhesive tapes all round.

Fig 10: Pulling Off Adhesive Tapes All Round

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: To ensure long-term corrosion protection, it is absolutely essential to repair paintwork damage (scratches and large-surface damage),
refer to 51 31... INSTRUCTIONS ON GLUING WINDSCREEN

Immediately before installing windshield:

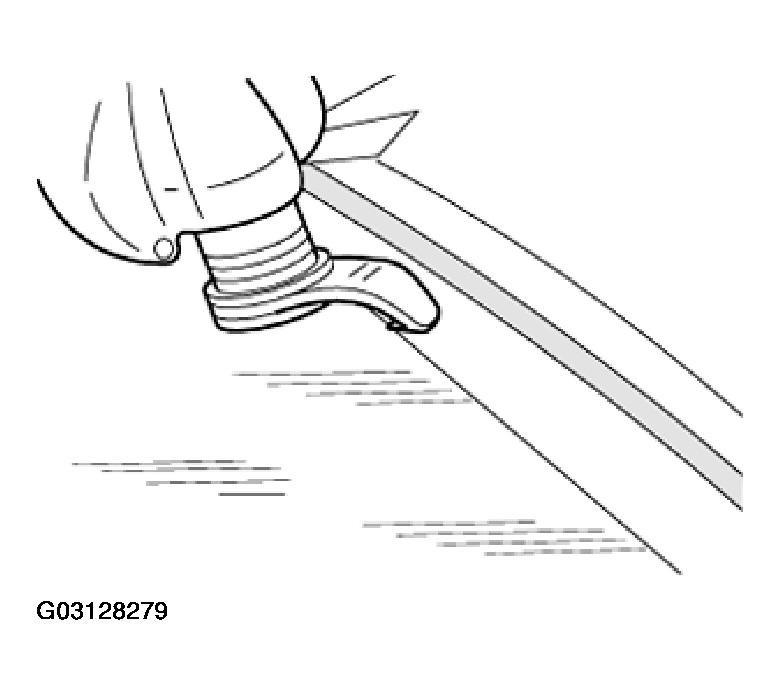

Remove glue residue in body cutout to approx. 0.5 mm.

To avoid damaging paintwork in body cutout, carefully remove glue residue with a scalpel.

CAUTION: Clean freshly cut residual bead with 2-Propanol only, do not under any circumstances use Sika bonding agent 205/5.

Fig 11: Removing Glue Residue With A Scalpel

Courtesy of BMW OF NORTH AMERICA, INC.

When reusing the windshield:

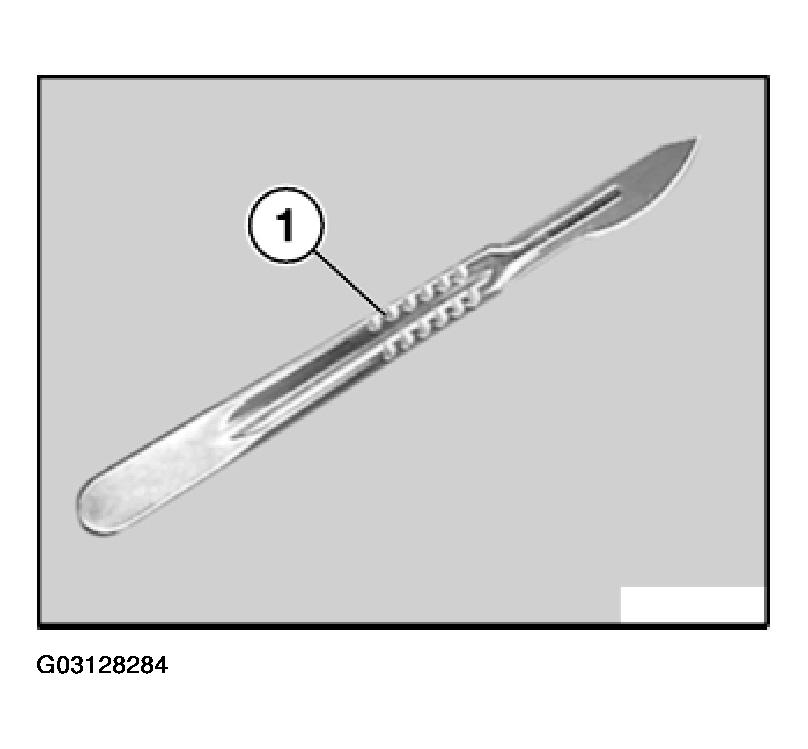

Remove glue residue on windshield with a scalpel (1) for heavy-duty applications to approx. 0.5 mm.

Fig 12: Removing Glue Residue On Windshield

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: The basic filler must have hardened!

Treat body around glued area with BMW-approved materials (repair kit, sourcing reference: BMW Parts Service),

refer to 51 31... INSTRUCTIONS ON GLUING WINDSCREEN

NOTE: Note ventilation time!

Fig 13: Treating Body Around Glued Area With BMW-Approved Materials

Courtesy of BMW OF NORTH AMERICA, INC.

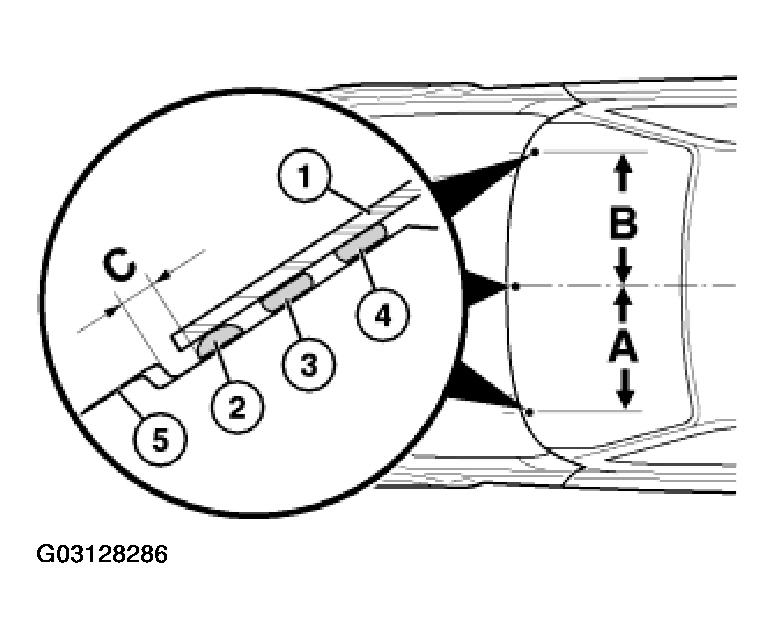

Stick on 1 spacer buffer (2) in each case in center and at distances (A) and (B) from center of cowl panel.

Dimensions:

(A) 486 mm

(B) 446 mm

Windshield
Spacer buffer
Glue bead
Expanding foam tape
Windshield

Fig 14: Sticking On 1 Spacer Buffer In Each Case In Center (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 15: Sticking On 1 Spacer Buffer In Each Case In Center (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

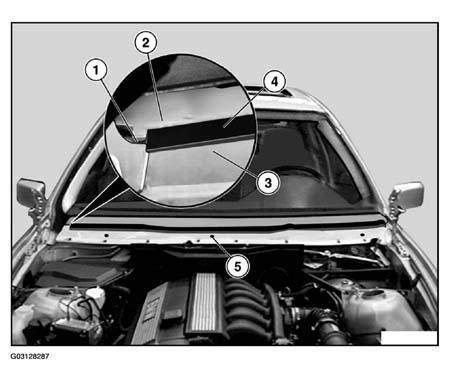

Fit new expanding foam tape (4) over gap (1) between acoustic insulation (2) and windshield panel (3) from left to right. There must be enough space for the glue bead in the middle between the expanding foam tape (4) and spacer section (5).

Treat windshield at distance (A, B, C) to edge of windshield across width of approx. 20 mm with materials approved by BMW (repair kit, sourcing reference: BMW Parts Service),

refer to 51 31... INSTRUCTIONS ON GLUING WINDSCREEN

(A) 7 mm

(B) 5 mm

NOTE: Note ventilation time!

Fig 16: Fitting Gasket To Windshield

Courtesy of BMW OF NORTH AMERICA, INC.

Fit gasket to windshield and press firmly into place.

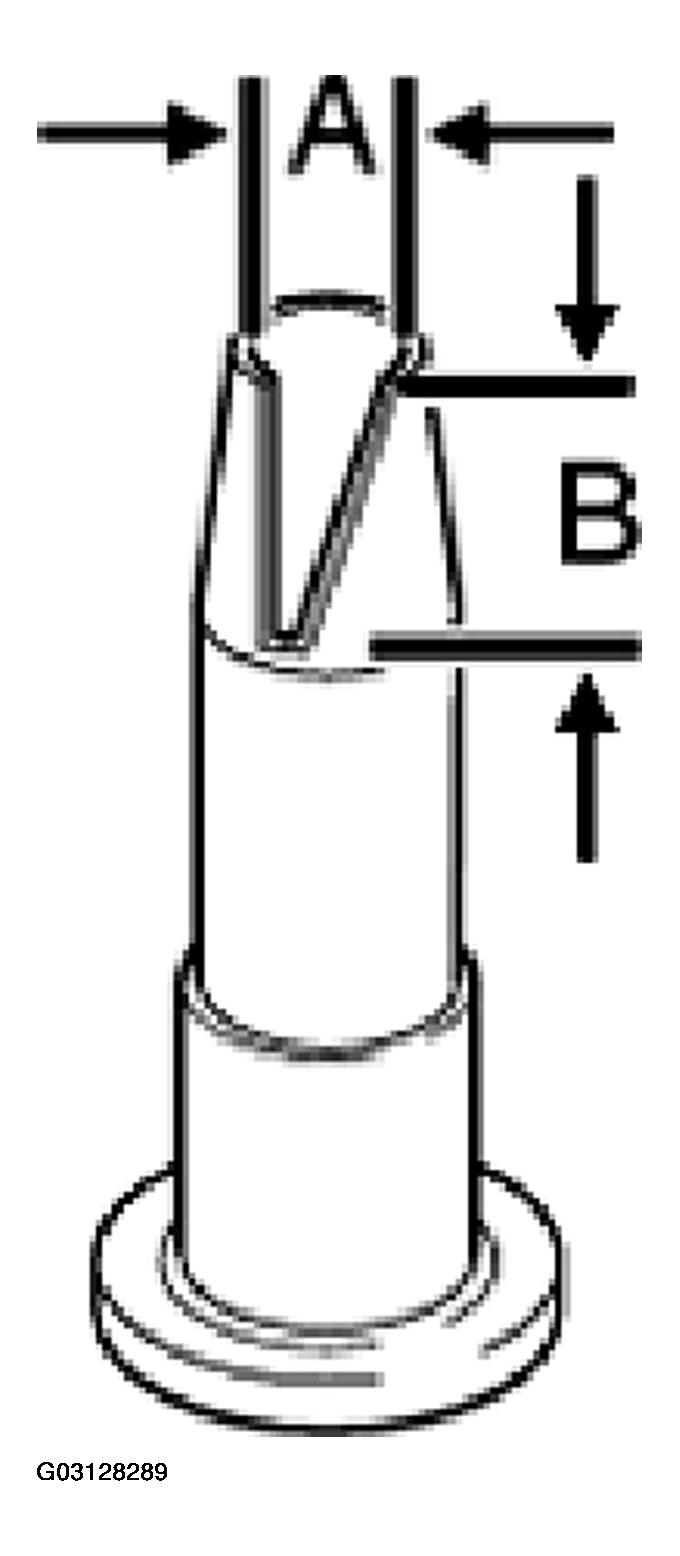

Cut nozzle to size.

(A) 8 mm

(B) 11_-2 mm

NOTE: For an even application of adhesive bead:
Use a cartridge gun (operated pneumatically or electrically, sourcing reference: BMW Parts Service).
Check expiry date of glue!

Fig 17: Cutting Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, apply a test bead before gluing.

Cartridge must be held perpendicularly to the windscreen glass.

Fig 18: Applying A Test Bead Before Gluing

Courtesy of BMW OF NORTH AMERICA, INC.

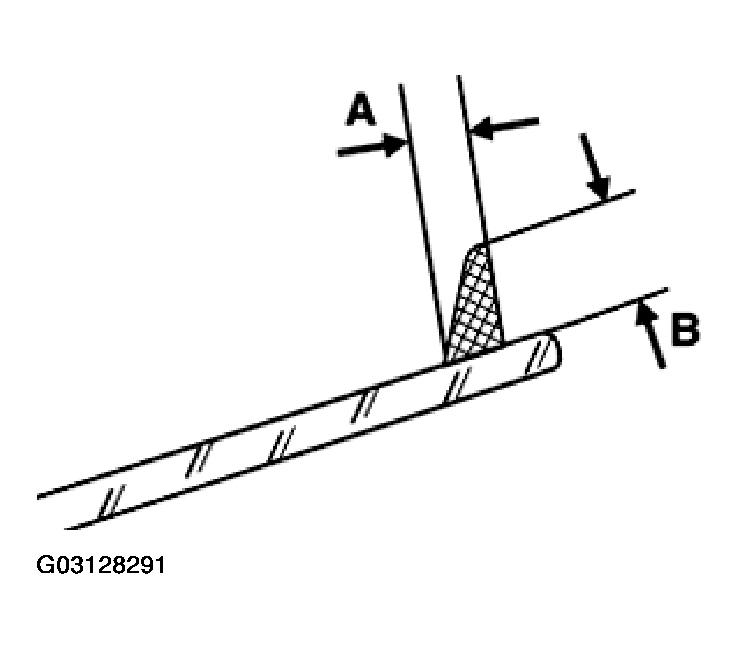

Shape of glue bead:

(A) 8 mm

(B) 11_-2 mm

CAUTION: Apply glue quickly and insert windshield.
Skin formation time of glue, maximum 10 minutes.

Fig 19: Identifying Shape Of Glue Bead

Courtesy of BMW OF NORTH AMERICA, INC.

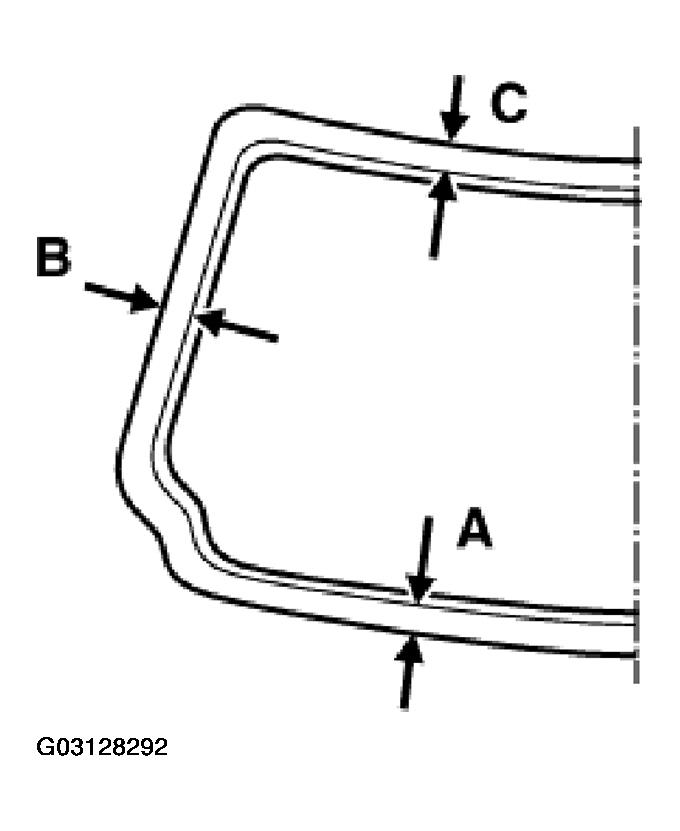

Apply glue bead at distance (A, B, C) along edge of windshield.

(A) 10 mm

(B) 8 mm

Fig 20: Applying Glue Bead At Distance Along Edge Of Windshield

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Adhesive area for plastic adhesive tapes (1) must be free of grease and dust.

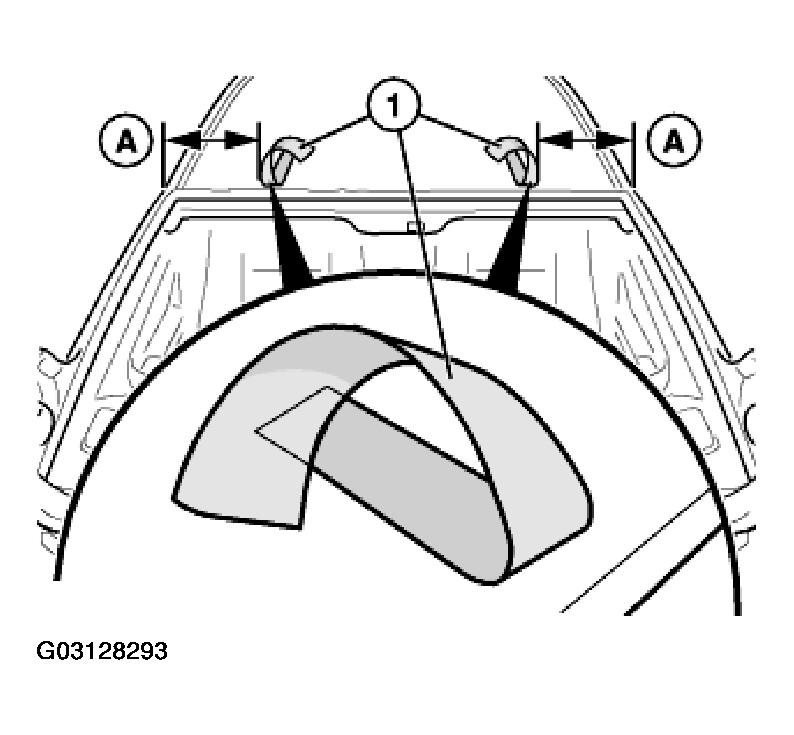

Attach two yellow plastic adhesive tapes (1) (sourcing reference: BMW Parts Service) to roof at distance (A) from outer corners.

Length: 400 mm

Width: 50 mm

(A) 250 mm

Fig 21: Attaching Two Yellow Plastic Adhesive Tapes

Courtesy of BMW OF NORTH AMERICA, INC.

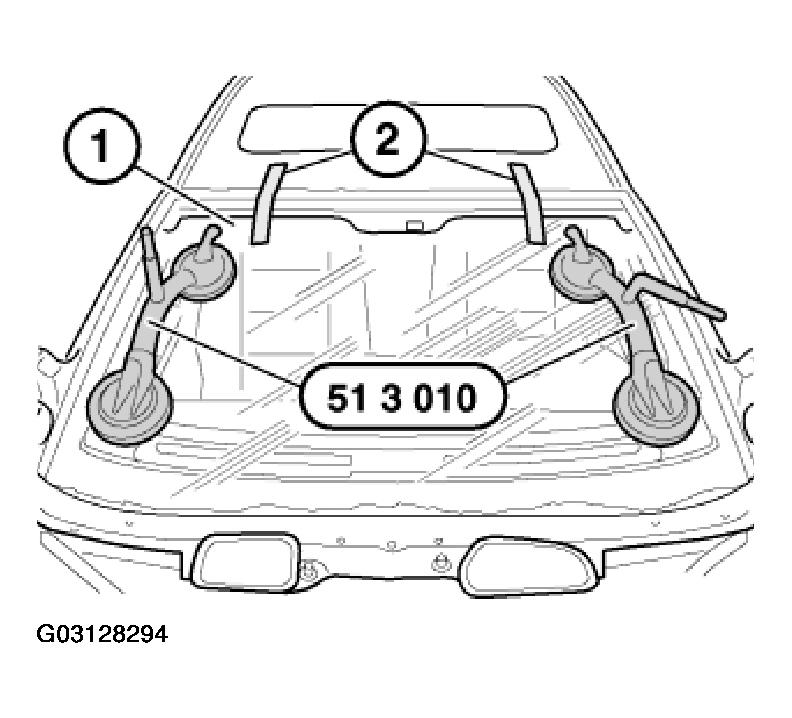

Using special tool 51 3 010,

first position windshield at top,

align evenly at sides,

then install at bottom and press into place.

Press windshield upwards until seal on roof abuts uniformly.

Secure windshield in this position on top with two yellow plastic adhesive tapes (1) (Tesa).

Fig 22: Securing Windshield

Courtesy of BMW OF NORTH AMERICA, INC.

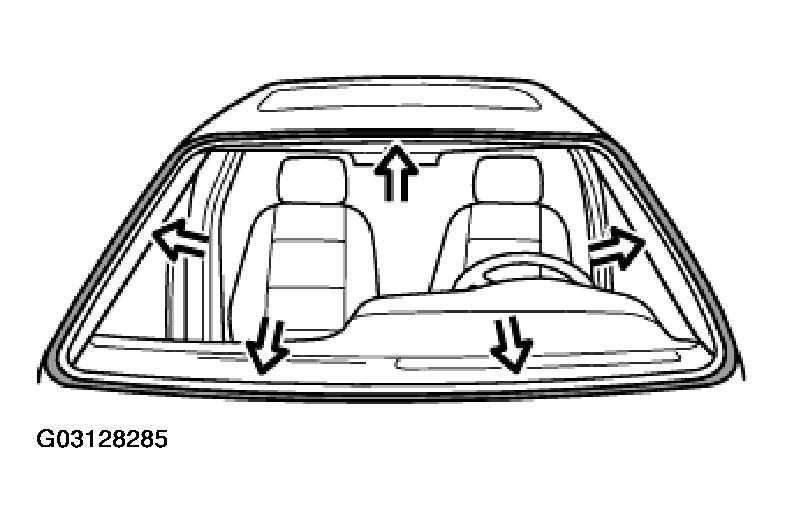

The windshield is pretensioned at the top to prevent wind noises.

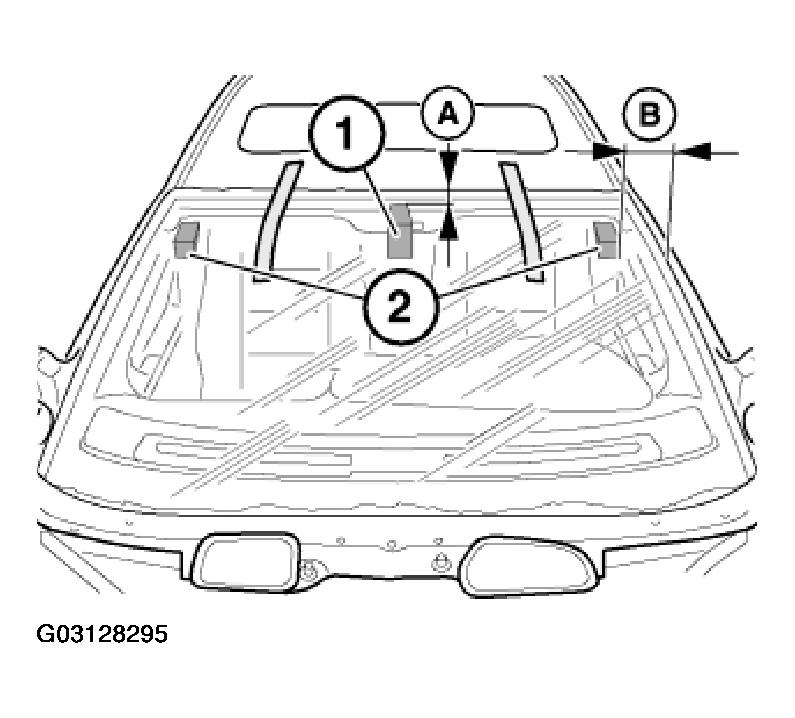

Pretension is generated with special tool 51 3 130 (three HR foam blocks).

1 piece (1): 40 x 70 x 70 mm (W x H x D)

2 pieces (2): 40 x 30 x 70 mm (W x H x D)

Position of HR foam blocks:

HR foam block (1), middle, at distance (A) from top.

HR foam blocks (2), distance (A) from top and distance (B) at sides.

(A) 100 mm

(B) 100 mm

Fig 23: Generating Pretension

Courtesy of BMW OF NORTH AMERICA, INC.

Preload on top of windshield to prevent wind noise:

Fig 24: Preloading On Top Of Windshield

Courtesy of BMW OF NORTH AMERICA, INC.

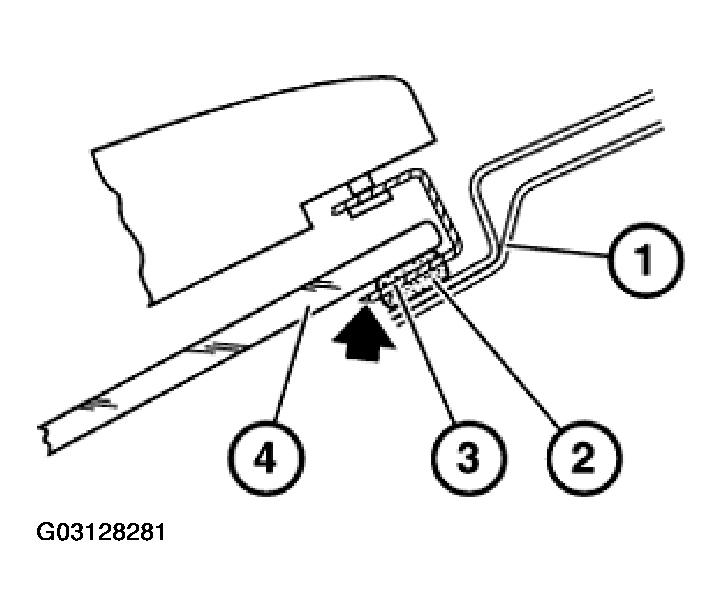

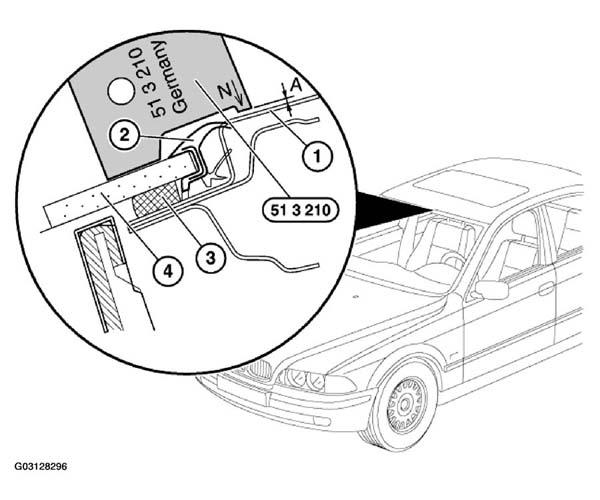

When installing windshield (4), make sure that it lies lower to roof outer skin (1). This is the only way of ensuring sufficient preload between the sealing lip (2) and the roof (prevention of wind noise). Check installation position of windshield (4) in middle of vehicle with special tool 51 3 210; a clearance (A) is permitted.

Dimensions:

Standard windows = designation "N":

(A) = 0 -1.5 mm

Anti-theft windows = designation "S":

(A) = 0 - 0.6 mm

Open both front doors.

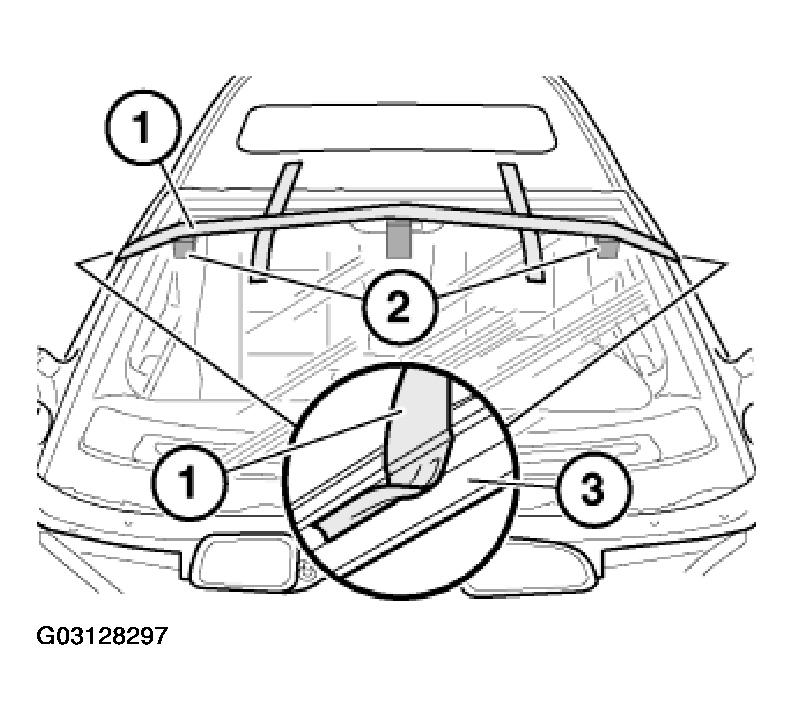

Secure HR foam blocks (2) with plastic adhesive tape (1) (Tesa).

Pretension windshield with plastic adhesive tape (1) (Tesa) until it is correctly positioned at top (see previous work step).

NOTE: Do not stick plastic adhesive tape (1) above A-pillar finisher (3) or ITS head airbag.

Fig 25: Pretensioning Windshield With Plastic Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Remove dirt from residual glue with Sika-Entferner 208 (sourcing reference: BMW Parts Service) before glue is hard. Do not press out windscreen glass again for this purpose. Hardened glue can only be removed by machine.

Assemble car.

After hardening time, remove support.

NOTE: Leaks are detected by spraying water under the sealing lips or by using an ultrasonic leak tester and can then be sealed with an appropriate nozzle.
