51 11 792 Replacing shock absorber for front left bumper (bumper removed)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

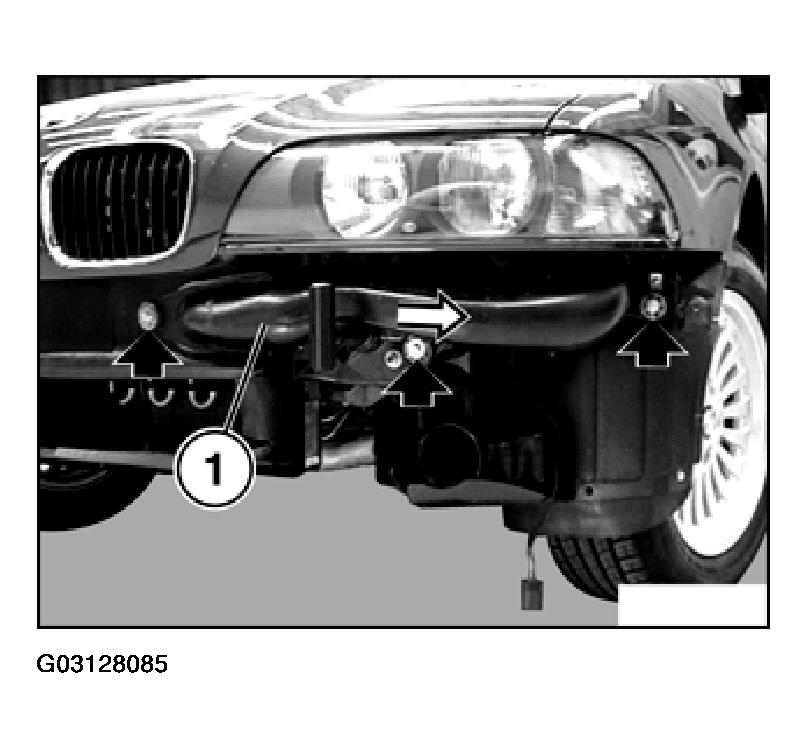

Unfasten screws and pull air guide (1) for intake filter housing outwards to remove.

Fig 1: Unfastening Screws & Pulling Air Guide For Intake Filter Housing Outwards

Courtesy of BMW OF NORTH AMERICA, INC.

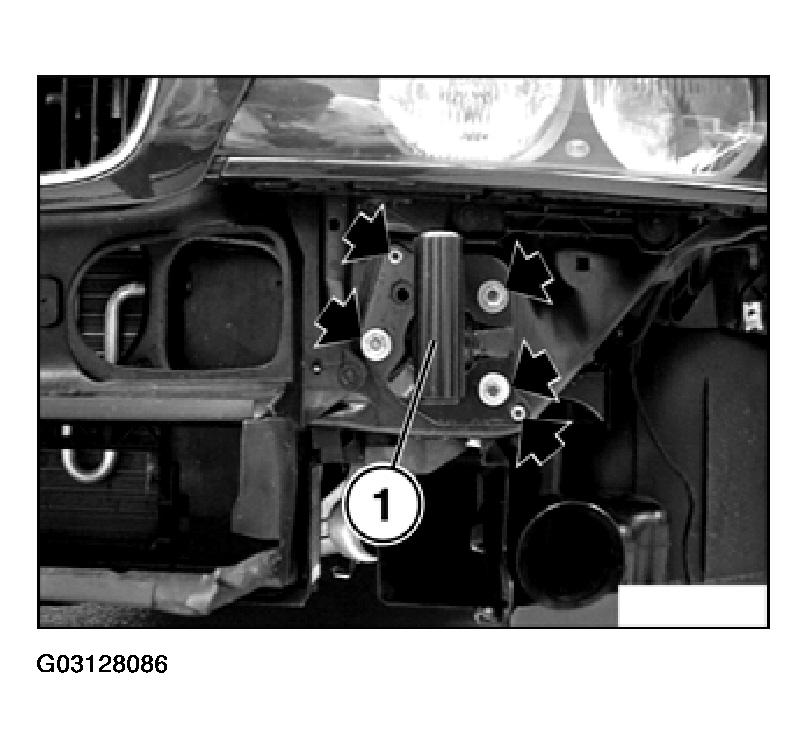

Unfasten screws and remove right shock absorber (1).

Fig 2: Unfastening Screws & Removing Right Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.
