51 11 701 Replacing left or right bracket for front bumper (bumper removed)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Installation:

If necessary, mark position of bracket on body.

Unfasten screws from wheel arch and remove bracket (1).

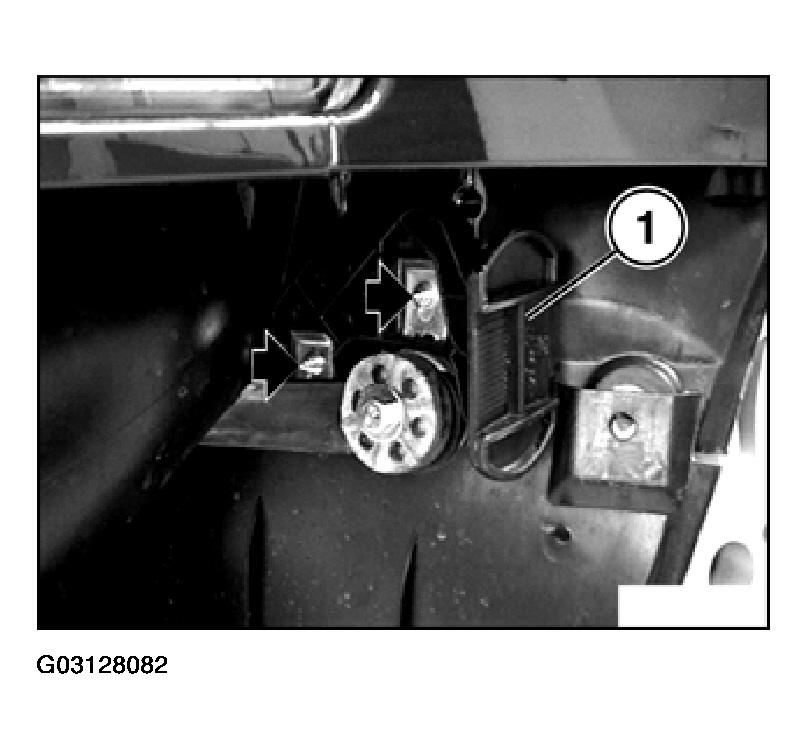

Fig 1: Unfastening Screws From Wheel Arch & Removing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

When exchanging bracket, adjust dimensions (A) and (B).

Dimension (B) is measured vertically downwards at distance (C) from side panel.

(A) approx. 18 mm

(B) approx. 32 mm

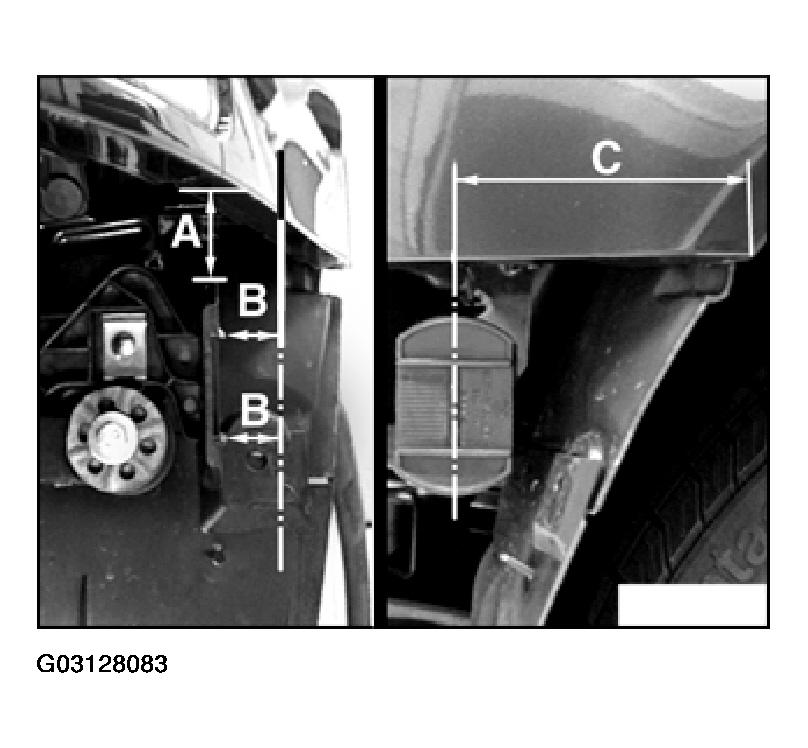

Fig 2: Adjusting Dimensions (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Ideal adjustment:

Gap (A) should be uniform down full length between bumper and aperture in body.

Dimension (A) = 5 +/- 1 mm

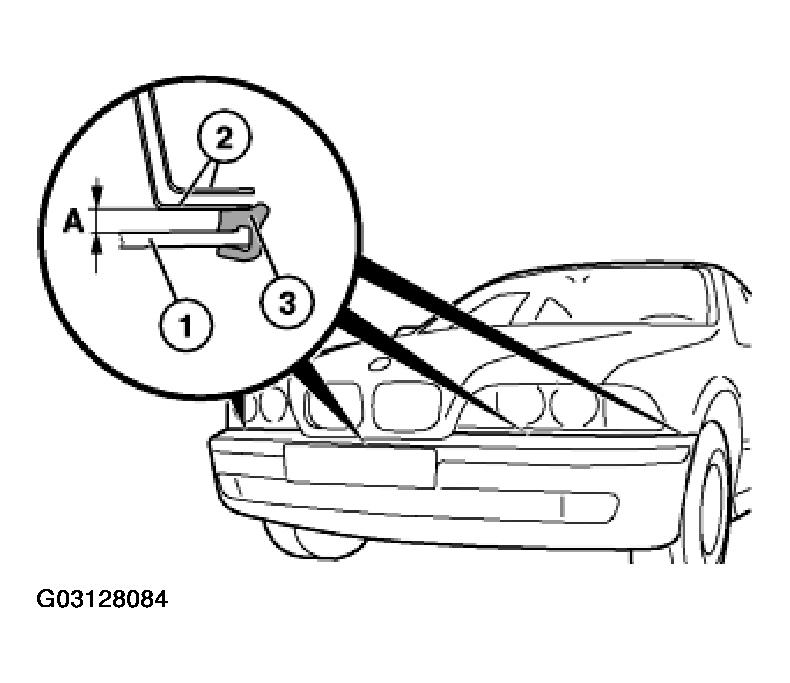

Fig 3: Adjusting Dimensions (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.
