Special tools required:

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

36 1 030
36 1 031
36 1 032
36 1 033
36 1 034
36 1 035
36 1 036

Remove wheel.

Mount wheel in balancing machine.

In order to avoid transformation errors, the wheel must be mounted on the balancing machine in the same manner as subsequently mounted on the car (e.g. valve facing down).

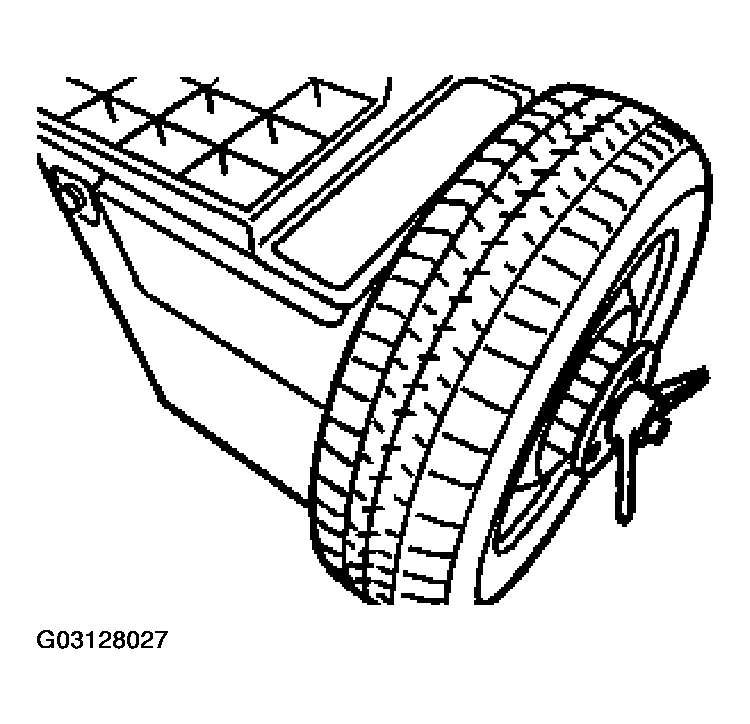

Fig 1: Mounting Wheel In Balancing Machine

G03128027

Courtesy of BMW OF NORTH AMERICA, INC.

Use suitable wheel center supplied with corresponding balancing machine.

Basic flange
Centre
Type flange
Clamping nut

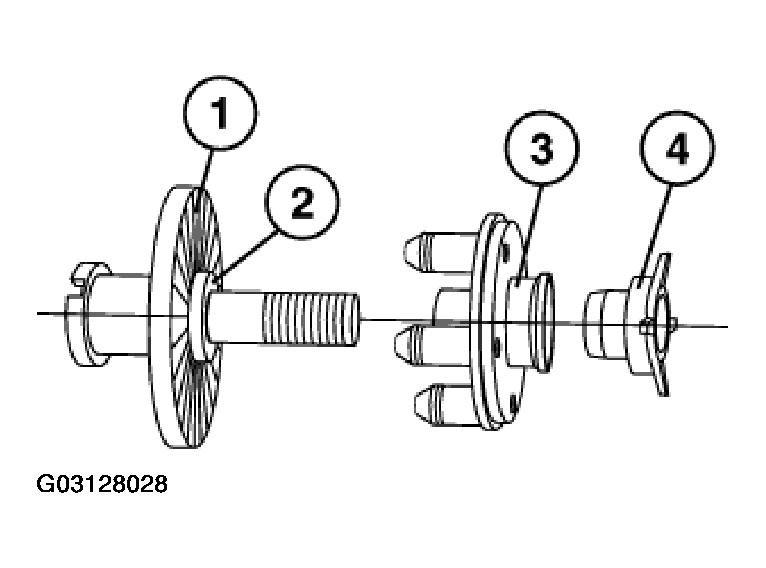

Fig 2: Identifying Centering Element Of Balancing Machine

G03128028

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 36 1 030 for testing.

Special tool 36 1 030 consists of:

Stand 36 1031
Post with clamp 36 1 032
Holder with clamp 36 1 033
Clamp 36 1 034
Measuring roller 36 1 035
Dial gauge 36 1 036

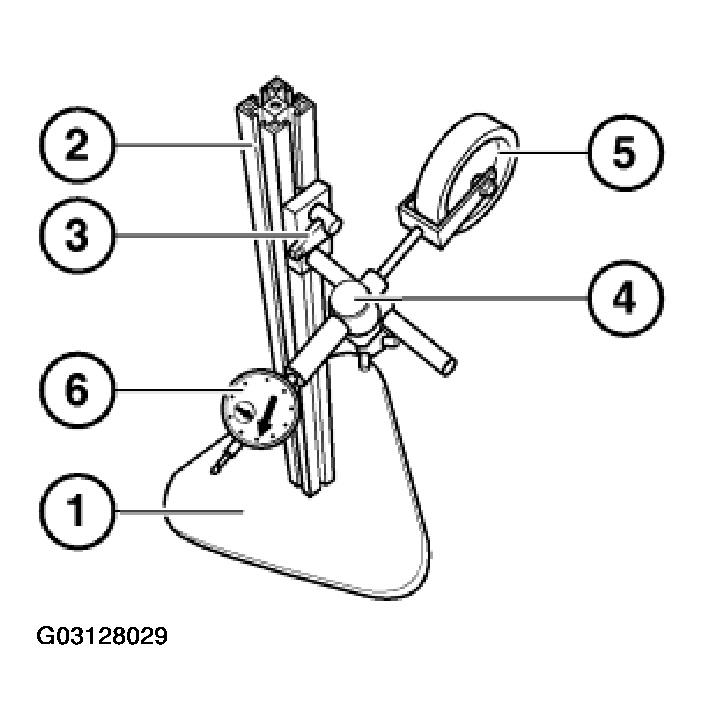

Fig 3: Identifying Special Tool 36 1 030 Components

G03128029

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 36 1 030 on tire tread.

Turn wheel by hand and measure max. tire radial runout,

refer to WHEEL AND TIRES - TECHNICAL DATA .

NOTE: Measuring device must be vertical to tire tread.

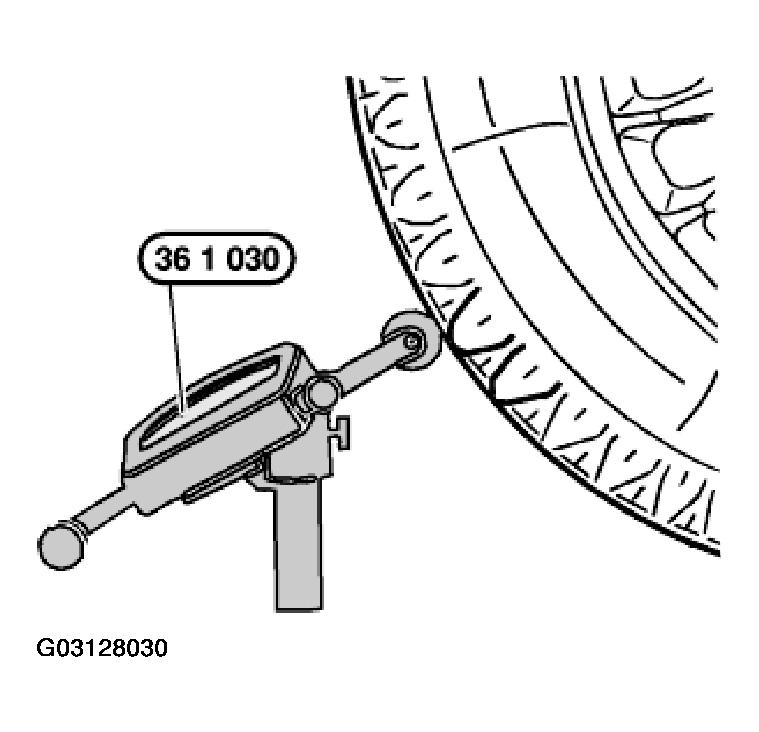

Fig 4: Positioning Special Tool 36 1 030 On Tire Tread

G03128030

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 36 1 030 on tire sidewall.

Turn wheel by hand and measure max. tire face runout,

refer to WHEEL AND TIRES - TECHNICAL DATA .

NOTE: Measuring device must be vertical to tire sidewall.
Never measure on printed text on tire!

If necessary, check disk wheel (rim) for radial and face runout.

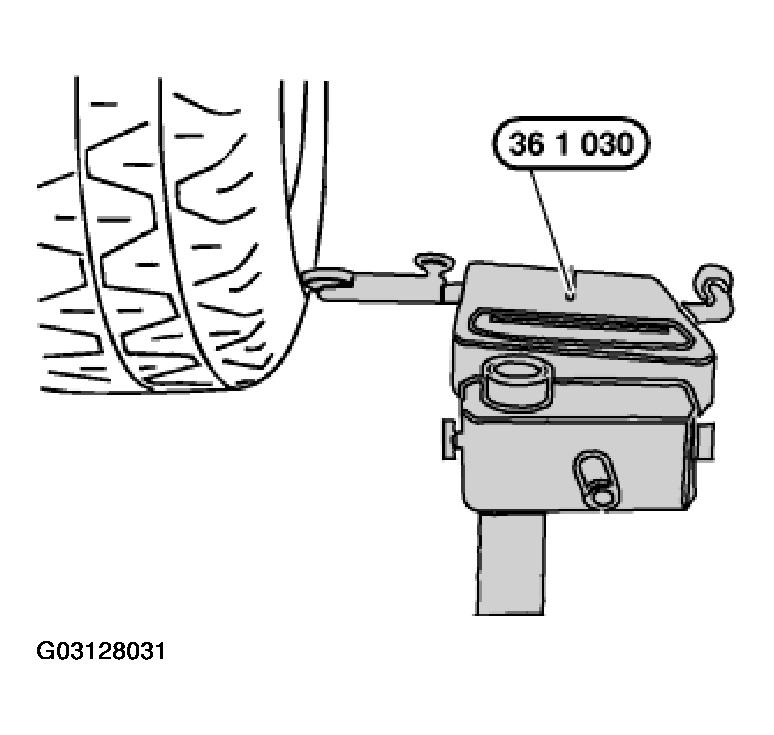

Fig 5: Positioning Special Tool 36 1 030 On Tire Sidewall

G03128031

Courtesy of BMW OF NORTH AMERICA, INC.
