Special tools required:

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

36 1 030

IMPORTANT: Wheel bearing must be OK!

Lift vehicle.

Check wheel with special tool 36 1 030 (measuring fixture) for lateral runout. Refer to WHEEL AND TIRES - TECHNICAL DATA .

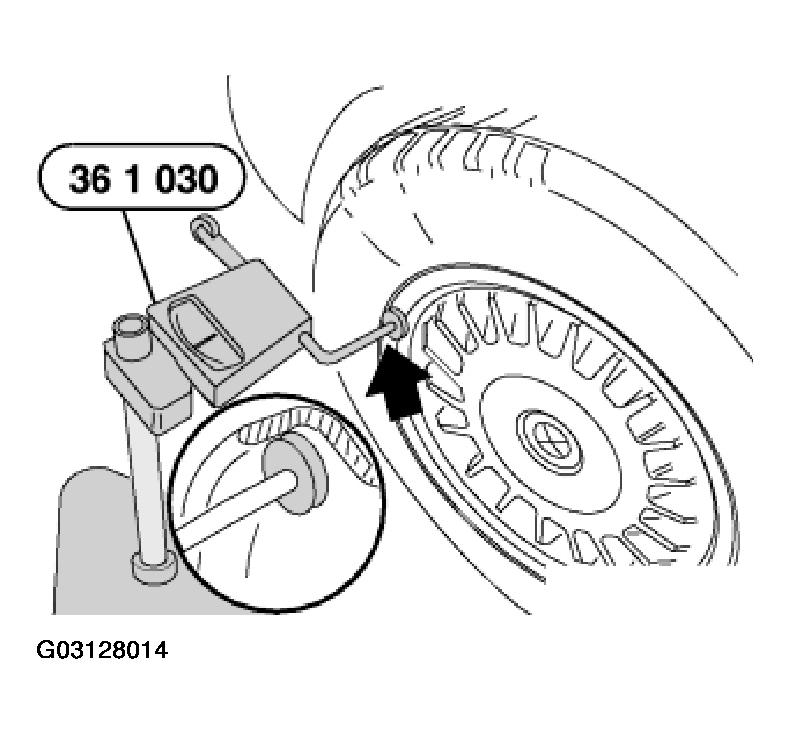

Fig 1: Checking Tire For Lateral Runout

Courtesy of BMW OF NORTH AMERICA, INC.

Check wheel with special tool 36 1 030 (measuring fixture) for radial runout.

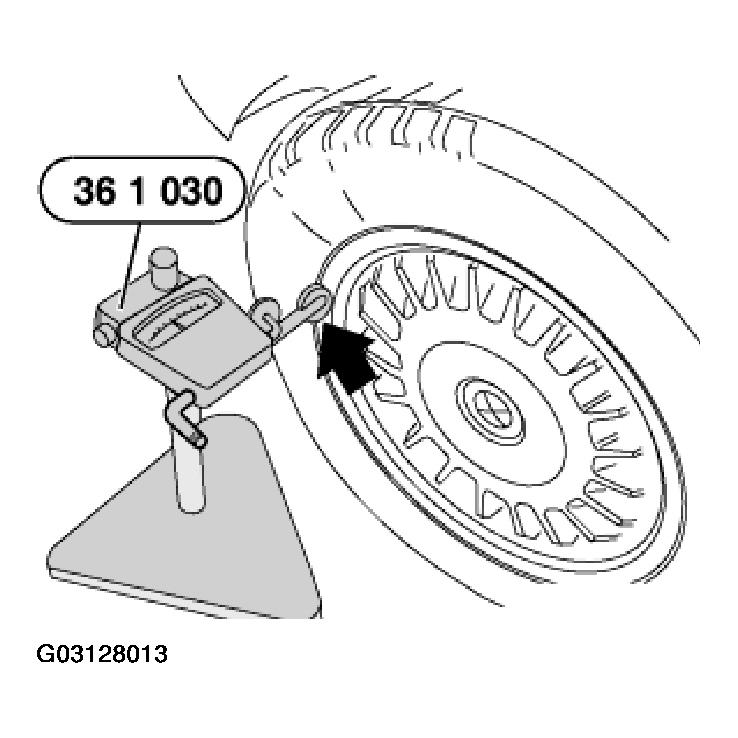

Fig 2: Checking Tire For Radial Runout

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, remove balance weights.

Check lateral runout of rim with special tool 36 1 030 (measuring fixture). Refer to WHEEL AND TIRES - TECHNICAL DATA .

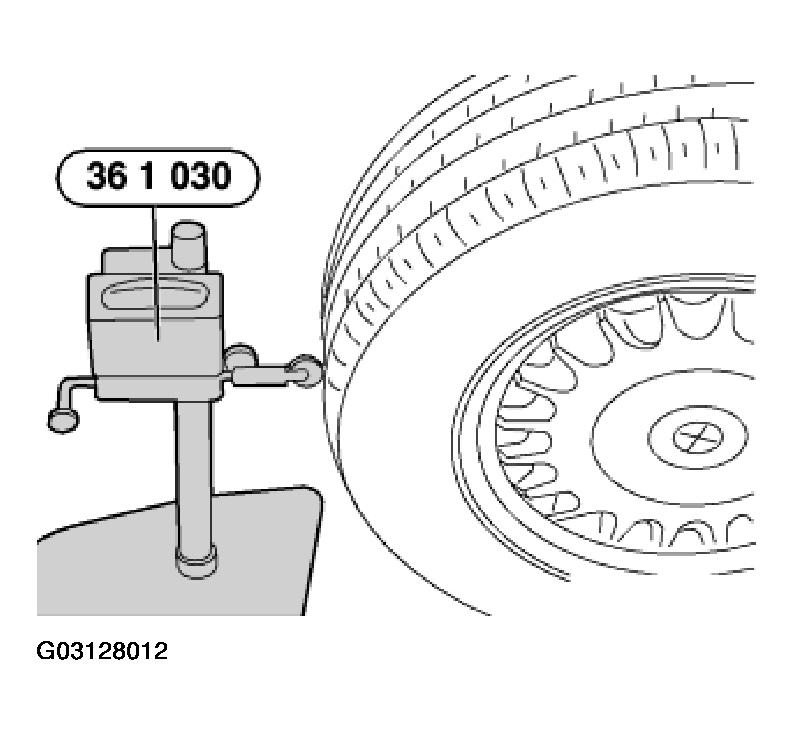

Fig 3: Checking Rim For Lateral Runout

Courtesy of BMW OF NORTH AMERICA, INC.

Check radial runout of rim with special tool 36 1 030 (measuring fixture). Refer to WHEEL AND TIRES - TECHNICAL DATA .

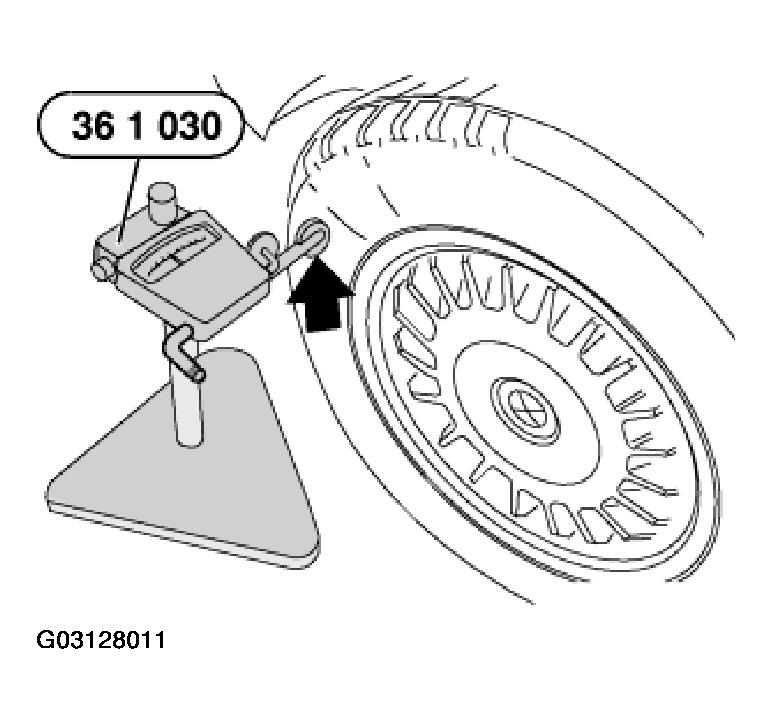

Fig 4: Checking Rim For Radial Runout

Courtesy of BMW OF NORTH AMERICA, INC.
