36 11 527 Removing and installing/replacing rear receiving antenna for RDC

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove wheel,

refer to36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL

Remove wheel arch trim.

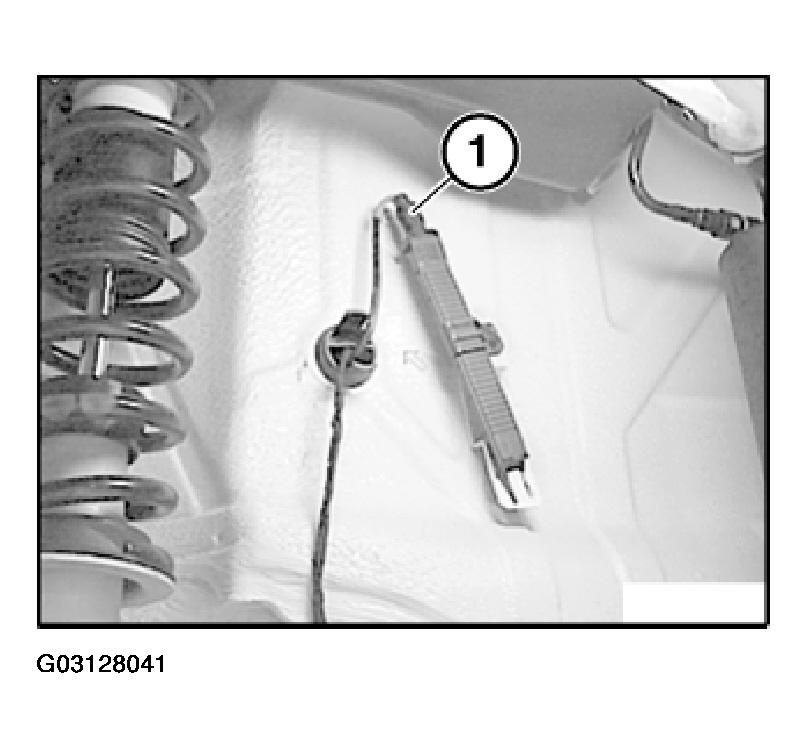

Unfasten plug connection (1) and disconnect.

Fig 1: Unfastening Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

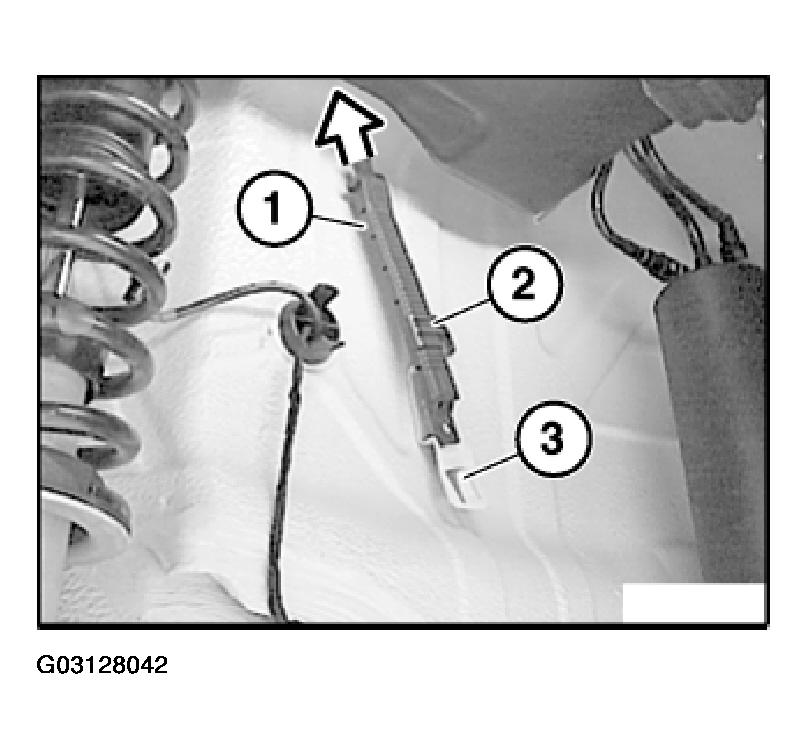

Release hexagon nut (2) and remove reception antenna (1) from fixture (3).

Fig 2: Removing Reception Antenna From Fixture

Courtesy of BMW OF NORTH AMERICA, INC.
