36 11 522 Removing and installing/replacing front receiving antenna for RDC
WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Remove wheel,
refer to36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL
Remove wheel arch trim.
refer to36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL
Remove wheel arch trim.

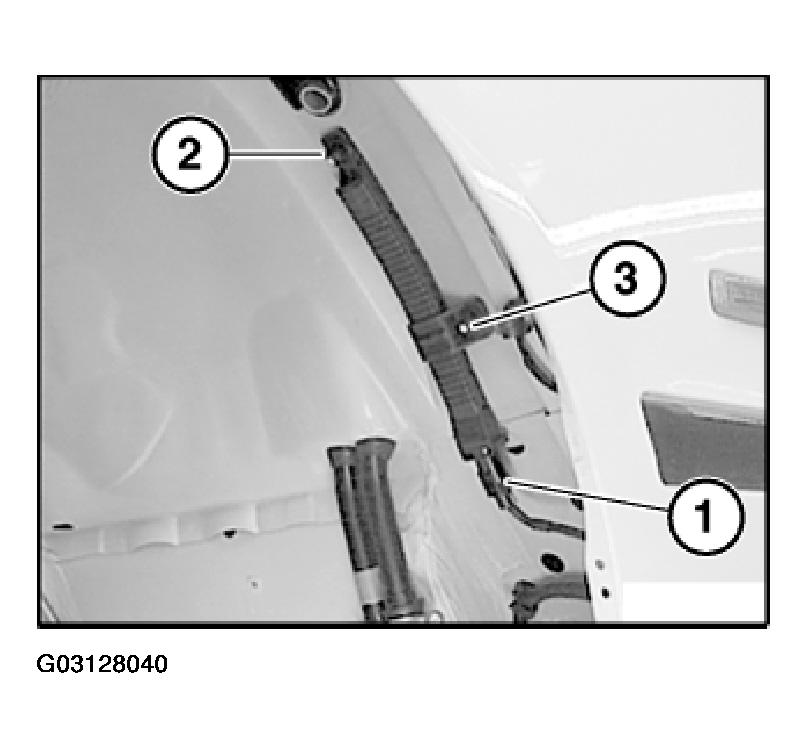

Unfasten plug connection (1) and disconnect.
Release hexagon nuts (2/3) and remove reception antenna.
