Special tools required:

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

23 1 040
24 1 040
26 1 070
26 1 110

Remove propeller shaft.

Lift out retainer.

Installation:

Replace retaining ring.

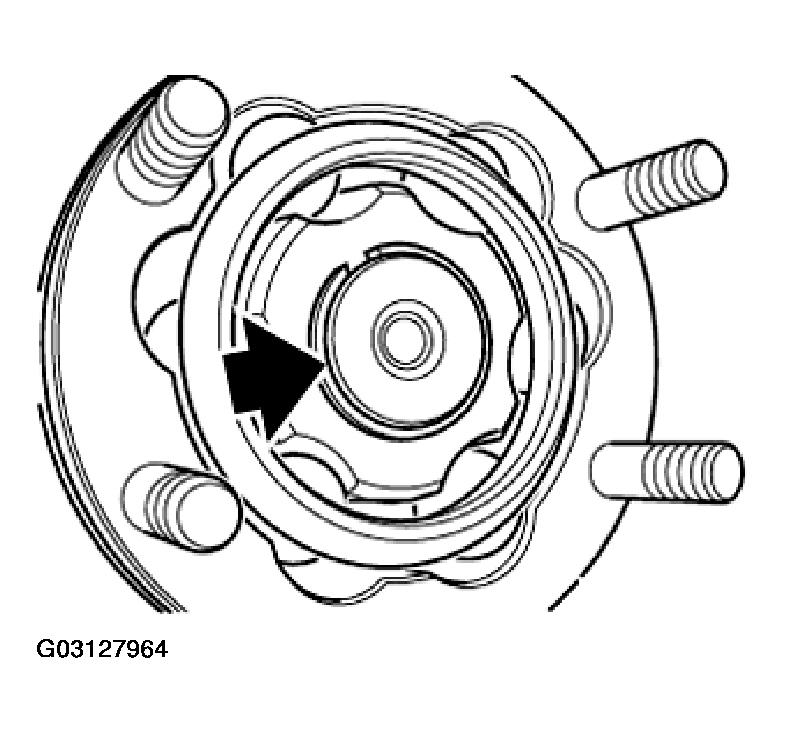

Fig 1: Locating Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Drive out knurled pin.

Installation:

Install shims (1).

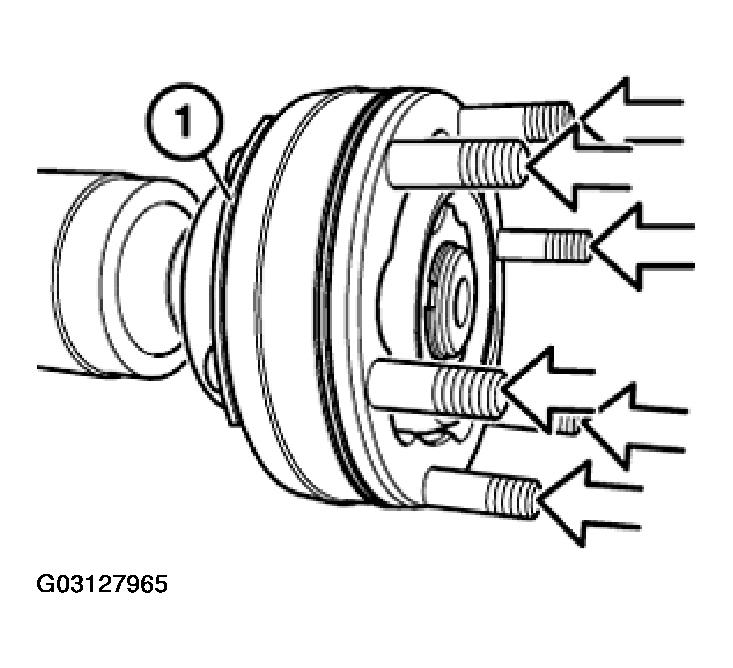

Fig 2: Installing Shims

Courtesy of BMW OF NORTH AMERICA, INC.

Press gaiter off constant velocity joint.

Installation:

Inject new grease into constant velocity joint from rubber gaiter and flange sides.

Insert sealing washer (1) in constant velocity joint.

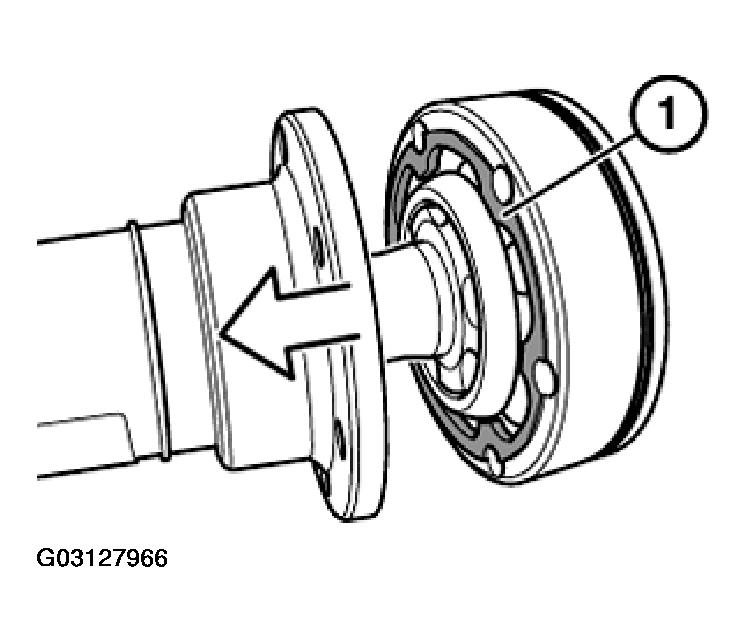

Fig 3: Inserting Sealing Washer In Constant Velocity Joint

Courtesy of BMW OF NORTH AMERICA, INC.

Detach constant velocity joint with special tool 26 1 070 or 26 1 110.

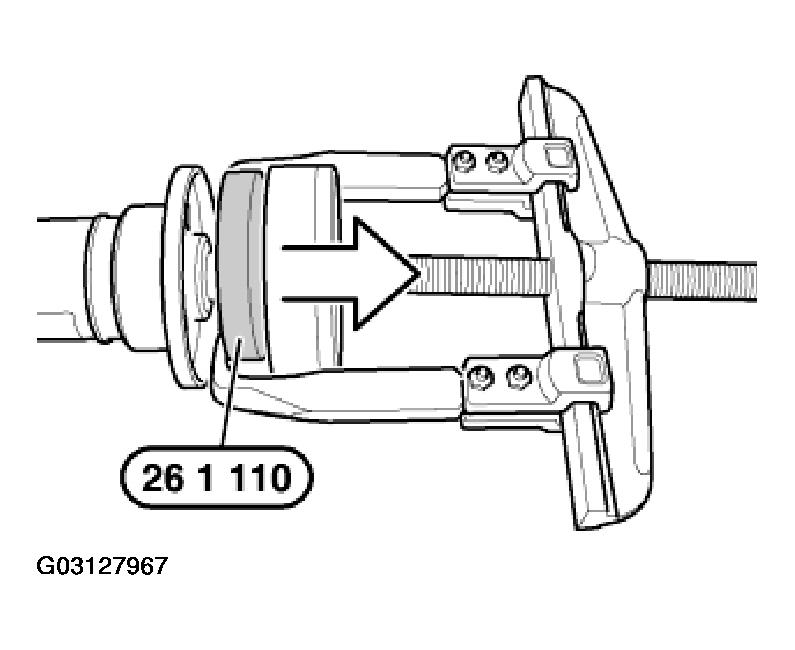

Fig 4: Detaching Constant Velocity Joint With Special Tool 26 1 070 Or 26 1 110

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Drive on constant velocity joint with special tool 23 1 040 or 24 1 040 as far as it will go.

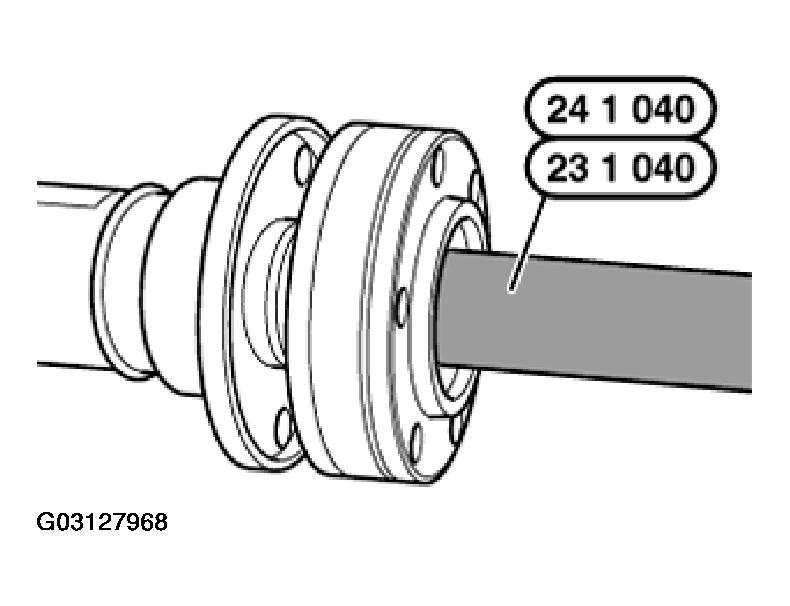

Fig 5: Driving On Constant Velocity Joint With Special Tool 23 1 040 Or 24 1 040

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Shoulder (1) for sealing washer must point to gaiter.

Toothing/splines must be free from grease.

Thread locking: apply Loctite 648.

IMPORTANT: Keep Loctite out of ball paths.

Clean toothing/splines and apply a light coating of oil.

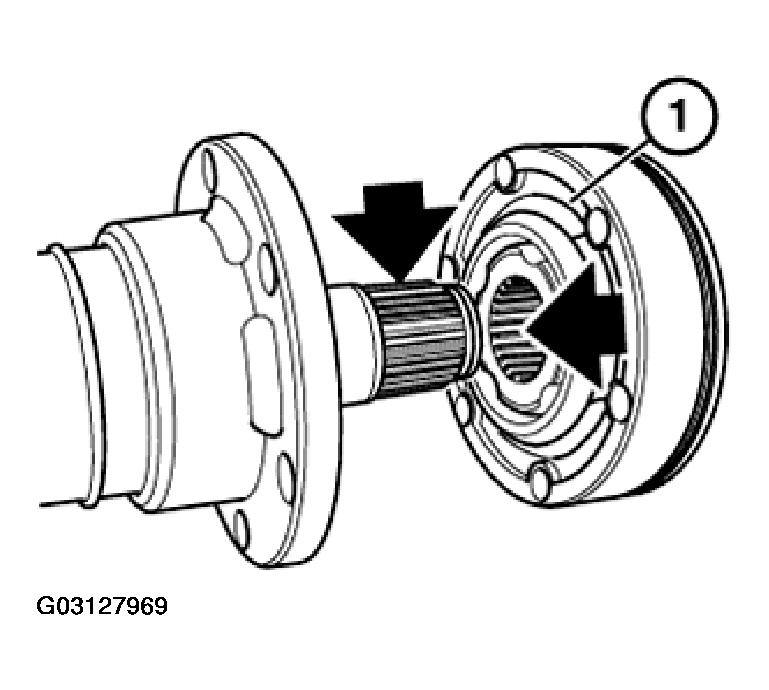

Fig 6: Identifying Shoulder For Sealing Washer

Courtesy of BMW OF NORTH AMERICA, INC.
