26 11 051 Replacing joint disk for propeller shaft

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove propeller shaft, refer to 26 11 000 REMOVING AND INSTALLING COMPLETE PROPELLER SHAFT .

Unfasten screws and remove joint disk.

Installation:

The screw connection may only be tightened by means of the nut.

Tightening Torque. Refer to PROPELLER SHAFT - TIGHTENING TORQUES .

Fig 1: Unfastening Screws Of Joint Disk

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Joint disk must be installed in such a way that arrows point to flange arms.

Fig 2: Identifying Joint Disk

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

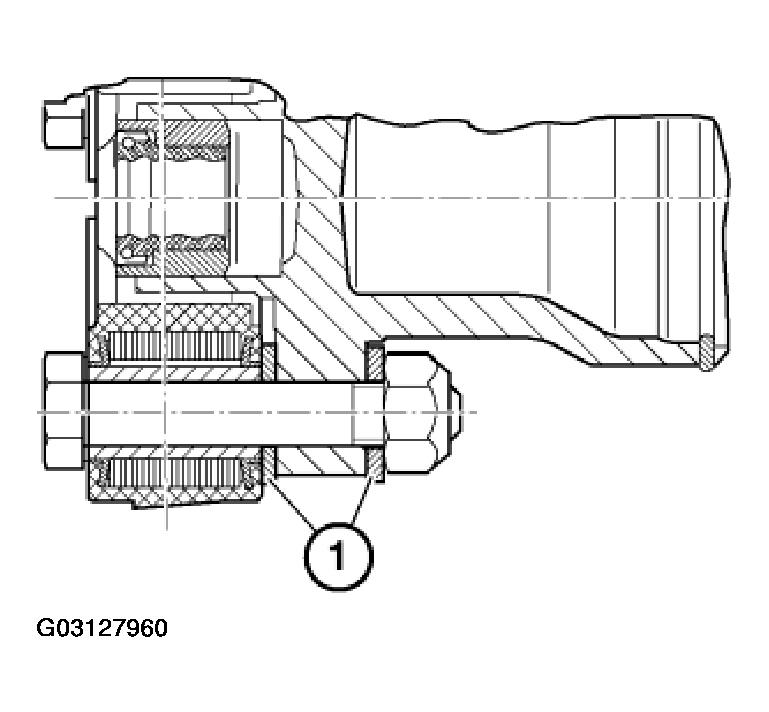

To prevent contact corrosion, Dacromet-coated washers (1) must be installed with aluminum drive shafts.

Fig 3: Identifying Dacromet-Coated Washers

Courtesy of BMW OF NORTH AMERICA, INC.
