Special tools required:

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

312 220

Unscrew and remove splash guard.

WARNING: Scalding hazard!
Only perform this work after engine has cooled down.

Support exhaust system with special tool 31 2 220.

NOTE: Weight of exhaust system is approx. 40 kg.

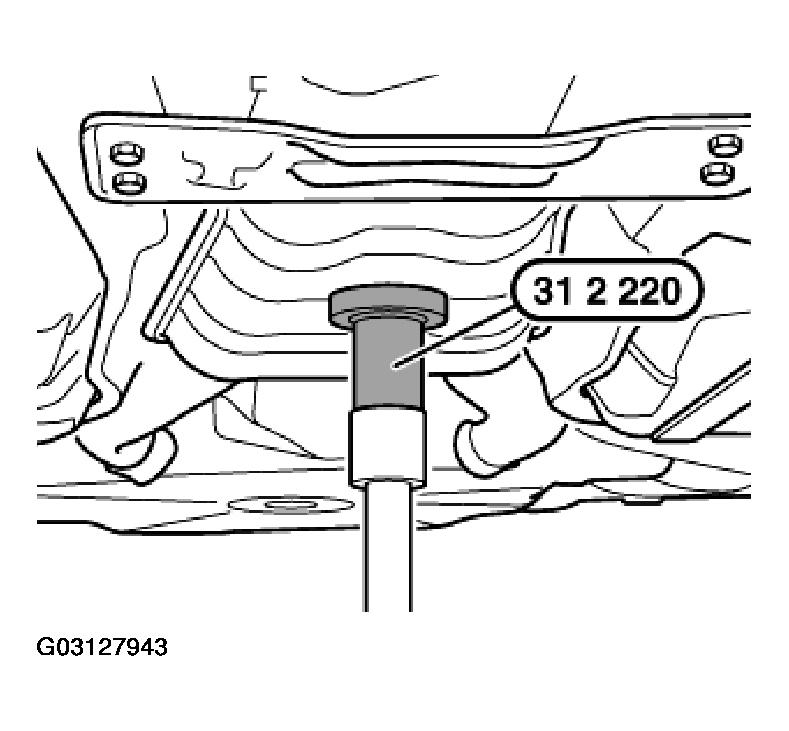

Fig 1: Supporting Exhaust System

Courtesy of BMW OF NORTH AMERICA, INC.

Detach suspension on catalytic converters at rear from body.

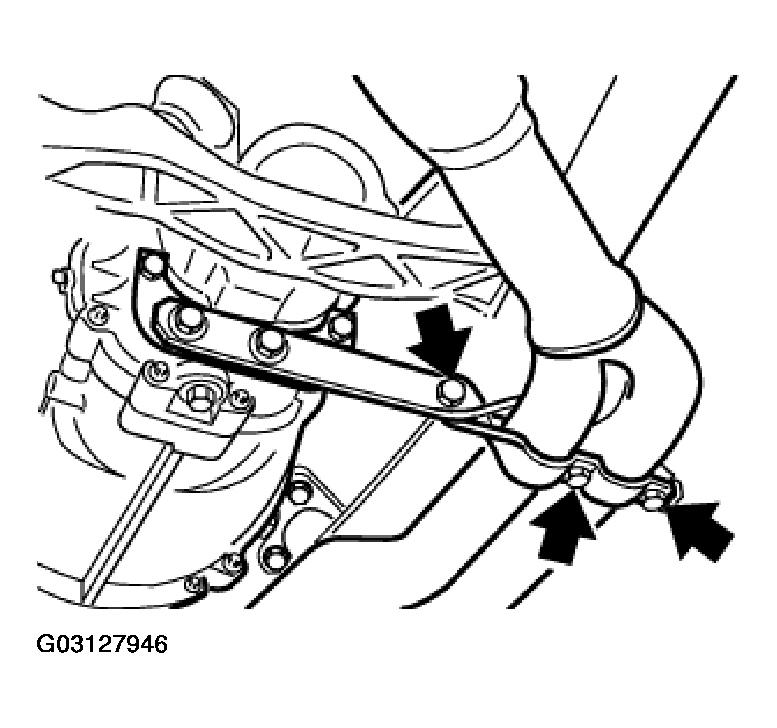

Fig 2: Detaching Suspension On Catalytic Converters

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw connection (1) of flanges on exhaust manifold.

Remove flange element (2).

NOTE: Shown on E46.

Installation:

Replace gaskets.

Replace self-locking nuts.

Coat thread with copper paste - CRC.

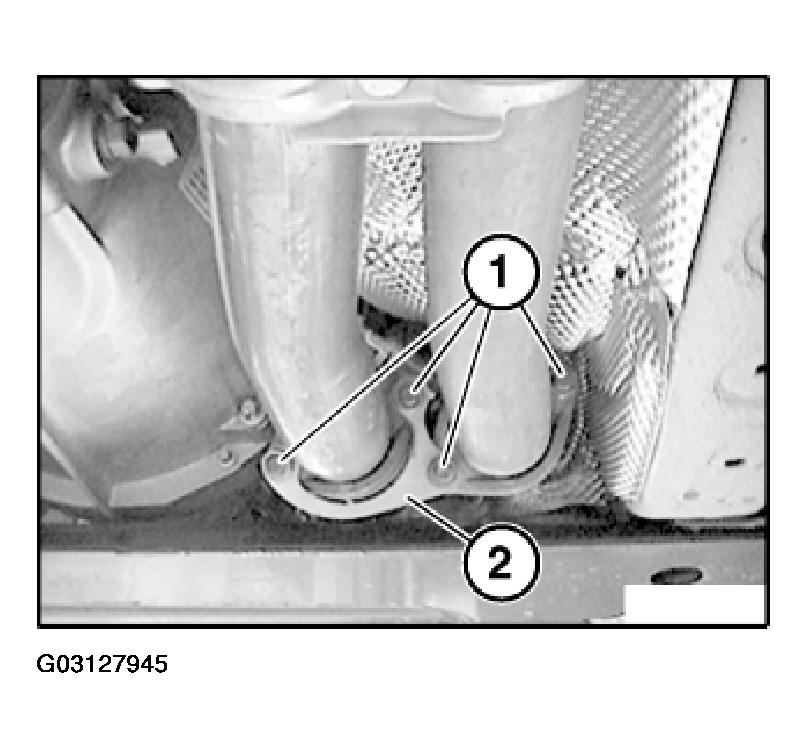

Fig 3: Removing Flange Element

Courtesy of BMW OF NORTH AMERICA, INC.

Release hexagon nuts and hexagon screws. Remove exhaust carrier.

Installation:

After complete installation of exhaust system, align exhaust carrier so that it is free from tension.

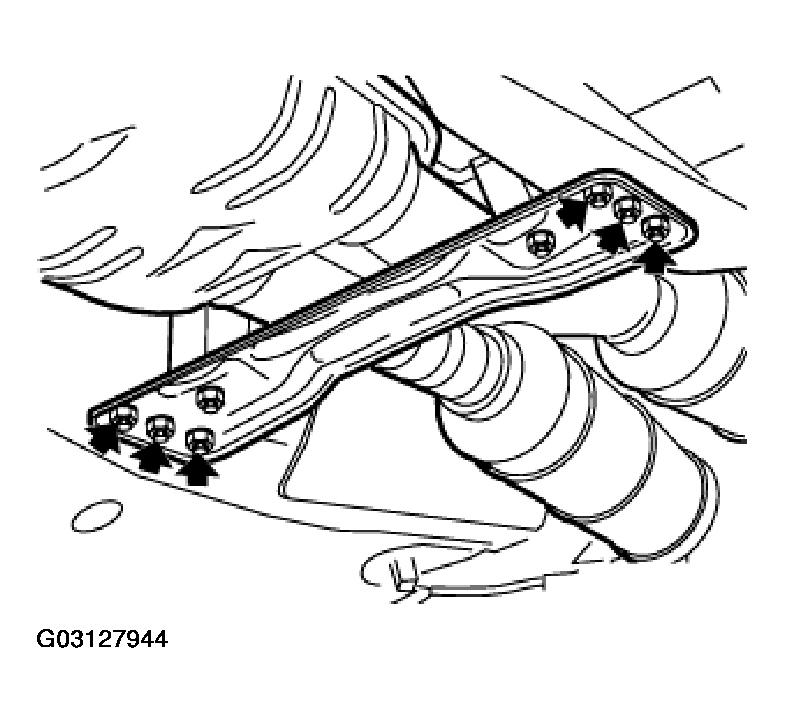

Fig 4: Releasing Hexagon Nuts &d Hexagon Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw connection of bracket for center muffler on body.

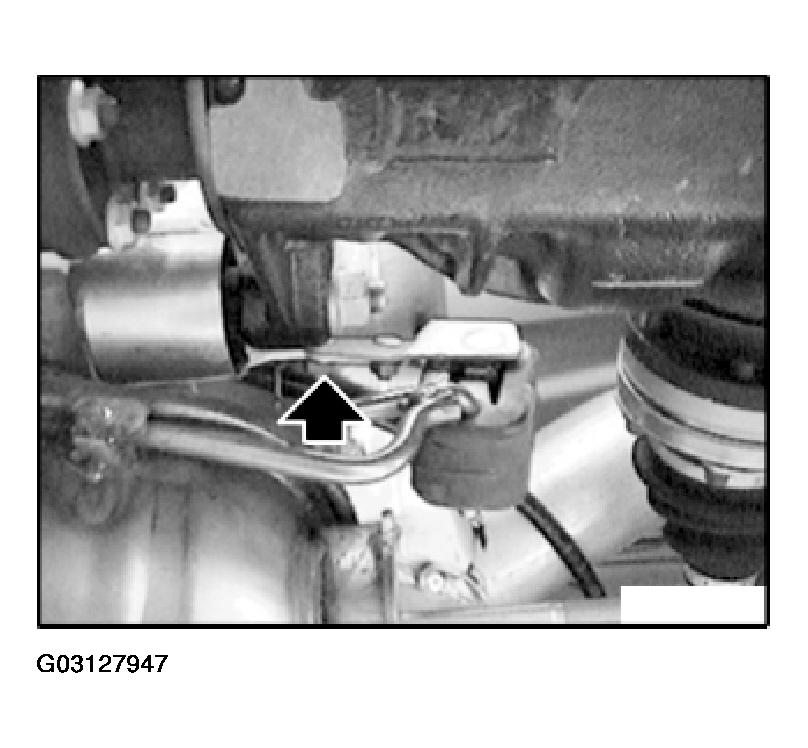

Fig 5: Releasing Center Muffler Bracket Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Risk of injury!
Removal of exhaust system must be carried out with assistance of a second person.

NOTE: Weight of exhaust system is approx. 40 kg.

Release screw connection of bracket for rear muffler on body. Remove complete exhaust system.

If necessary, remove vibration damper (1) and fit on new rear muffler.

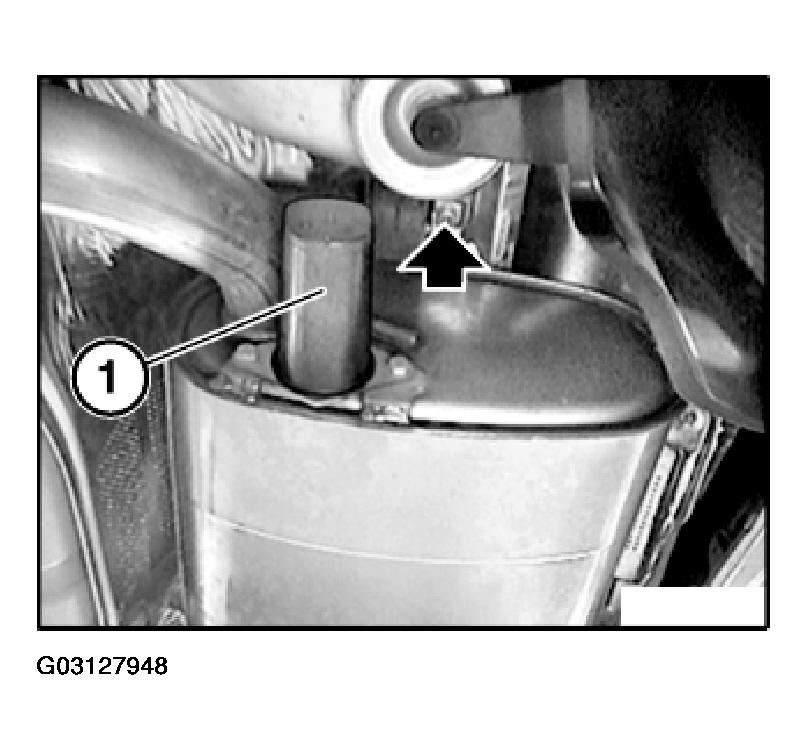

Fig 6: Removing Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.
