17 11 530 Removing and installing cassette (condenser for air conditioner)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove radiator. See 17 11 000 Removing and installing radiator (M54)

NOTE: The condenser for the A/C system is integrated in the cassette. At the same time, depending on the model of vehicle, the individual coolers for steering hydraulics, automatic transmission and engine oil are installed in the cassette.

Disconnect lines for power steering and if necessary engine and transmission oil coolers.

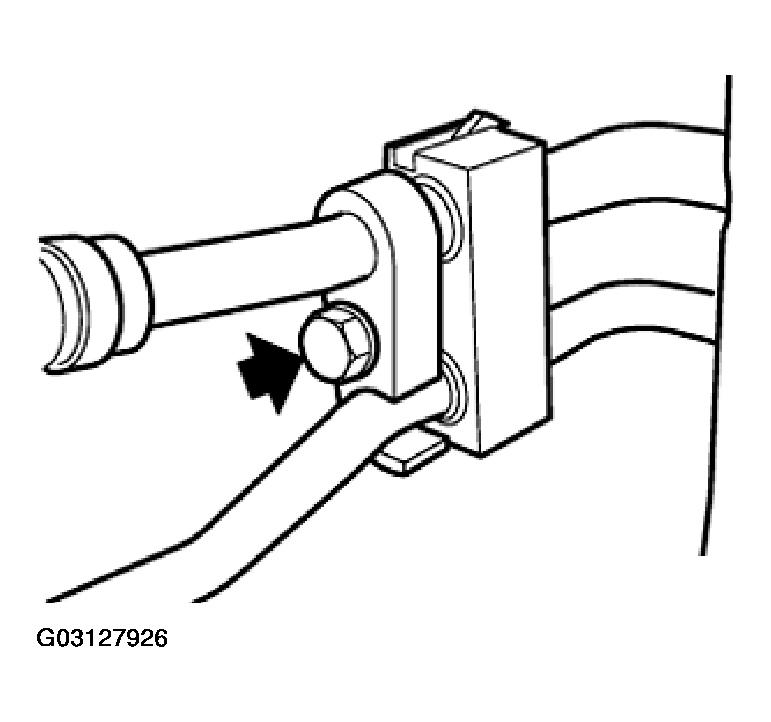

Fig 1: Disconnecting Power Steering Lines

G03127926

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing rings.

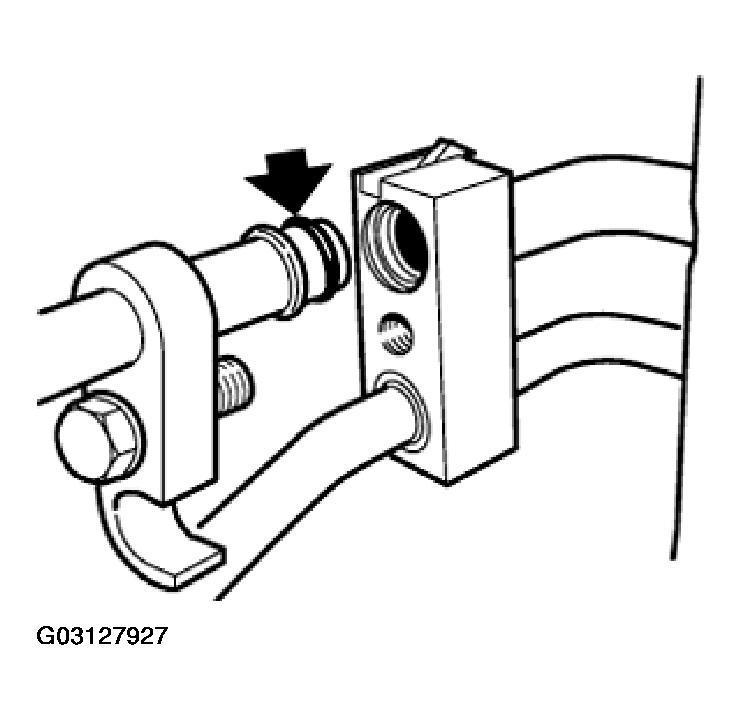

Fig 2: Replacing Sealing Rings

G03127927

Courtesy of BMW OF NORTH AMERICA, INC.

Draw off refrigerant from A/C system.

Remove lines from air conditioner.

Installation:

Replace sealing rings.

Evacuate and fill A/C system.

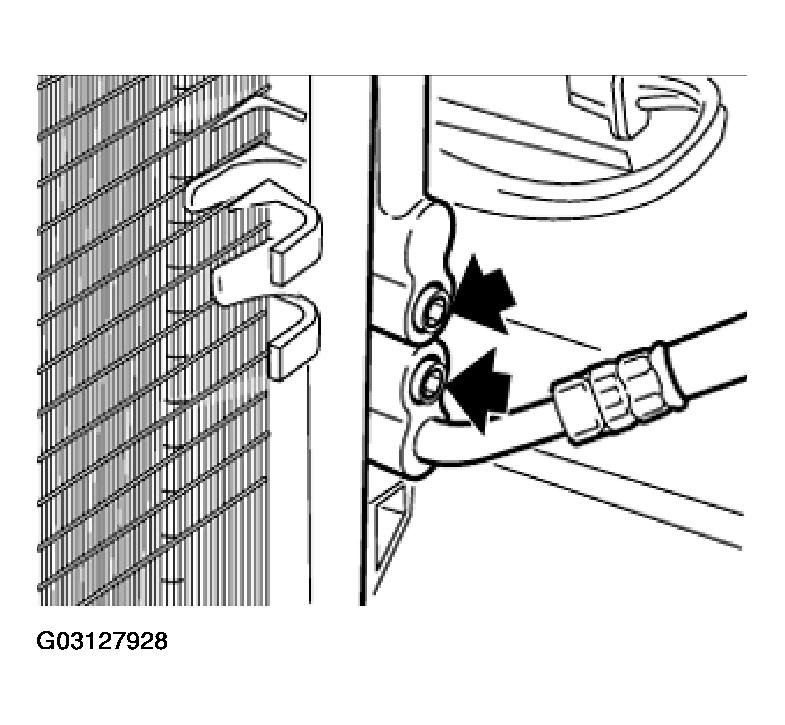

Fig 3: Removing Lines From Air Conditioner

G03127928

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt cassette backwards slightly and lift upwards to remove.

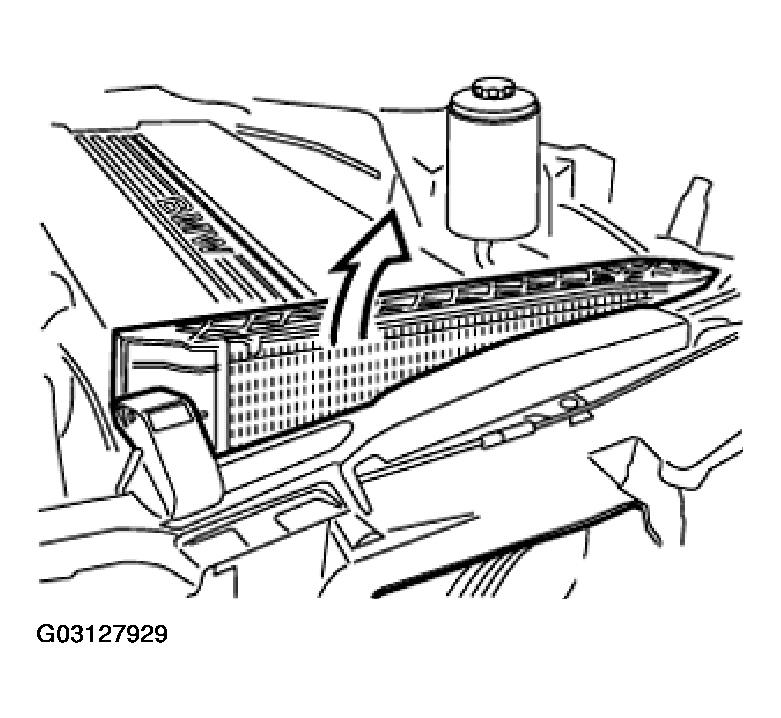

Fig 4: Removing Cassette

G03127929

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Note rubber mounts on front wall.

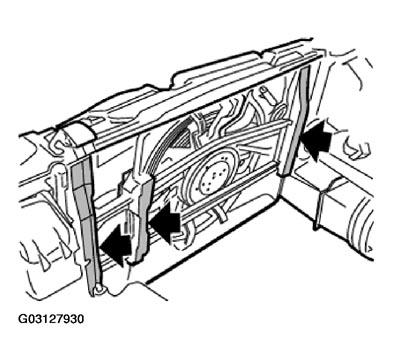

Fig 5: Installing Rubber Mounts On Front Wall

G03127930

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check rubber mounts on left and right sides.

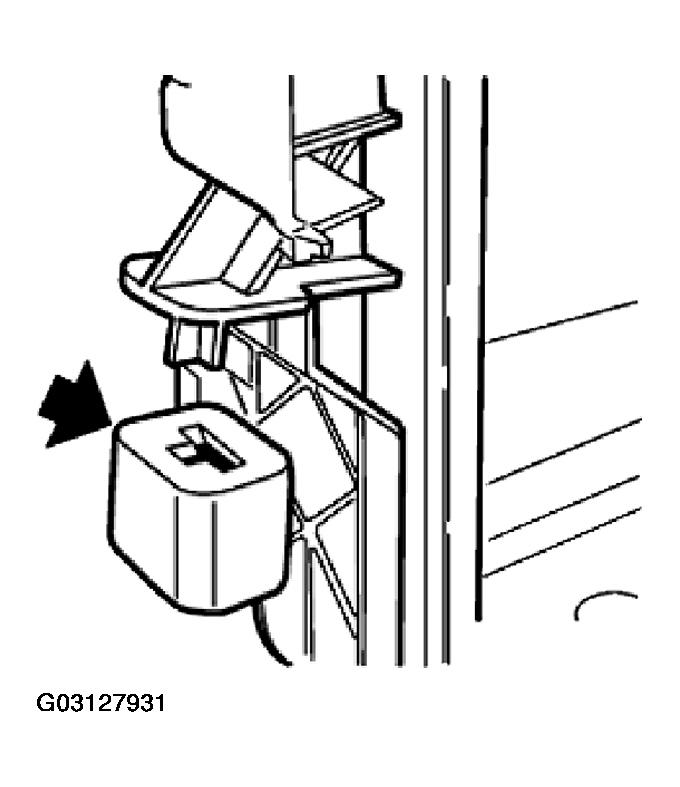

Fig 6: Installing Rubber Mounts On Left & Right Sides

G03127931

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install cassette in left and right retainers and push forwards as far as it will go.

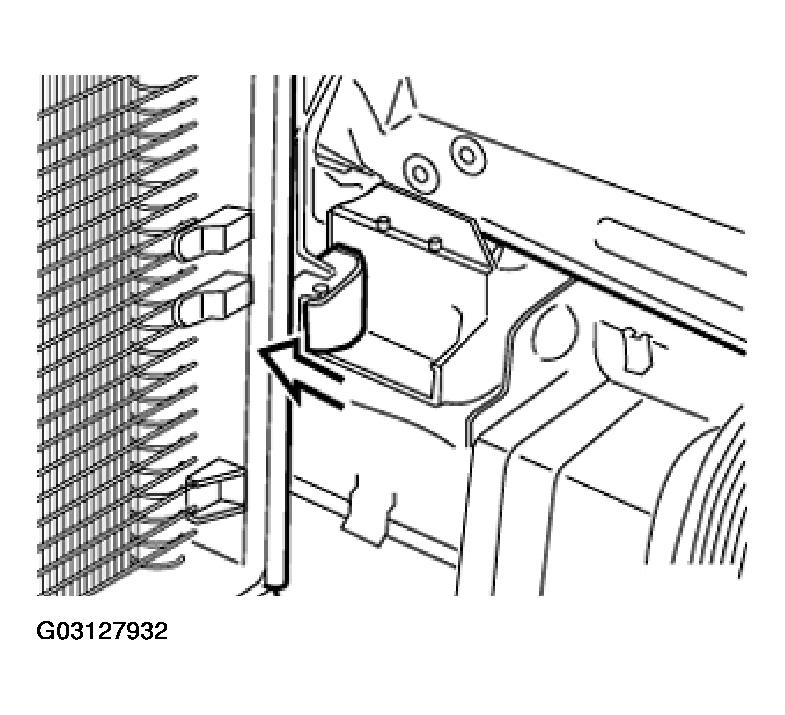

Fig 7: Installing Cassette In Left & Right Retainers

G03127932

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check rubber profile seals.

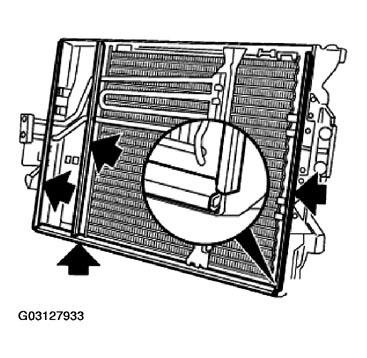

Fig 8: Checking Rubber Profile Seals

G03127933

Courtesy of BMW OF NORTH AMERICA, INC.
