17 00 005 Draining off and topping up coolant (M54)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding! Only perform this work after engine has cooled down.

Recycling

Catch and dispose of drained coolant. Observe country-specific waste-disposal regulations.

NOTE: Follow instructions for working on cooling system.

Draining coolant:

Open cap on coolant expansion tank.

Slacken vent plug.

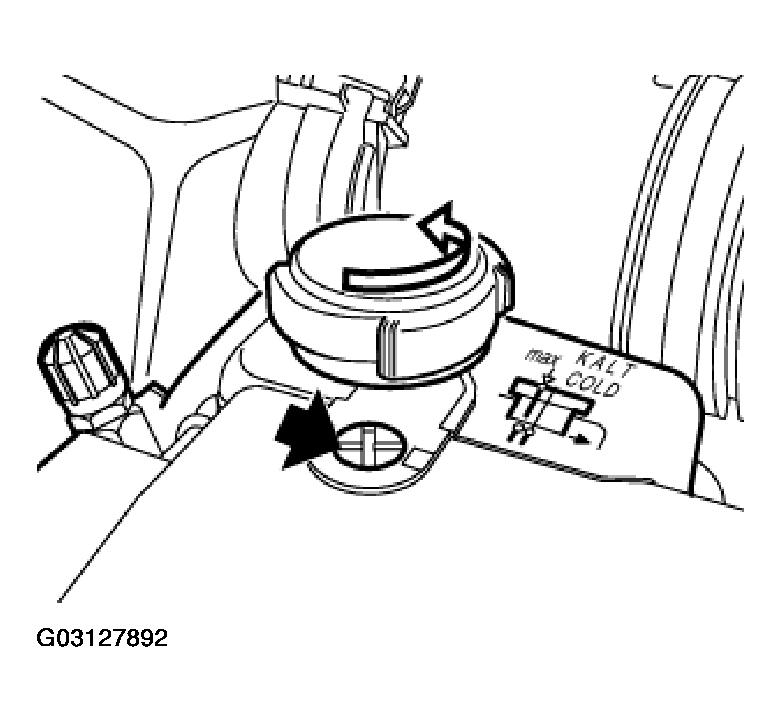

Fig 1: Opening Coolant Expansion Tank

Courtesy of BMW OF NORTH AMERICA, INC.

Remove front splash guard. See 13 32 051 REPLACING FUEL FILTER (M54)

Open drain plug (1) at bottom of radiator.

Installation:

Replace seal.

Drain, catch and dispose of coolant.

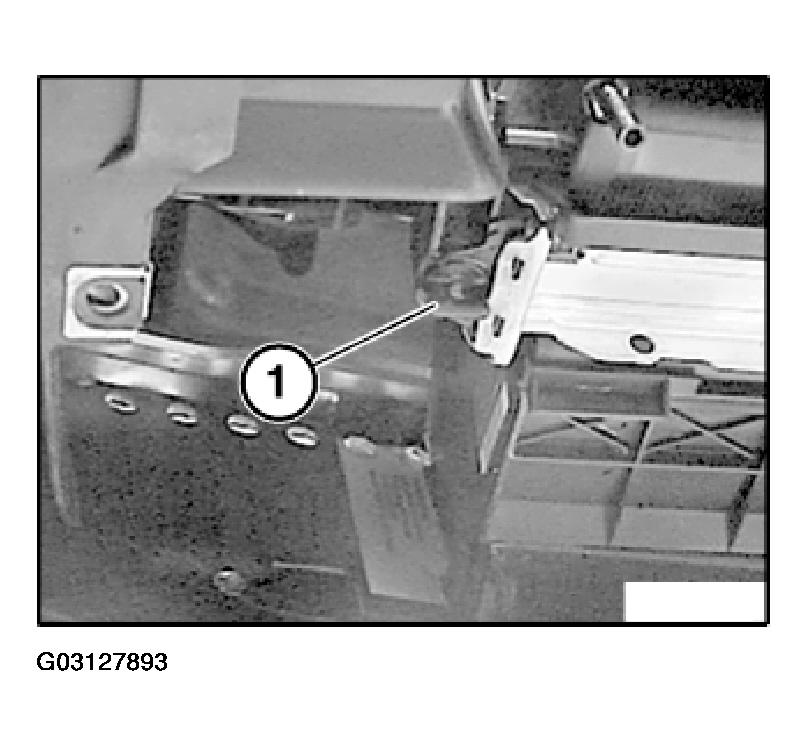

Fig 2: Draining Coolant From Radiator

Courtesy of BMW OF NORTH AMERICA, INC.

Open drain plug on engine block.

Installation:

Replace seal.

Tightening torque. Refer to COOLING SYSTEM - TIGHTENING TORQUES .

Drain, catch and dispose of coolant.

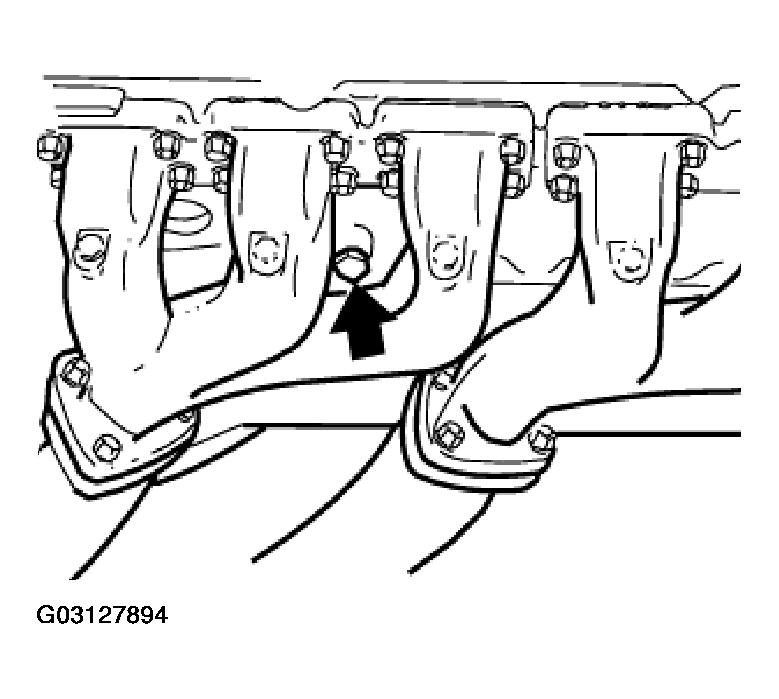

Fig 3: Opening Drain Plug On Engine Block

Courtesy of BMW OF NORTH AMERICA, INC.

Adding coolant:

NOTE: Slowly fill coolant expansion tank with coolant.

Screw in vent plug when bubble-free coolant emerges.

Pour coolant into coolant expansion tank up to max. cold fill level.

NOTE: The tank mark indicates the fluid level at approx. 20°C.

Use only recommended coolant.

Vent cooling system and check for leaks.

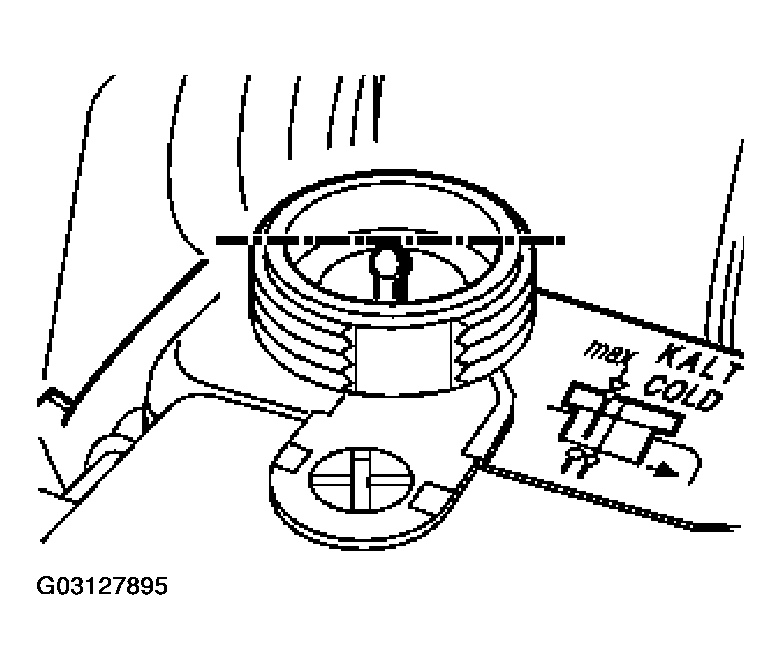

Fig 4: Identifying Coolant Filling Level

Courtesy of BMW OF NORTH AMERICA, INC.
