13 63 590 Replacing fuel pump relay

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Interrogate fault memory of DME control unit.

Switch off ignition.

Fold down right side trim in luggage compartment.

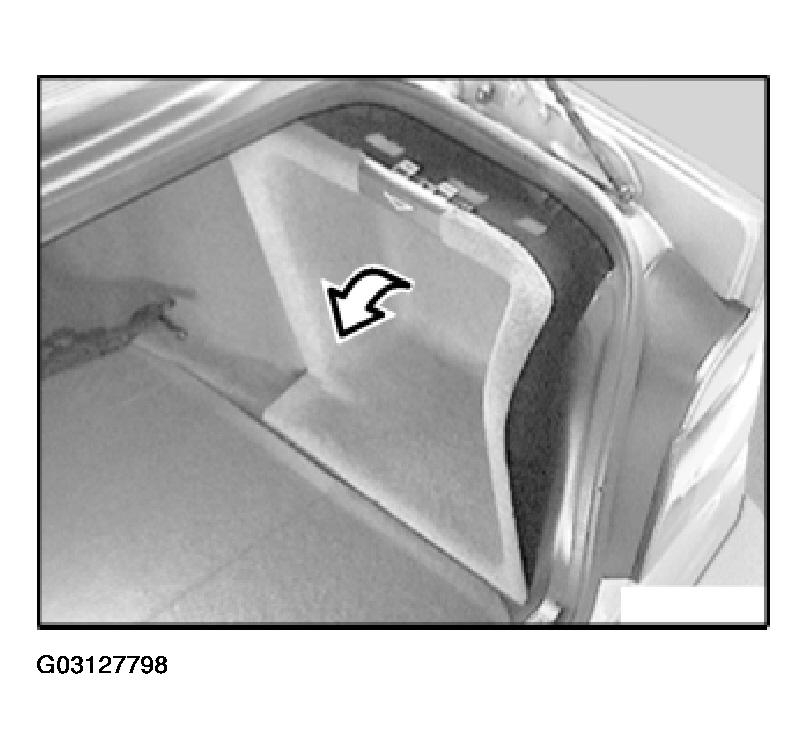

Fig 1: Folding Right Side Trim In Luggage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Detach fuel pump relay (1).

After removal of fuel pump relay and during engine starting sequence:

the fuel pump no longer operates,
the engine does not start.

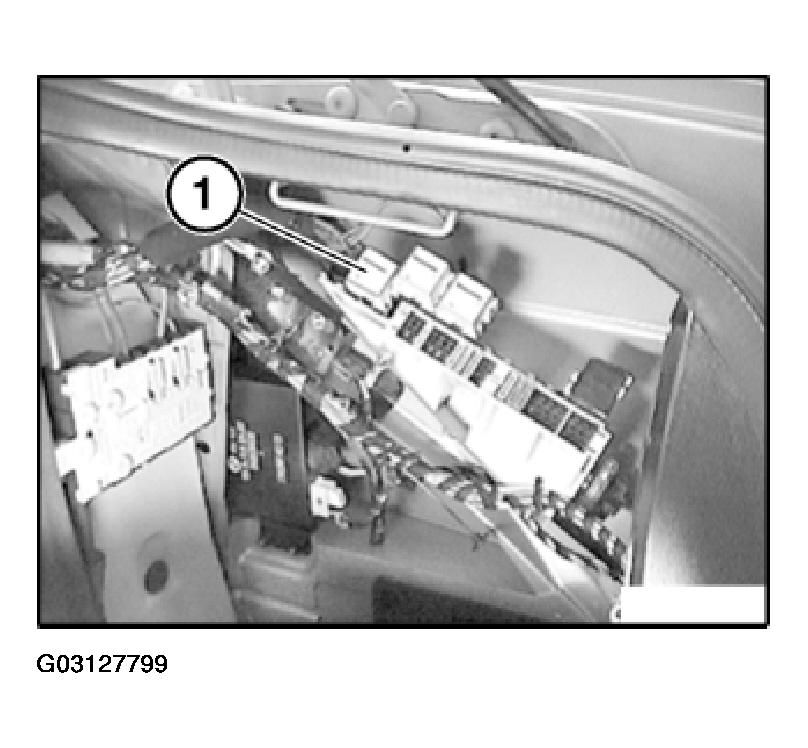

Fig 2: Detaching Fuel Pump Relay

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit.
Check stored fault messages.
Rectify faults.
Now clear the fault memory.
