13 41 500 Replacing idle speed control valve (M52TU, M54)

Necessary preliminary tasks:

• Switch off ignition.
• Disconnect battery ground wire.
• Observe instructions for disconnecting and connecting battery.

M52TU only:

Remove intake filter housing.

Pull Bowden cable upwards out of holder (1) and suspend from throttle.

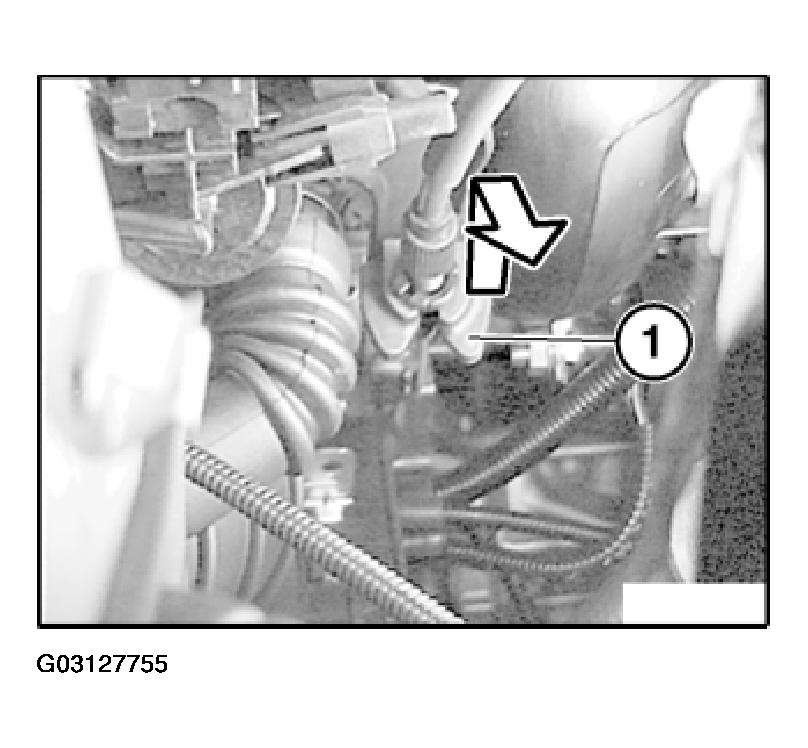

Fig 1: Removing Bowden Cable From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen hose clamps (1).

Detach air intake hose section from throttle assembly and idle actuator.

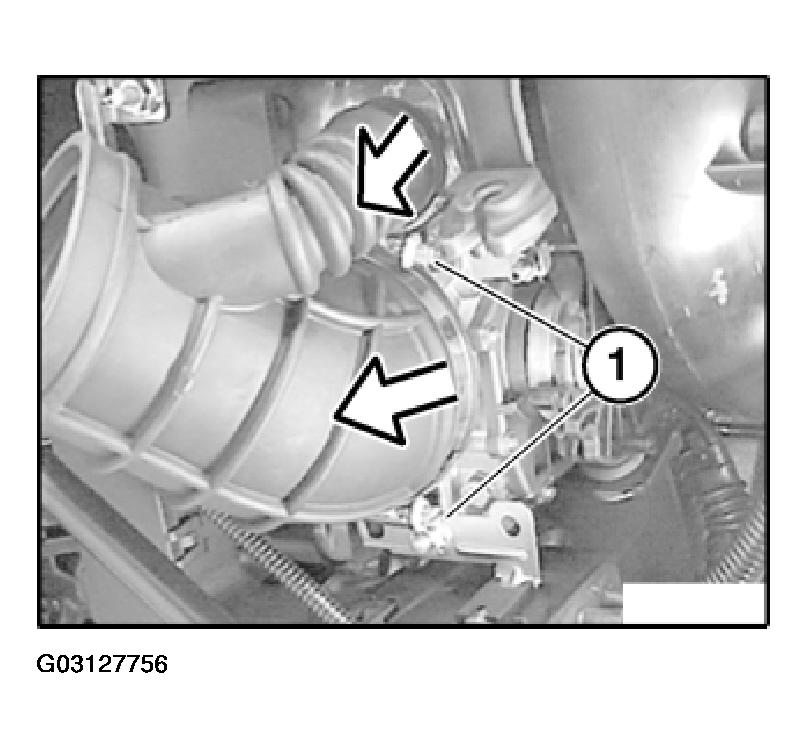

Fig 2: Detaching Air Intake Hose Section From Throttle Assembly & Idle Actuator

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

To facilitate installation, fit air-mass flow sensor with intake hose (1). Coat intake hose (1) with anti-seize agent.

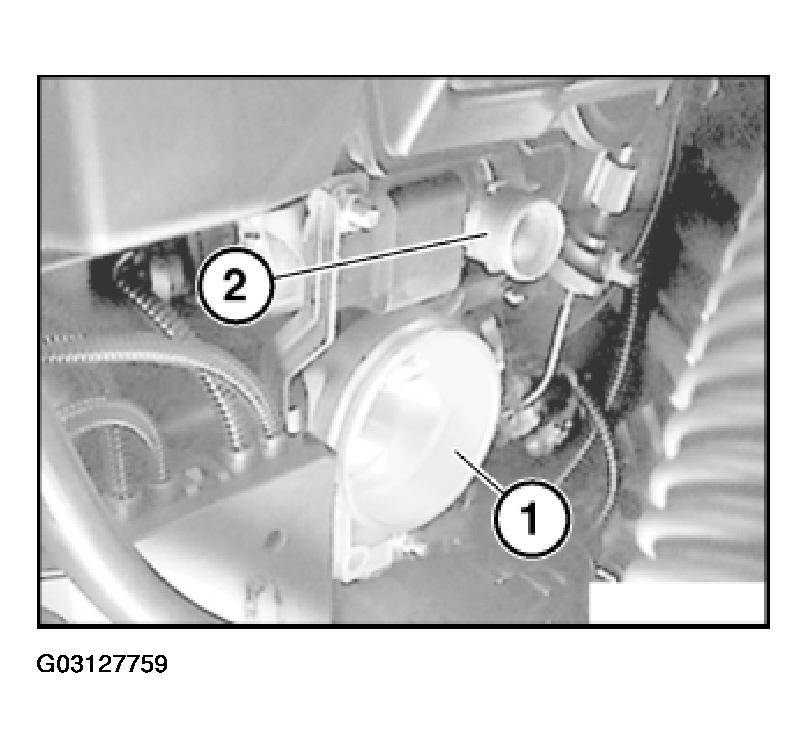

Fig 3: Connecting Air-Mass Flow Sensor With Intake Hose

Courtesy of BMW OF NORTH AMERICA, INC.

M54 E46/E53 only:

Remove complete intake hose (between intake filter housing and throttle assembly).

M54 E60/E61/E65/E66 only:

Remove intake hose.

M52TU and M54:

Unfasten following plug connections:

1. Resonance flap
2. Idle speed control valve

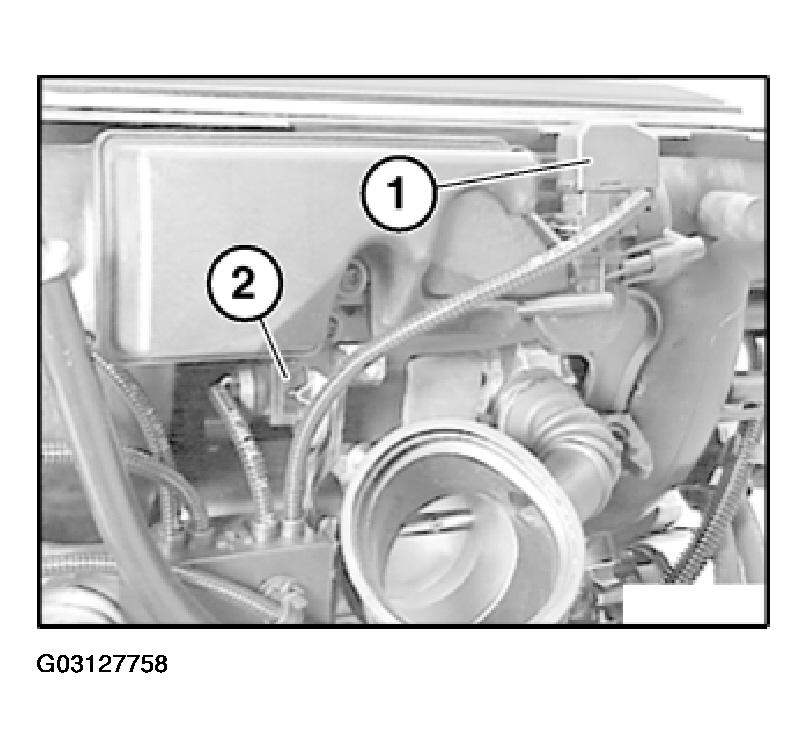

Fig 4: Disconnecting Resonance Flap & Idle Speed Control Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation location:

Idle actuator (2) is fitted below intake air manifold, directly above throttle (1).

Fig 5: Locating Idle Actuator Installing Position

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on cable duct mounting.

Release screws (2) on holder of idle actuator (3).

Remove idle actuator with holder from intake air manifold.

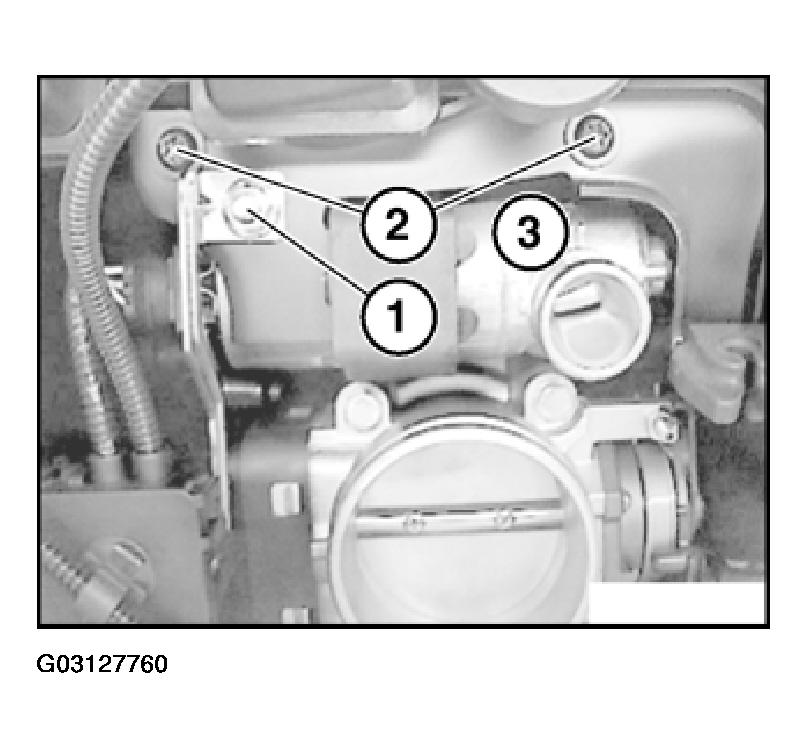

Fig 6: Removing Idle Actuator With Holder From Intake Air Manifold

Courtesy of BMW OF NORTH AMERICA, INC.

Detach idle actuator (2) from rubber retainer (4).

Always replace gasket (1) from idle actuator (2) to intake air manifold. However, during reinstallation, do not fit gasket on idle actuator but install first in intake air manifold.

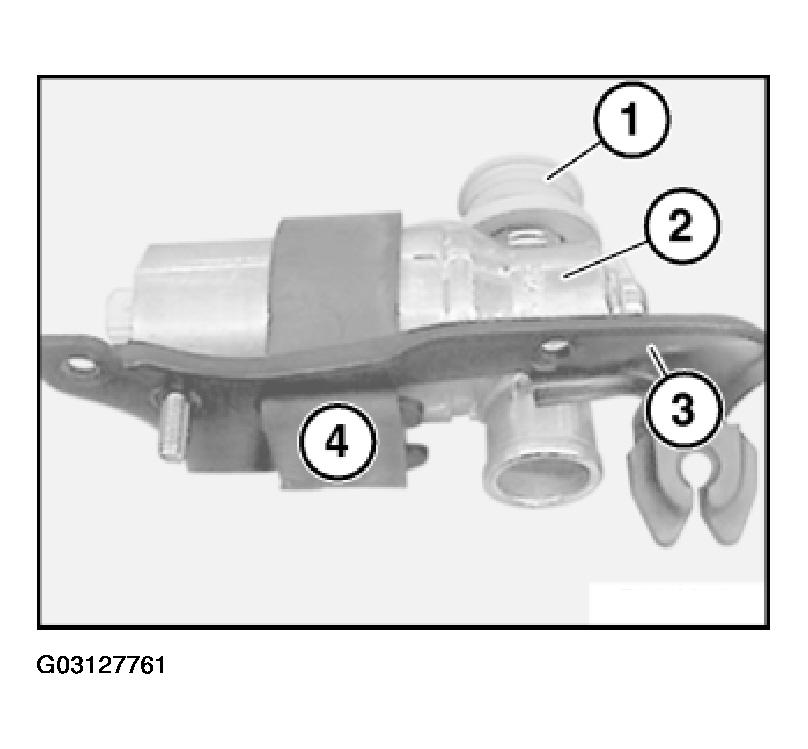

Fig 7: Detaching Idle Actuator From Rubber Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace seal (1).

Coat gasket (1) on inside with anti-seize agent.

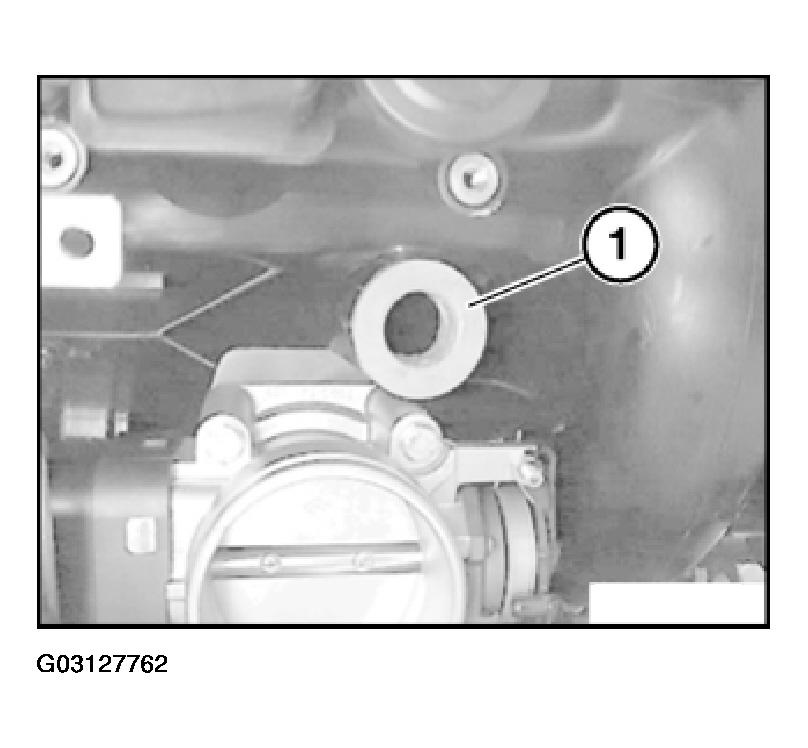

Fig 8: Locating Gasket Greasing Point

Courtesy of BMW OF NORTH AMERICA, INC.
