12 41 020 Removing and installing/replacing starter motor (M54)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, 2001 BMW 525i, and 2000 BMW 528i. However, it is still accessible from the selected car via links, so may be relevant.

Observe instructions for disconnecting and connecting battery. Refer to 12 00... Instructions for disconnecting and connecting battery .

Disconnect battery negative lead from battery.

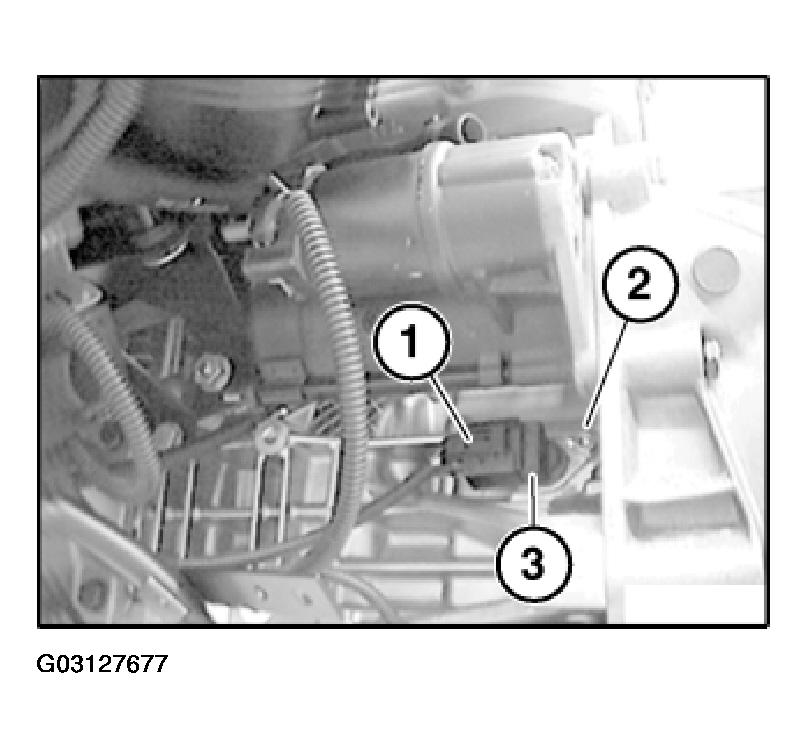

Unlock plug (1) from pulse generator for crankshaft and detach. See Fig 1.

NOTE: For a better overview, this work step is shown on an engine that has been removed.

Fig 1: Detaching Plug From Pulse Generator

Courtesy of BMW OF NORTH AMERICA, INC.

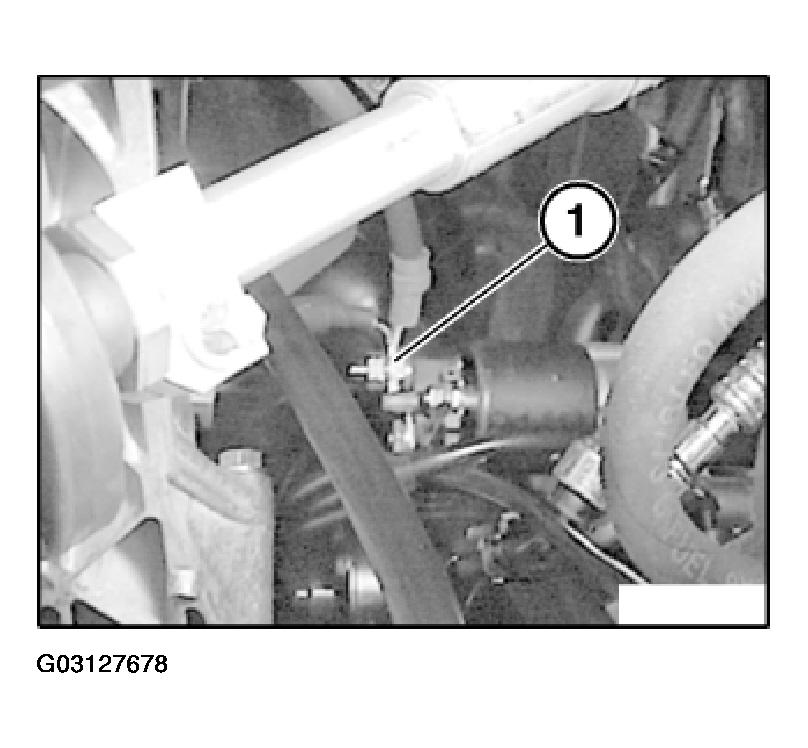

Release nut (1) and disconnect battery positive leads from starter motor. See Fig 2.

Installation:

Tightening torque. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUE .

Fig 2: Disconnecting Battery Positive Leads From Starter Motor

Courtesy of BMW OF NORTH AMERICA, INC.

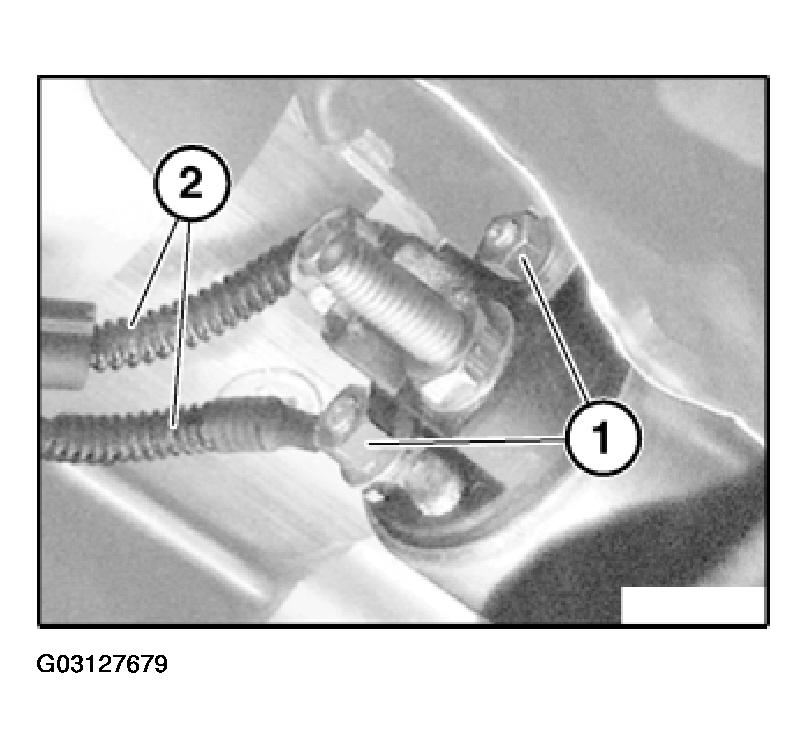

Release nuts (1).

Installation:

Tightening torque. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUE .

Detach leads (2) from starter motor. See Fig 3.

Fig 3: Detaching Leads From Starter Motor

Courtesy of BMW OF NORTH AMERICA, INC.

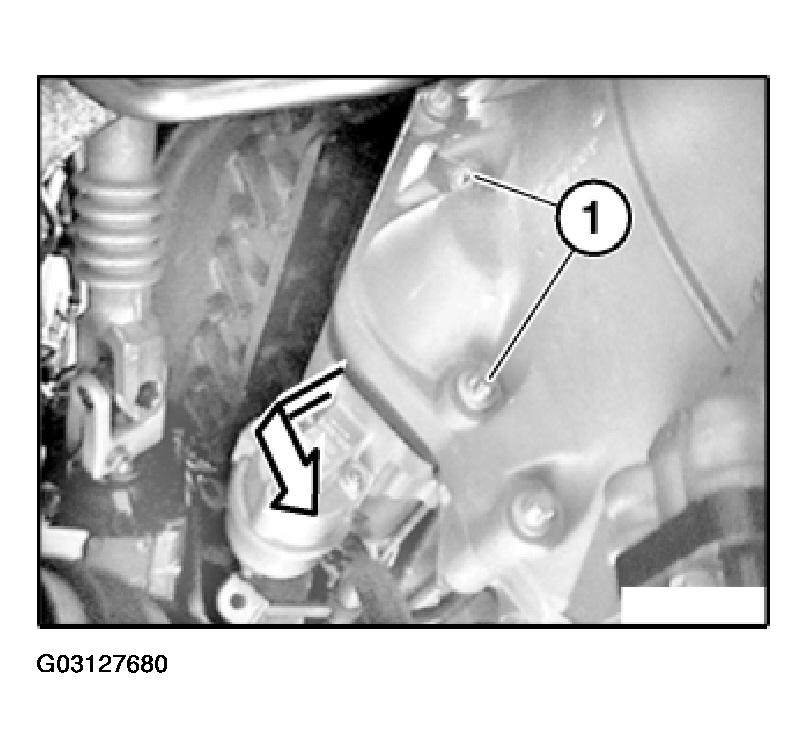

Releasing both starter motor mounting bolts (1) on transmission. See Fig 4.

Release starter mounting bolts from transmission output end with a long extension and a universal joint.

Installation:

Tightening torque. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUE .

Fig 4: Releasing Starter Motor Mounting Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

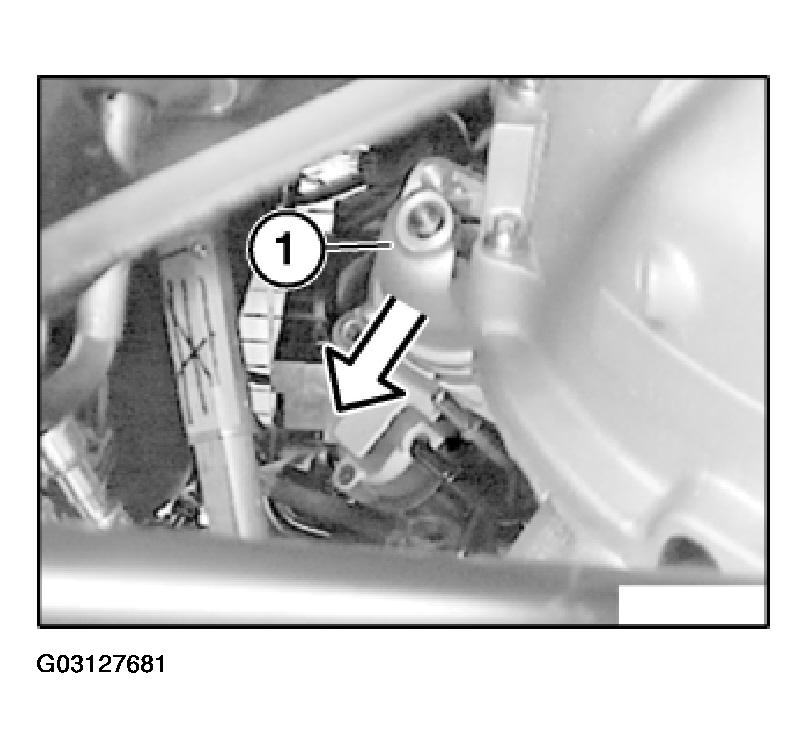

Pull starter motor (1) out of transmission flange and remove towards bottom. See Fig 5.

Fig 5: Removing Starter Motor From Transmission Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

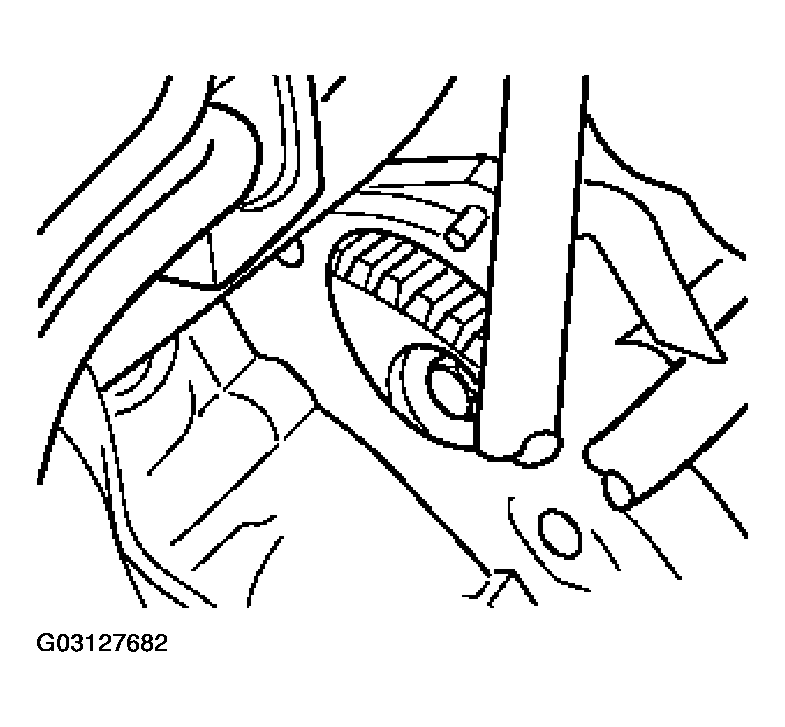

Check starter motor pinion and ring gear for damage. See Fig 6.

Fig 6: Checking Starter Motor Pinion & Ring Gear

Courtesy of BMW OF NORTH AMERICA, INC.
