Battery in luggage compartment behind side trim panel

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, 2001 BMW 525i, and 2000 BMW 528i. However, it is still accessible from the selected car via links, so may be relevant.

Remove side trim panel.

Follow instructions for disconnecting and connecting battery. Refer to 12 00... Instructions for disconnecting and connecting battery .

Disconnect and cover battery negative lead.

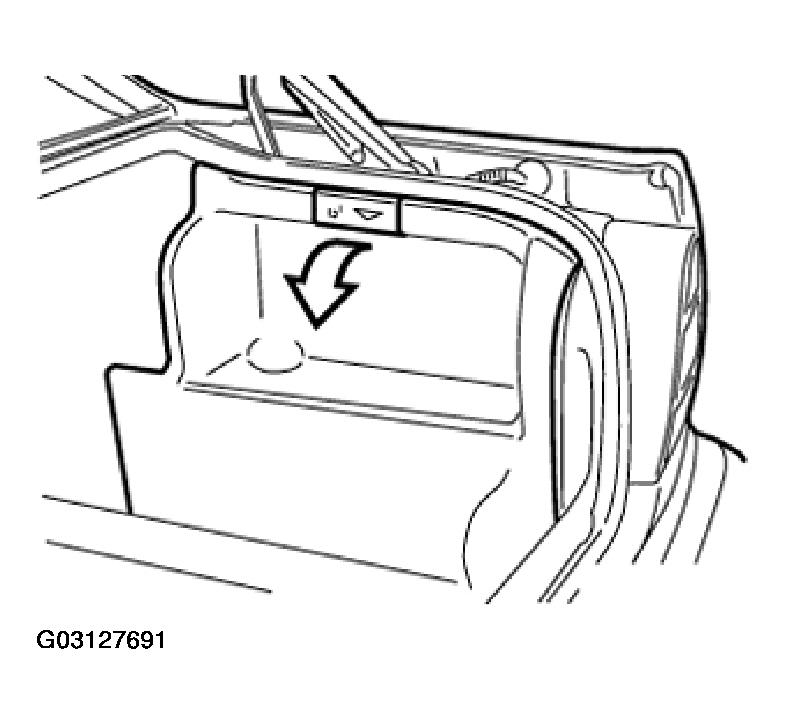

Fig 1: Removing Side Trim Panel
G03127691Courtesy of BMW OF NORTH AMERICA, INC.

Release front side trim panel partly and fold forward.

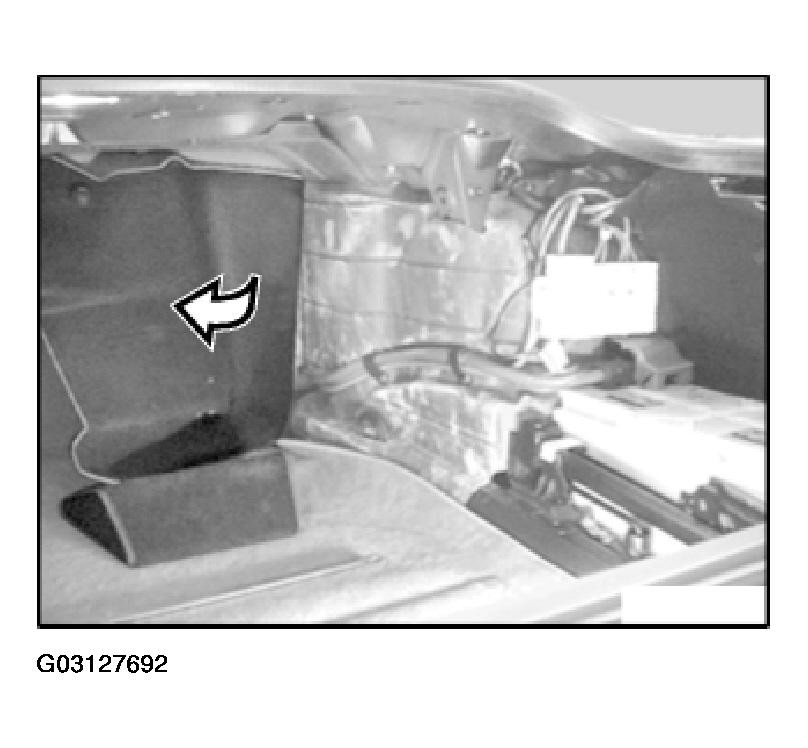

Fig 2: Releasing Front Side Trim Panel
G03127692Courtesy of BMW OF NORTH AMERICA, INC.
