12 61 285 Replacing oil level sensor
WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, 2001 BMW 525i, and 2000 BMW 528i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Switch off ignition
- Unfasten oil filter cap to enable engine oil in filter to flow back into the oil sump
- Remove reinforcement plate
- Drain off engine oil

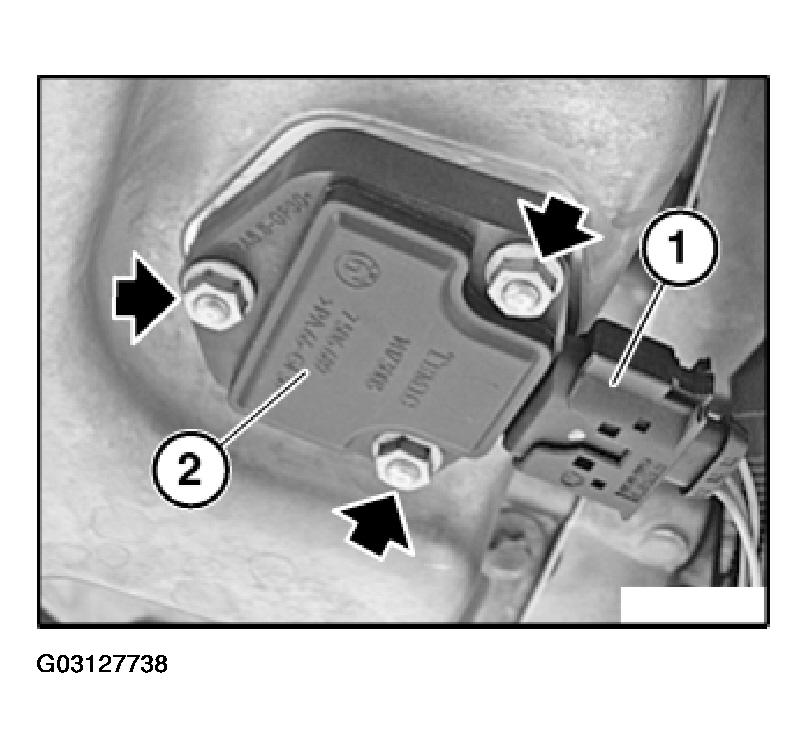

Unlock plug (1) and remove.
Unscrew nuts.
Remove oil level sensor (2).
Installation:
Clean sealing face on oil sump.
Replace seal on oil level sensor.
Tightening torque. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUE .
Installation:
Top up engine oil.
Tighten down oil filter cap.
