12 13 520 Replacing a spark plug connector (M60, M62, M54)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, 2001 BMW 525i, and 2000 BMW 528i. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

Remove ignition coils.

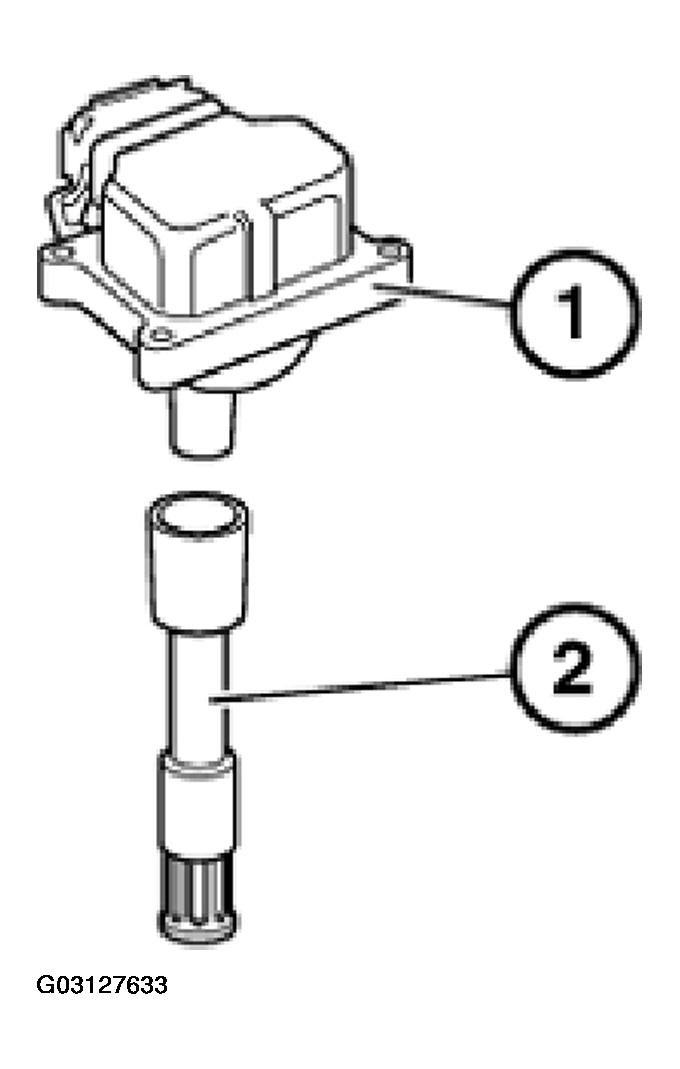

Detach ignition coil (1) from spark plug connector (2).

Fig 1: Detaching Ignition Coil From Spark Plug Connector

Courtesy of BMW OF NORTH AMERICA, INC.
