12 14 524 Replacing pulse generator on exhaust camshaft (M52TU, M54, M56)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, 2001 BMW 525i, and 2000 BMW 528i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Check stored fault messages.
Switch off ignition.

Location:

On cylinder head at front on exhaust side.

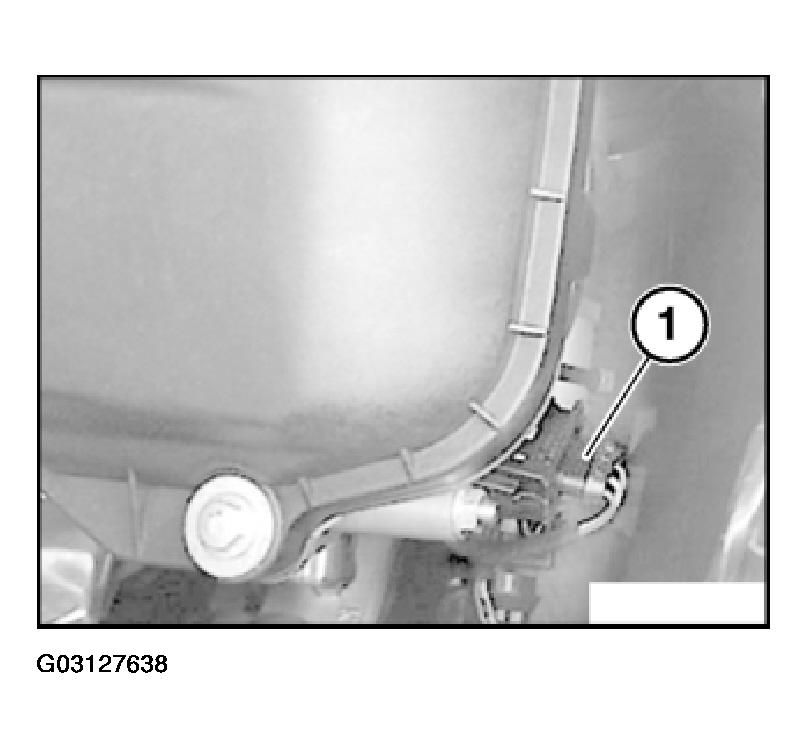

Unlock plug (1) and detach from pulse generator.

Fig 1: Removing Plug From Pulse Generator

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on cylinder head.

Remove pulse generator.

Installation:

Check sealing ring for possible damage, replace if necessary.

Fig 2: Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit.

Rectify faults.

Now clear the fault memory.
