Version 1

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, 2001 BMW 525i, and 2000 BMW 528i. However, it is still accessible from the selected car via links, so may be relevant.

Take off cap on connections.

Disconnect plug connection (1).

Release nut (2) and disconnect battery positive lead.

Tightening torque. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUE .

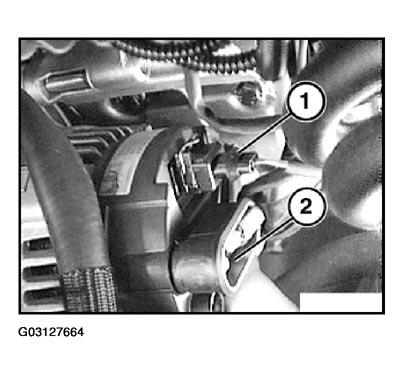

Fig 1: Disconnecting Battery Positive Lead (Version 1)
G03127664Courtesy of BMW OF NORTH AMERICA, INC.
