Version 2

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Vibration damper and hub for vibration damper are one part:

Screw special tool 11 8 190 to special tool 11 8 200.

Fig 1: Screwing Special Tool 11 8 190 To Special Tool 11 8 200
G03127333Courtesy of BMW OF NORTH AMERICA, INC.


NOTE: Special tool 11 8 200 must snap into place in openings (1).
Fig 1: Identifying Special Tool 11 8 200 Placed In Openings
G03127334Courtesy of BMW OF NORTH AMERICA, INC.


When releasing and tightening down central bolt, grip special tool 11 8 190 with assistance of a second person.



Insert special tool 11 8 200 in openings on vibration damper and turn counterclockwise so that counter-supports snap into place on vibration damper.

Release central screw (1).

Fig 1: Releasing Central Screw
G03127335Courtesy of BMW OF NORTH AMERICA, INC.


Feed out special tools 11 8 190 / 11 8 200.

Remove central screw and washer.

Carefully detach vibration damper (1) by hand.

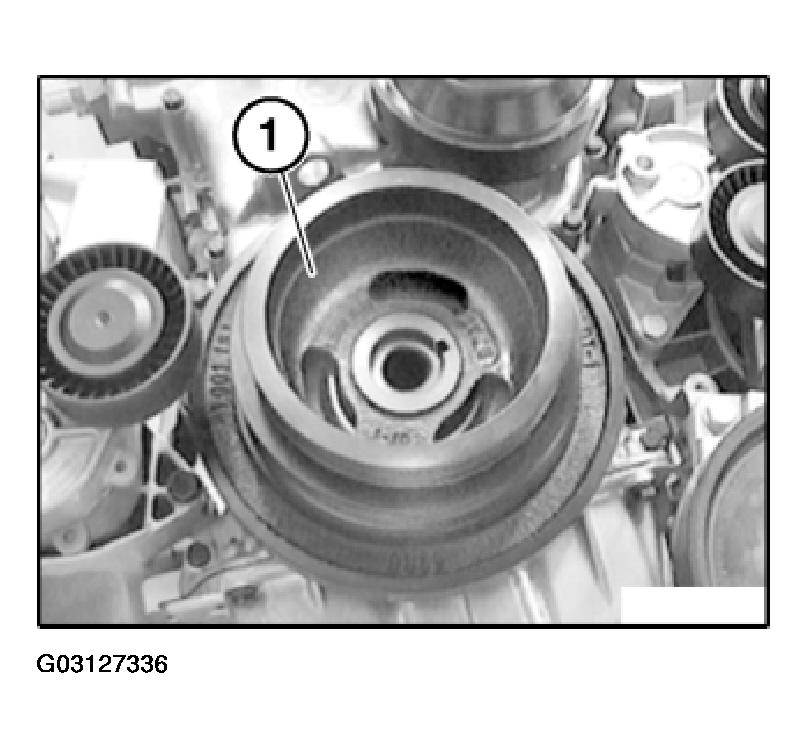

Fig 1: Detaching Vibration Damper By Hand
G03127336Courtesy of BMW OF NORTH AMERICA, INC.


NOTE: If vibration damper cannot be detach by hand:

Insert special tool 11 8 200 in openings on vibration damper and turn clockwise so that counter-supports snap into place on vibration damper.

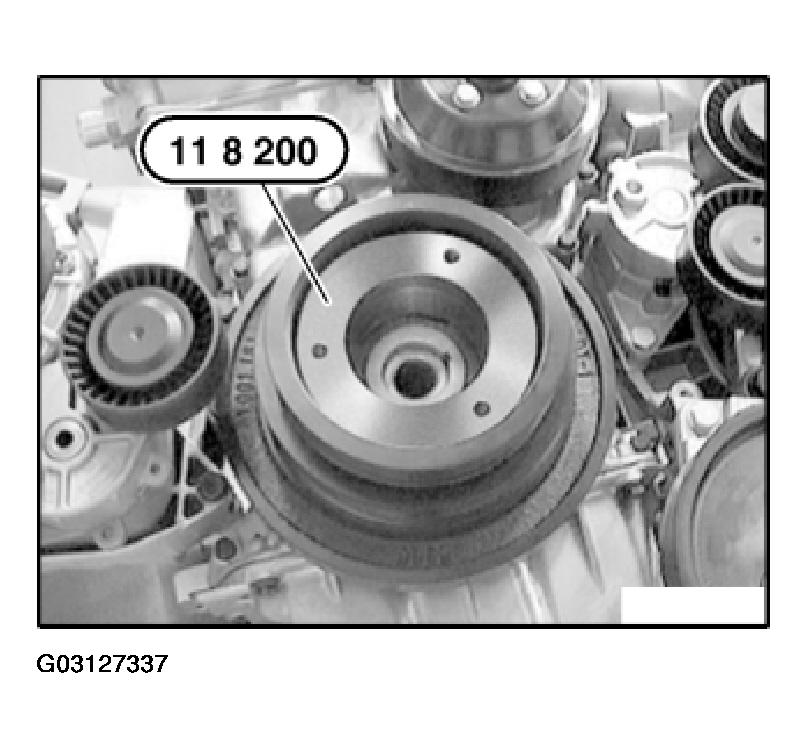

Fig 1: Inserting Special Tool 11 8 200 In Openings On Vibration Damper
G03127337Courtesy of BMW OF NORTH AMERICA, INC.


Screw out spindle (1) on special tool 11 8210 as far as possible.

Z3 only:

Screw in spindle (1) on special tool 11 8 210 approx. 15 mm and screw out again only after installation between special tool 11 8 200 and cooler.

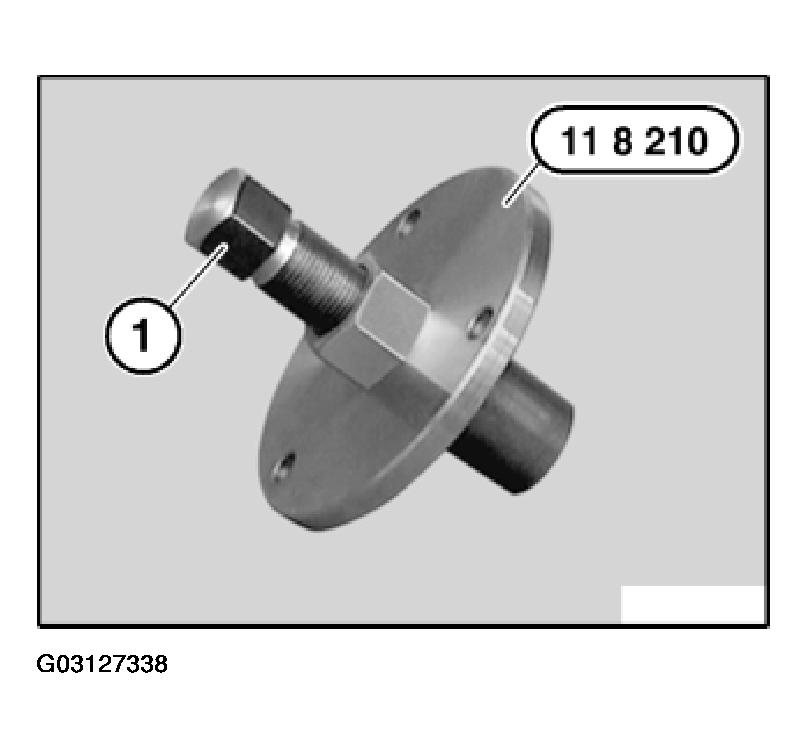

Fig 1: Screwing Out Spindle On Special Tool 11 8210
G03127338Courtesy of BMW OF NORTH AMERICA, INC.


IMPORTANT: Risk of damage.

Protect cooler against damage.

Carefully install special tool 11 8 210.

Screw special tool 11 8 210 to special tool 11 8 200.

Detach vibration damper by turning spindle (1) on special tool 11 8 210.

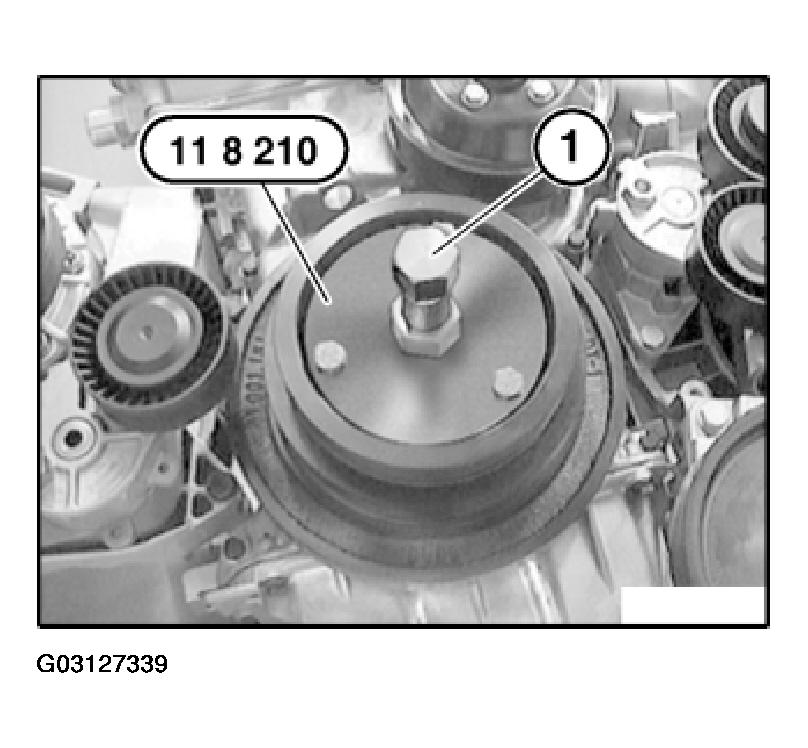

Fig 1: Detaching Vibration Damper By Turning Spindle On Special Tool 11 8 210
G03127339Courtesy of BMW OF NORTH AMERICA, INC.


Installation:

Check featherkey (1) for damage and correct installation position.

Replace radial seal in lower timing case cover.

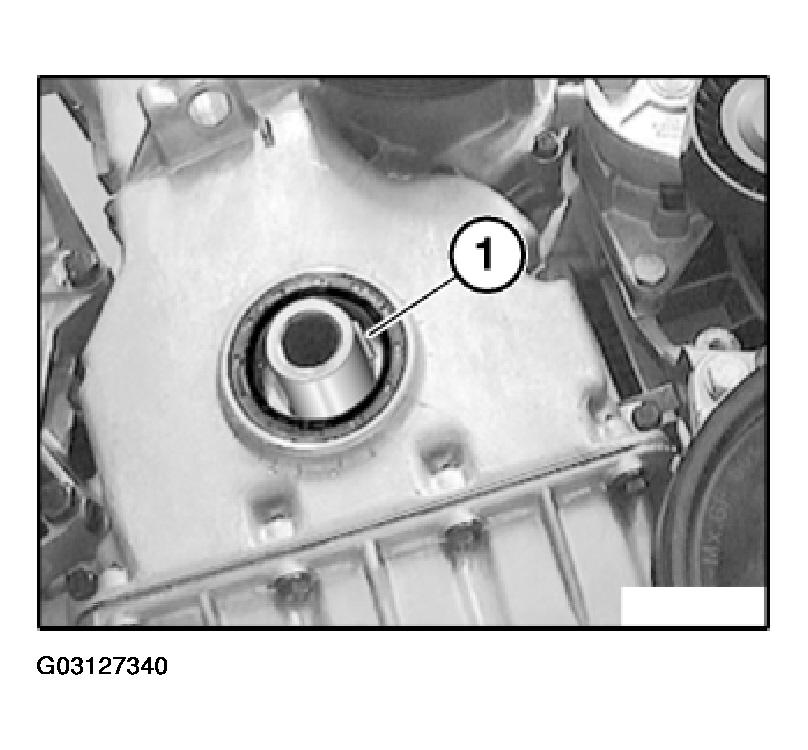

Fig 1: Checking Featherkey For Damage & Correct Installation Position
G03127340Courtesy of BMW OF NORTH AMERICA, INC.


Installation:

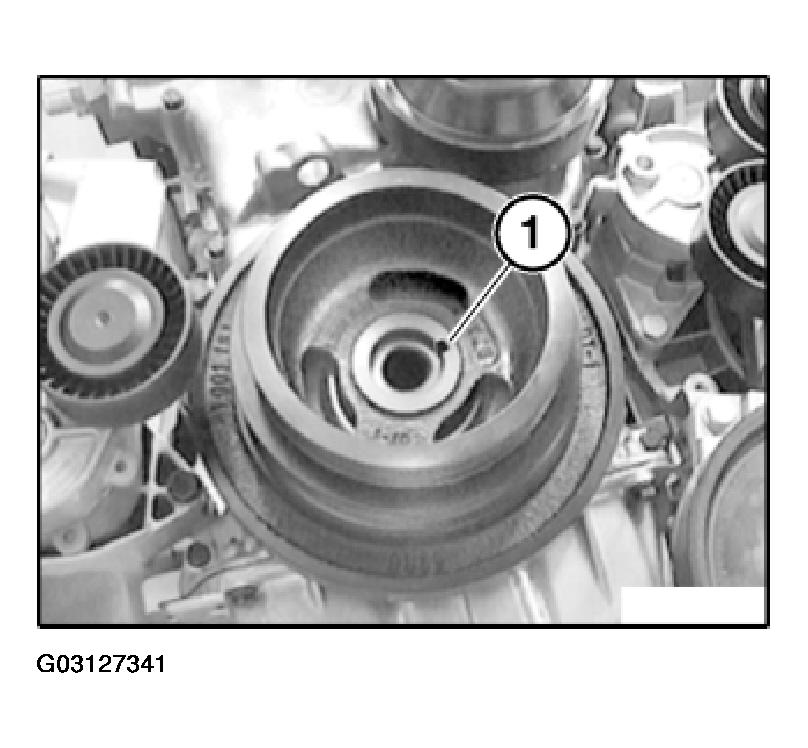

Align groove (1) in vibration damper to featherkey.

Fit vibration damper.

Fig 1: Aligning Groove In Vibration Damper To Featherkey
G03127341Courtesy of BMW OF NORTH AMERICA, INC.


Installation:

Replace central screw (1).

Install central screw and washer.

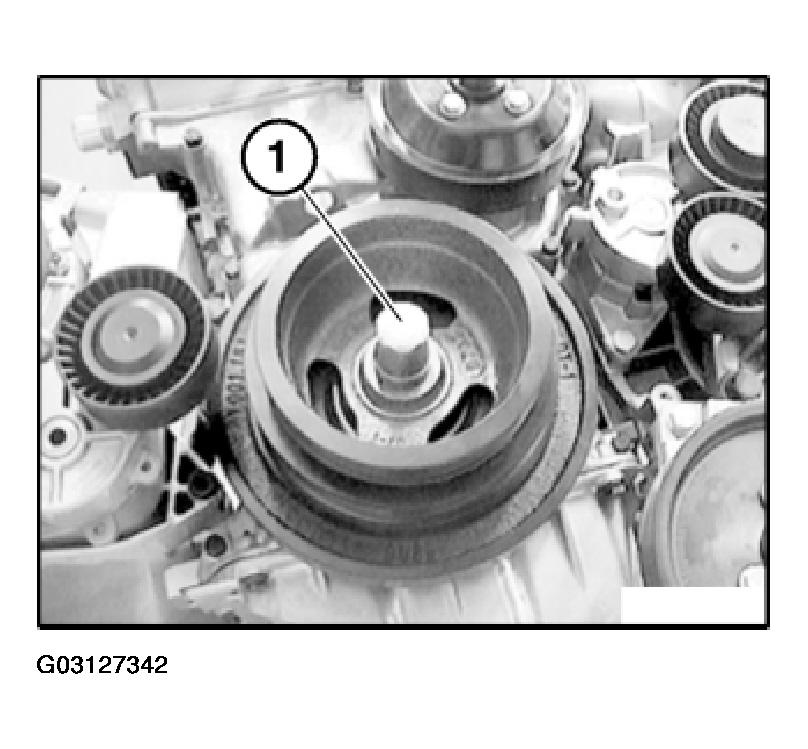

Fig 1: Replacing Central Screw
G03127342Courtesy of BMW OF NORTH AMERICA, INC.


Installation:

Screw special tool 11 8 190 to special tool 11 8 200.

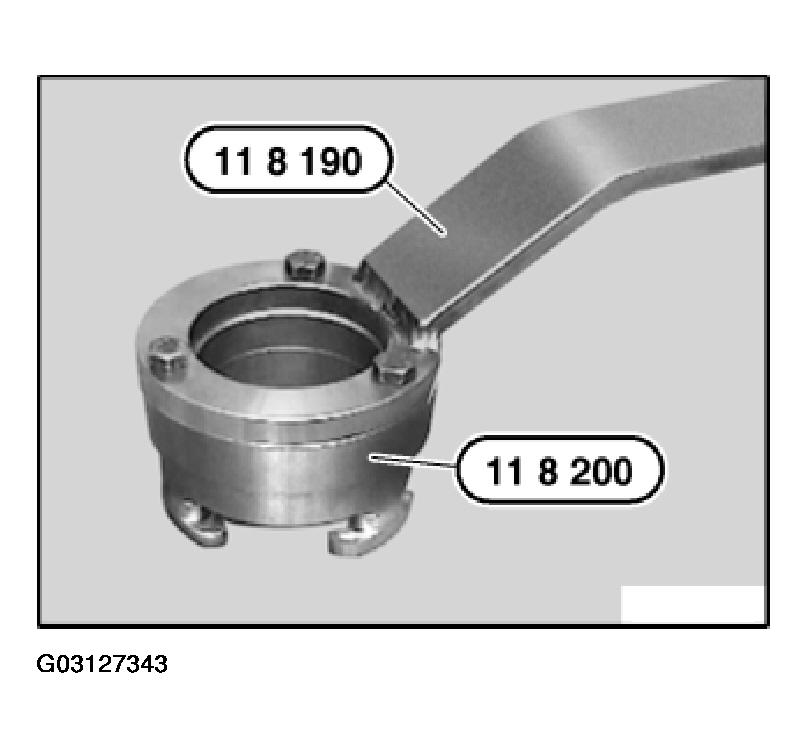

Fig 1: Screwing Special Tool 11 8 190 To Special Tool 11 8 200
G03127343Courtesy of BMW OF NORTH AMERICA, INC.


Insert special tool 11 8 200 in openings on vibration damper and turn clockwise so that counter-supports snap into place on vibration damper.

Tighten down central screw (1).

Tightening torque. Refer to ENGINE - TIGHTENING TORQUES .

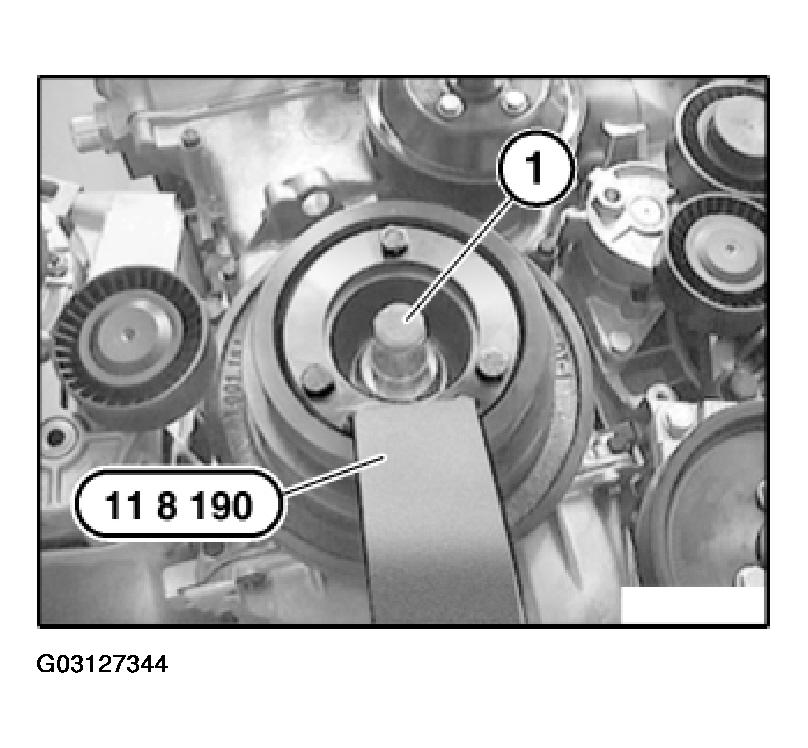

Fig 1: Tightening Down Central Screw
G03127344Courtesy of BMW OF NORTH AMERICA, INC.
