Vibration damper and hub for vibration damper are two parts:

Unscrew vibration damper bolts and take off vibration damper.

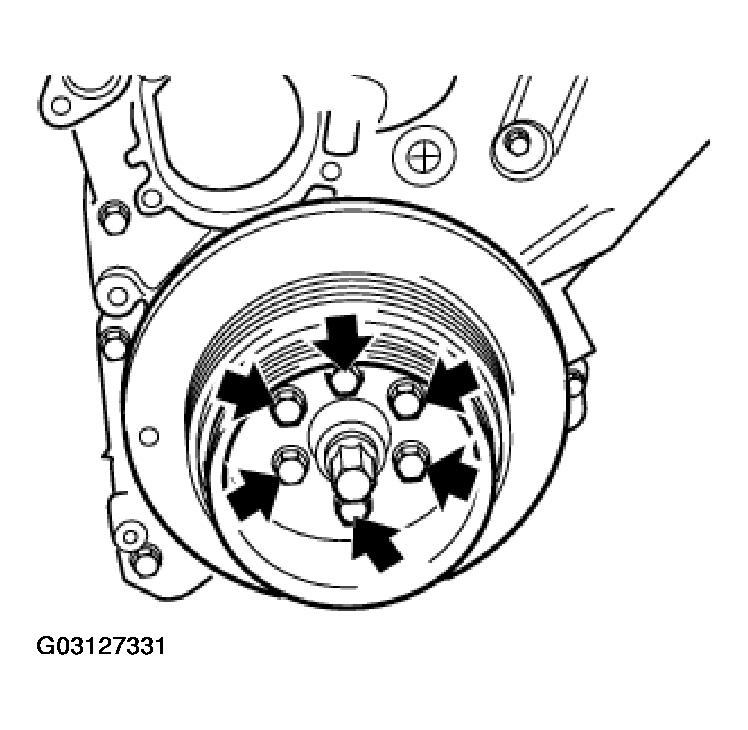

Fig 1: Identifying Vibration Damper Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Vibration damper and hub for vibration damper are two parts:

Installation:

Align locating bore in vibration damper to dowel pin.

Install and tighten down screws.

Tightening torque. Refer to ENGINE - TIGHTENING TORQUES .

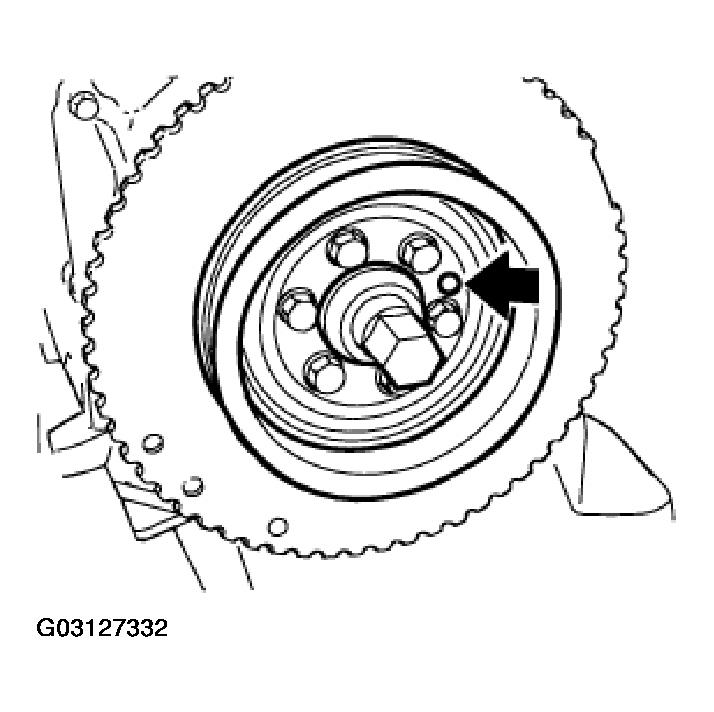

Fig 1: Aligning Locating Bore In Vibration Damper To Dowel Pin

Courtesy of BMW OF NORTH AMERICA, INC.
