Special tools required:

• 11 0 342
• 11 0 345
• 11 1 045
• 11 1 065
• 11 1 441
• 11 3 030
• 11 3 250

(cylinder head removed)

Preliminary tasks are described in Disassembling and assembling cylinder head. 11 12 100 REMOVING AND INSTALLING/REPLACING CYLINDER HEAD (M52TU / M54 / M56) .

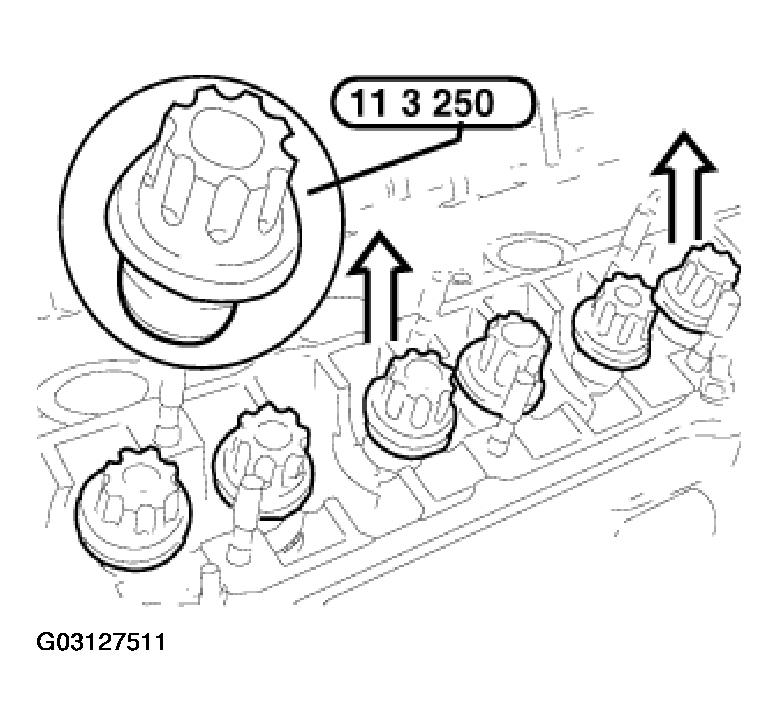

Brace bucket tappets with special tool 11 3 250.

Lift out bearing strip with bucket tappet.

Installation:

Only re-use used bucket tappets in the same tappet bore.

Fig 1: Lifting Out Bearing Strip With Bucket Tappet

Courtesy of BMW OF NORTH AMERICA, INC.

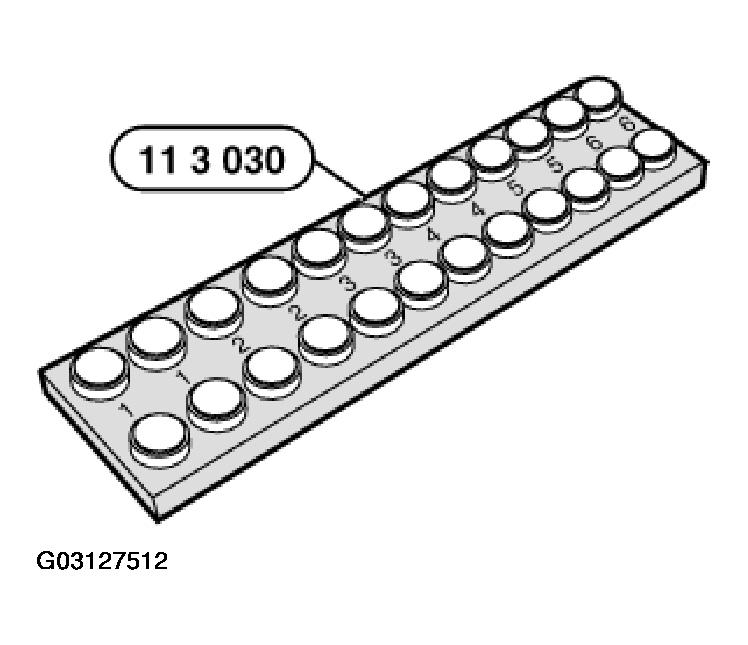

Arrange bucket tappets by cylinder and place on special tool 11 3 030 in correct order.

Fig 2: Arranging Bucket Tappets By Cylinder & Placing On Special Tool 11 3 030 In Correct Order

Courtesy of BMW OF NORTH AMERICA, INC.

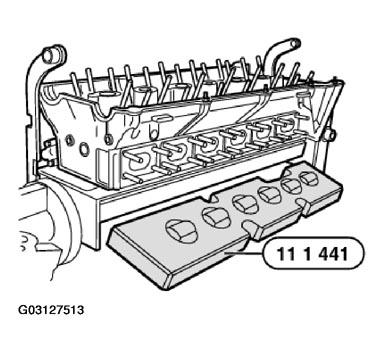

Insert special tool 11 1 441 from below in special tool 11 1 065 and secure with special tool 11 1 045.

Fig 3: Inserting Special Tool 11 1 441 From Below In Special Tool 11 1 065 & Secure With Special Tool 11 1 045

Courtesy of BMW OF NORTH AMERICA, INC.

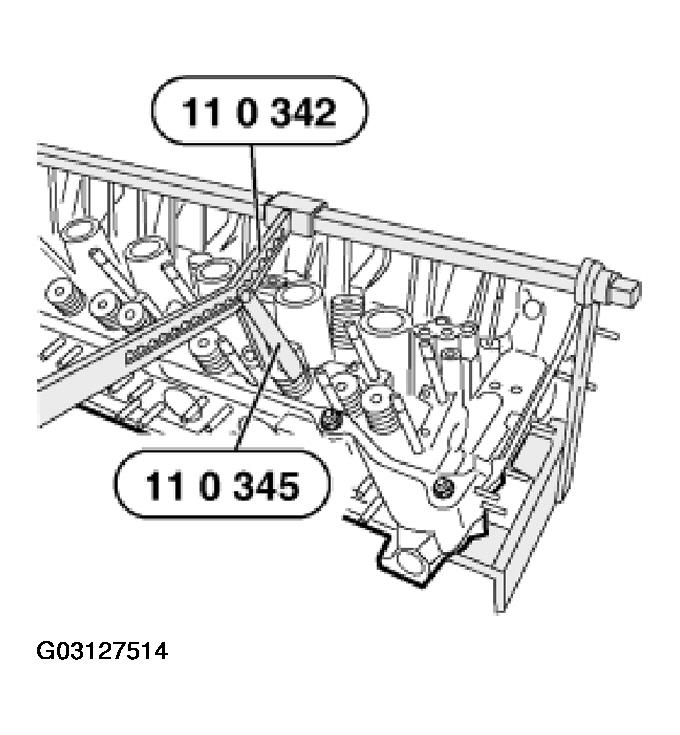

Align special tool 11 0 345 in direction of valve shaft and select appropriate groove in special tool 11 0 342.

Fig 4: Aligning Special Tool 11 0 345 In Direction Of Valve Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

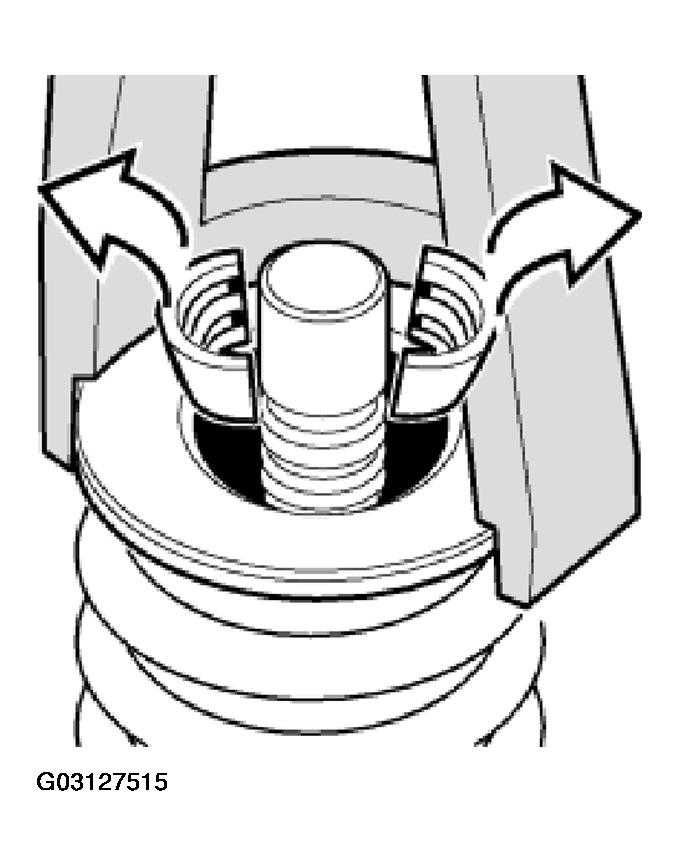

Press down valve spring on spring cap, top, and remove valve keys.

Remove valve spring and plate spring.

Fig 5: Removing Valve Spring & Plate Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Arrangement:

1. Valve
2. Valve-stem seal
3. Lower plate spring
4. Valve spring
5. Top plate spring
6. Valve tapers
   Fig 6: Identifying Components Of Valve

   Courtesy of BMW OF NORTH AMERICA, INC.
