Special tools required:

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

11 1 200
11 1 480
11 1 960

(cylinder head removed)

Preliminary tasks are described in Disassembling and assembling cylinder head. Refer to 11 12 100 REMOVING AND INSTALLING/REPLACING CYLINDER HEAD (M52TU / M54 / M56) .

Remove all valve springs.

Remove valve stem seal with special tool 11 1 480.

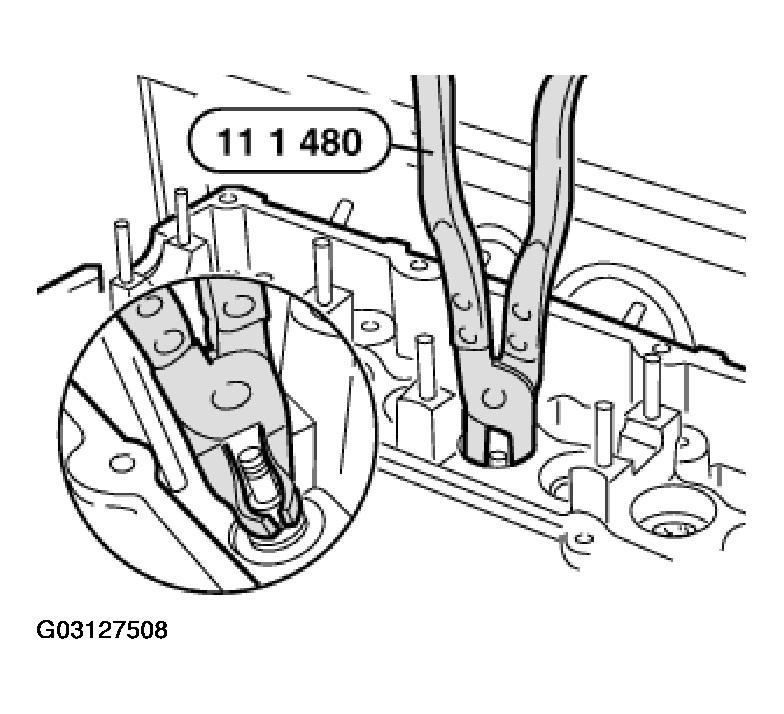

Fig 1: Removing Valve Stem Seal With Special Tool 11 1 480

Courtesy of BMW OF NORTH AMERICA, INC.

Lubricate valve stem with oil and insert valve. Fit special tool 11 1 960.

Coat new valve stem seal (1) with oil and install.

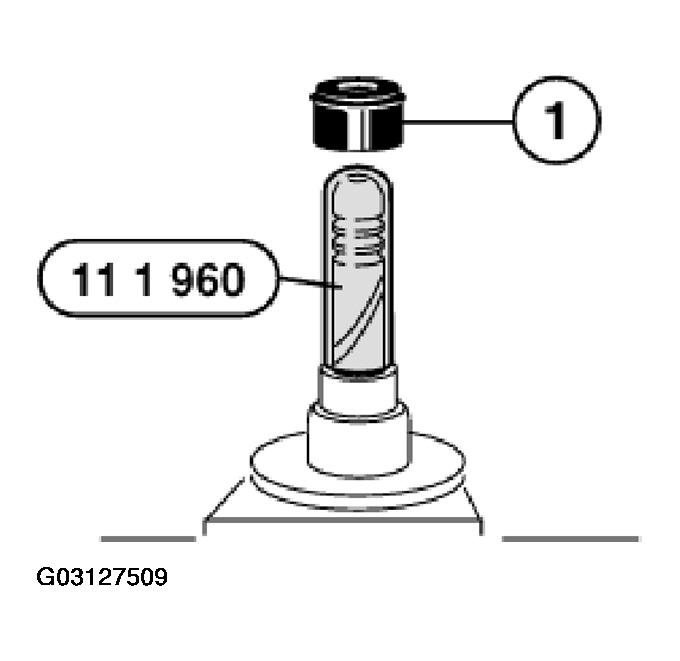

Fig 2: Coating Valve Stem Seal With Oil

Courtesy of BMW OF NORTH AMERICA, INC.

Press valve stem seal firmly home by hand with special tool 11 1 200.

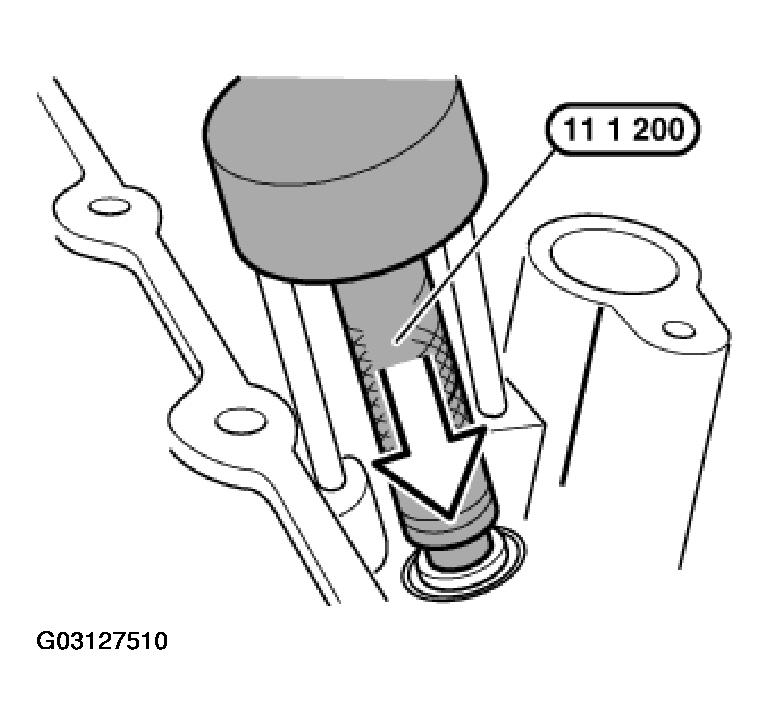

Fig 3: Pressing Valve Stem Seal Firmly Home With Special Tool 11 1 200

Courtesy of BMW OF NORTH AMERICA, INC.
