11 28 050 Replacing A/C compressor drive belt (M52 / S52 / M52TU / M54 / M56)
WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If the drive belt is to be subsequently reused:
Mark direction of travel and reinstall drive belt in same direction of travel.
Necessary preliminary tasks:
- If necessary, remove splash guard.

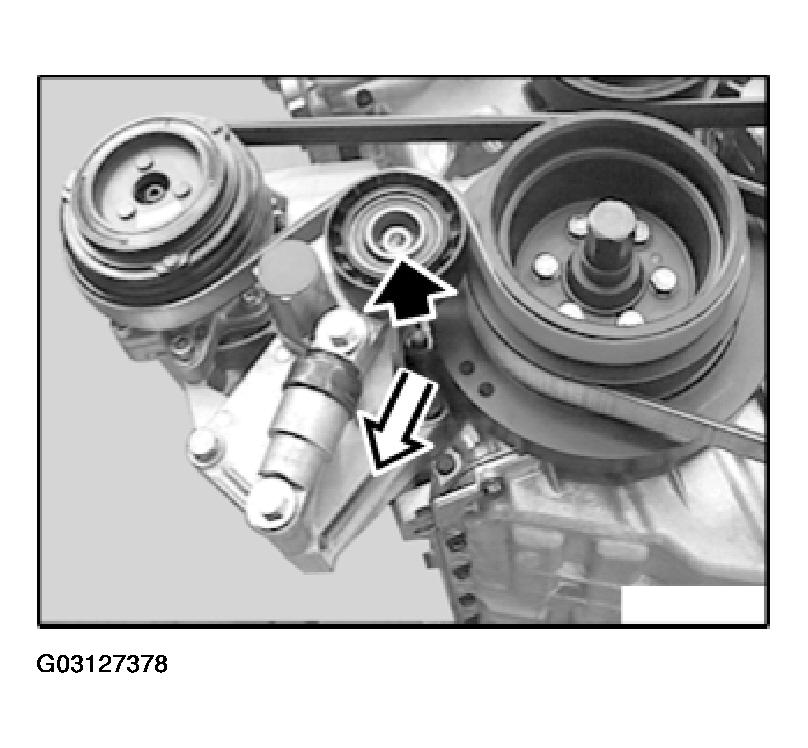

Model with hydraulic drive belt and tension jack:
Remove the dust cab. Push back belt tensioner at bolt connection of guide pulley and remove drive belt.

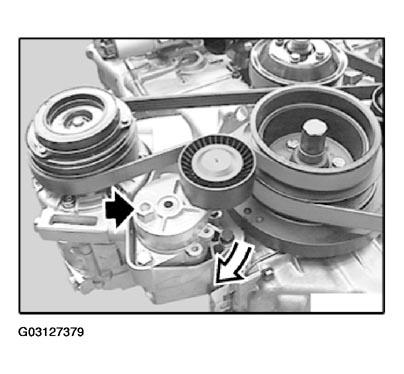

Model with mechanical drive belt and tension jack:
Press back drive belt tensioner at hexagon head or Torx socket and remove drive belt.
IMPORTANT:
Drive belt must be replaced if fouled with hydraulic fluid.
Installation:
Check drive belt for coolant and oil residues, replace if necessary.
Install drive belt, make sure it is correctly positioned on belt pulleys.
