Pull off complete rubber strip (1).

Disconnect plug connection (2) on solenoid valve.

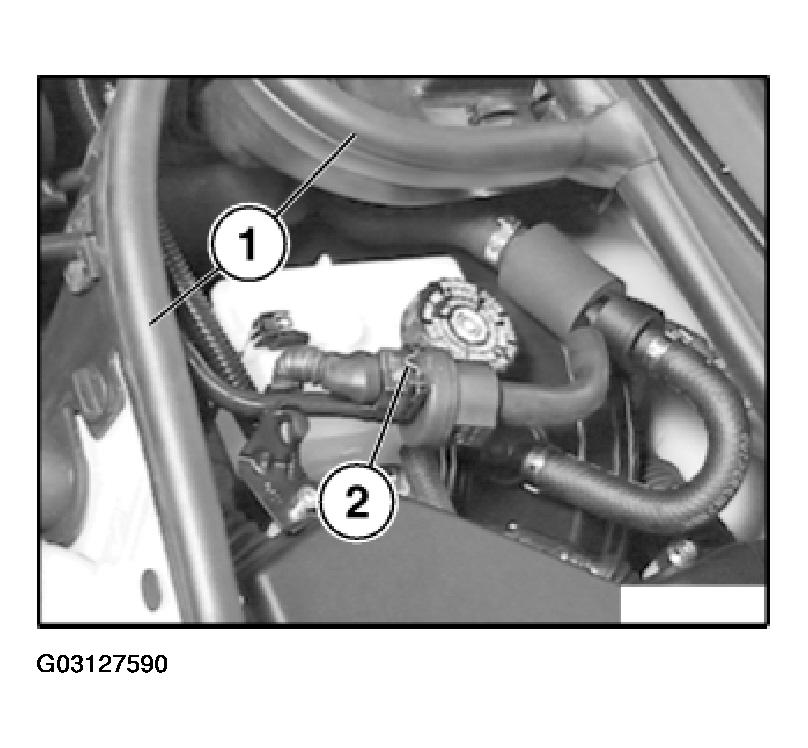

Fig 1: Pulling Off Complete Rubber Strip & Disconnecting Plug Connection On Solenoid Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cable penetrations from side trim panel.

Release locks (1) on side trim panel.

Pull out side trim panel towards top.

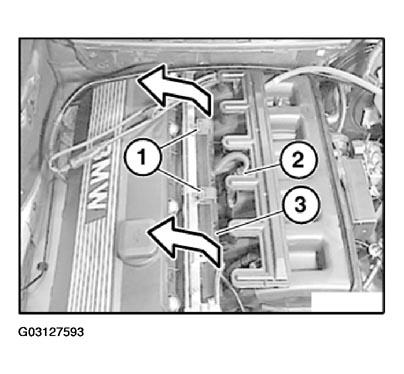

Fig 1: Releasing Locks On Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and detach vent hose from cylinder head cover.

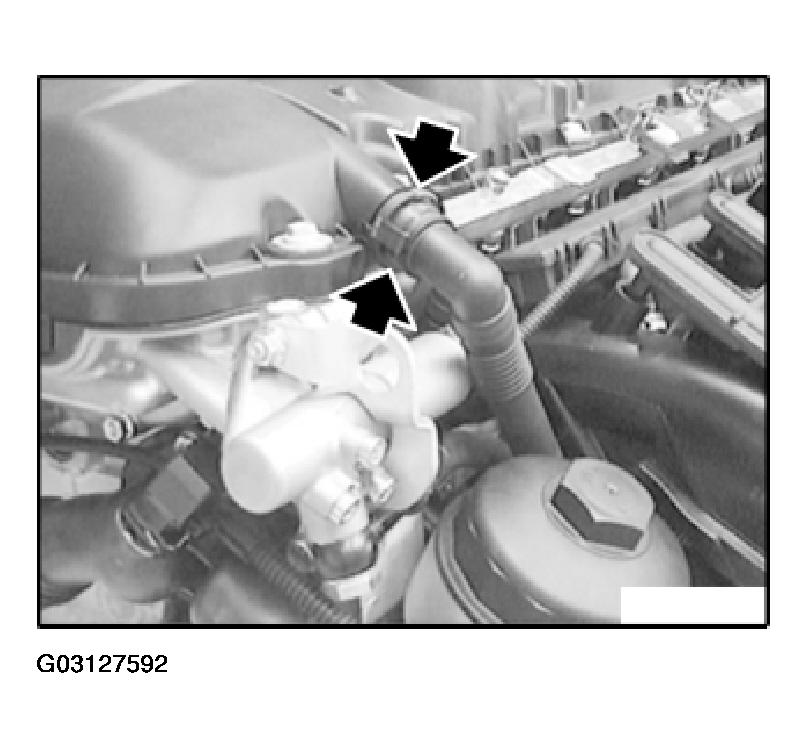

Fig 2: Pressing Lock & Detaching Vent Hose From Cylinder Head Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off retainer (1).

Disconnect plug connection (2) for intake air temperature sensor.

Detach terminal strip (3) from fuel injectors and place to one side.

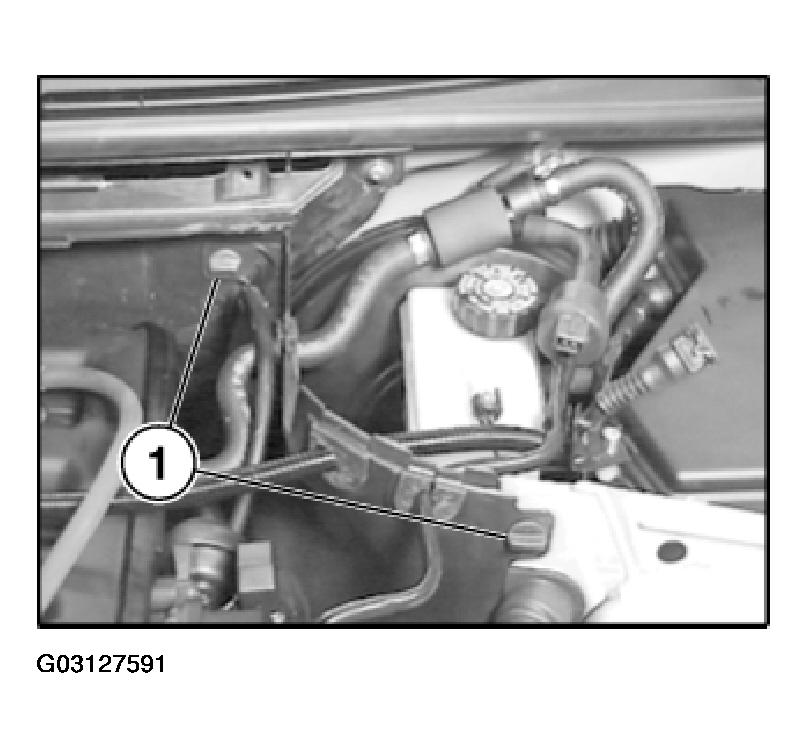

Fig 3: Disconnecting Plug Connection For Intake Air Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

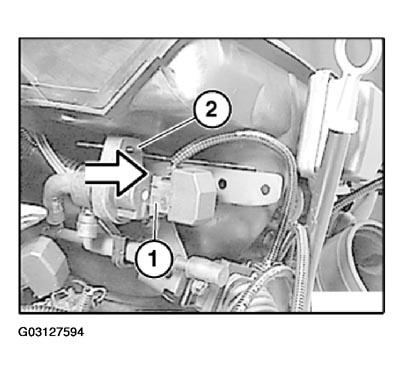

Disconnect plug connection (1) on tank venting valve.

Remove tank venting valve from retainer (2) on manifold.

Fig 4: Removing Tank Venting Valve From Retainer On Manifold

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For a better overview, this work step is shown on an engine that has been removed.

CAUTION: Catch and dispose of fuel as it escapes.

Instructions for removing and installing fuel hoses.

Unclip fuel line (1) from holder (2).

Unlock fuel line (1).

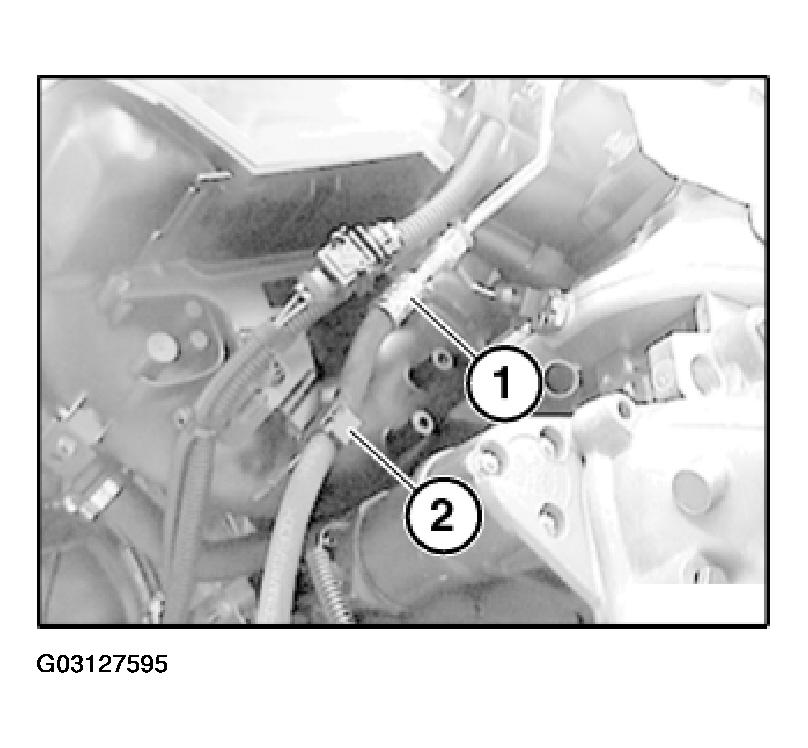

Fig 5: Unclipping Fuel Line From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen guide tube for dipstick.

Press lock and detach return line from guide tube for oil dipstick.

Remove throttle assembly.

Disconnect plug connections and lay cable duct to one side.

Unclip plug connection (1) for knock sensors from holder.

Release nut (2) on manifold support.

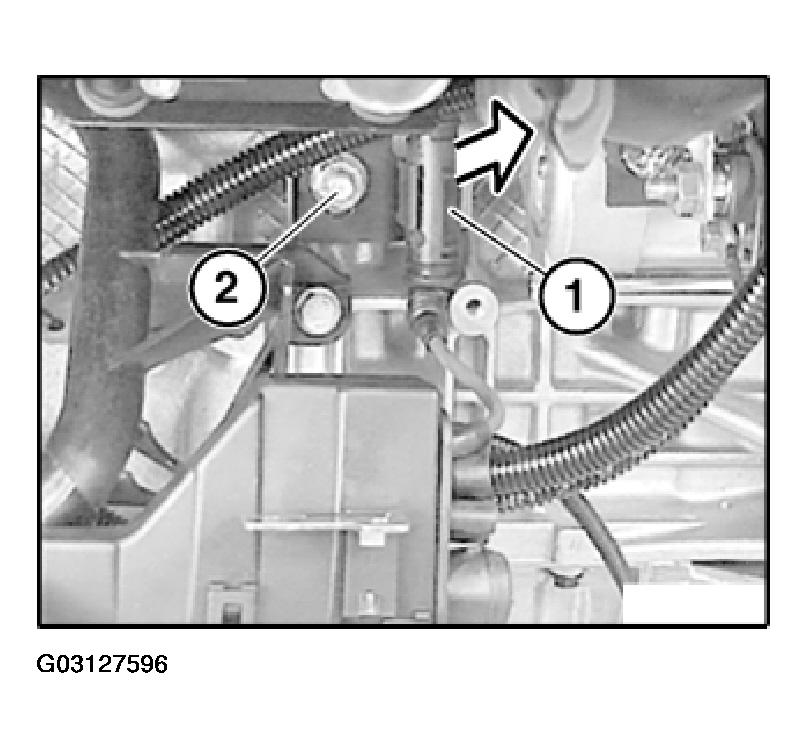

Fig 6: Unclipping Plug Connection For Knock Sensors From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

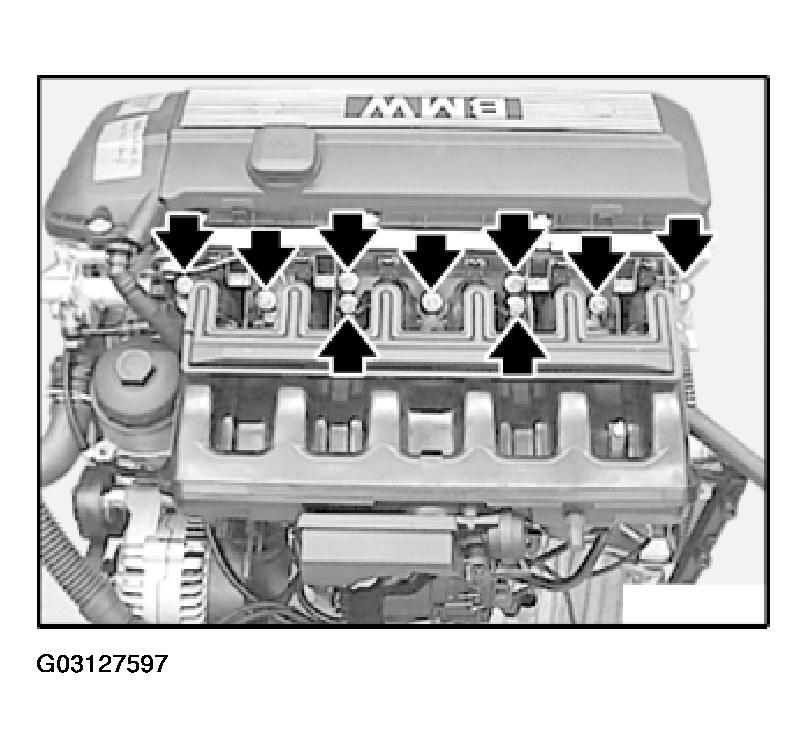

Release nuts on manifold.

NOTE: Engines with air injection:

Detach vacuum line on reverse side of intake air manifold.

Remove intake air manifold.

Fig 7: Releasing Nuts On Manifold

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check gaskets on all cylinders and replace if necessary.

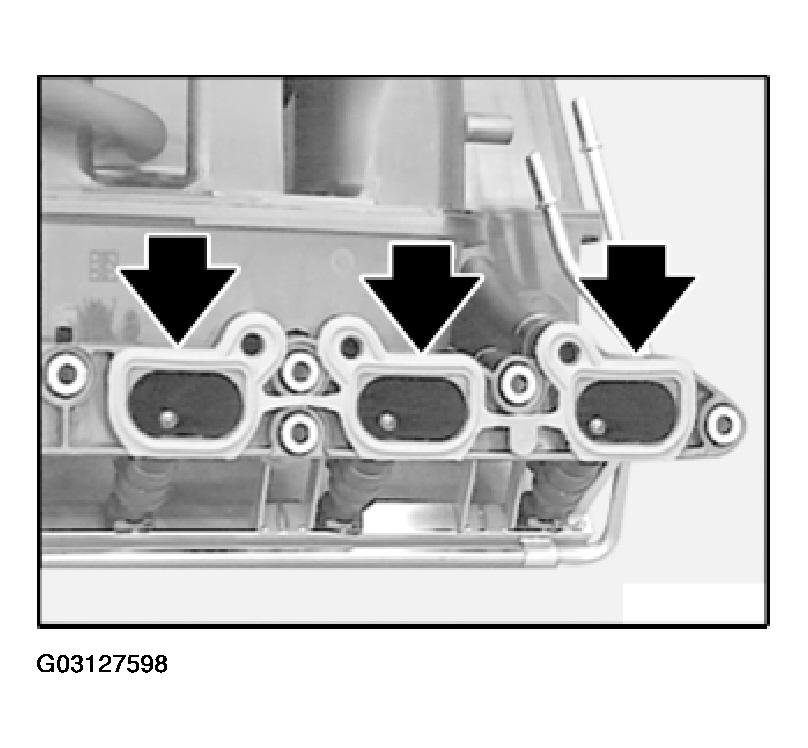

Fig 8: Identifying Gaskets On Cylinders

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check rubber dampers and if necessary replace together with manifold support.

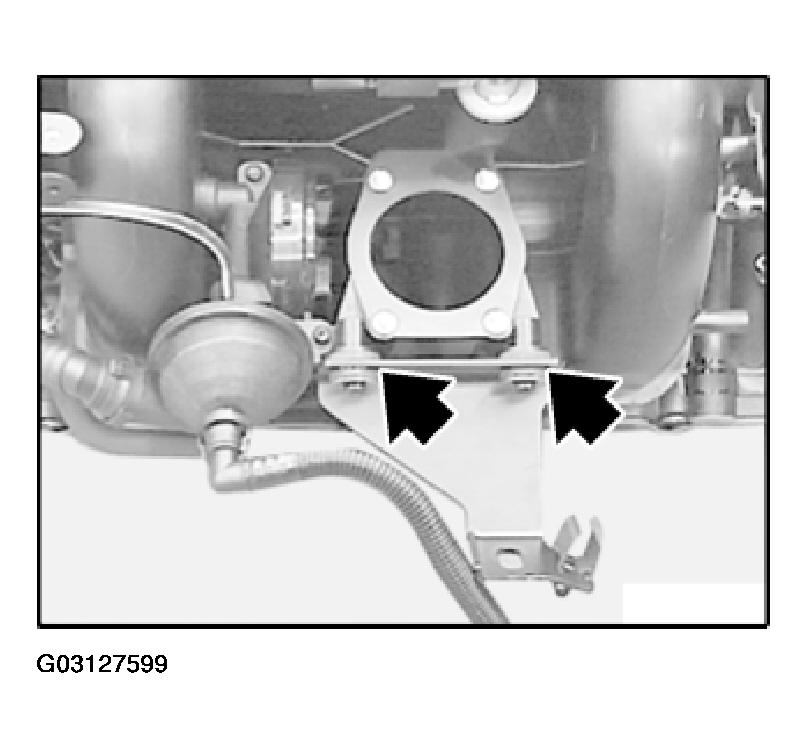

Fig 9: Identifying Rubber Dampers

Courtesy of BMW OF NORTH AMERICA, INC.
