Special tools required:

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

11 2 170

(clutch removed)

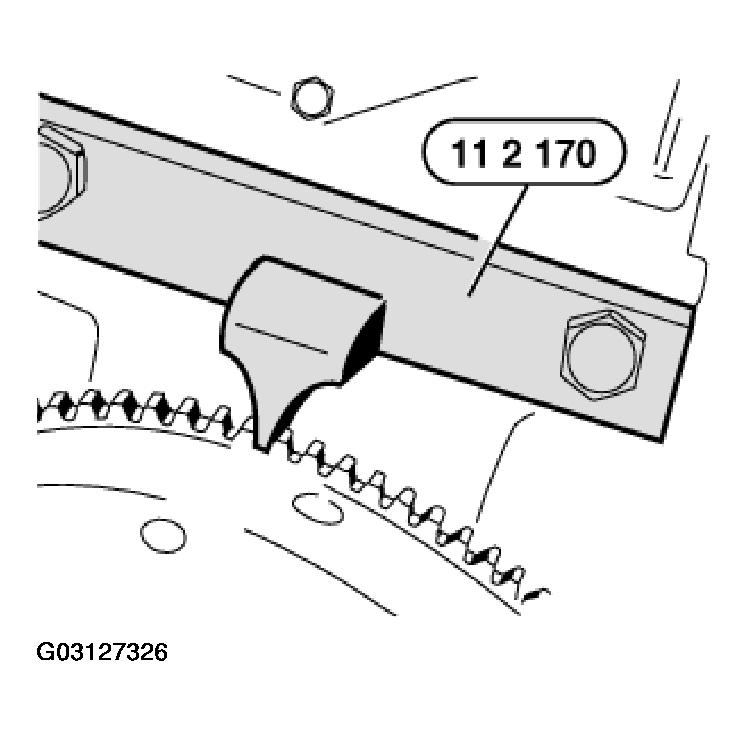

Lock flywheel with special tool 11 2 170.

Fig 1: Locking Flywheel With Special Tool 11 2 170

G03127326

Courtesy of BMW OF NORTH AMERICA, INC.

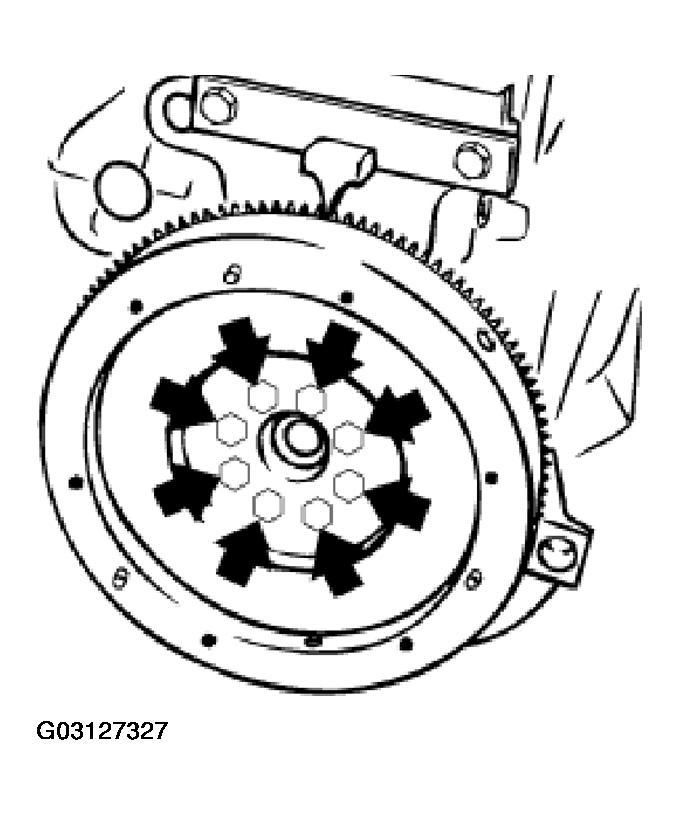

Unfasten screws and remove flywheel.

Fig 2: Unfastening Screws & Removing Flywheel

G03127327

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

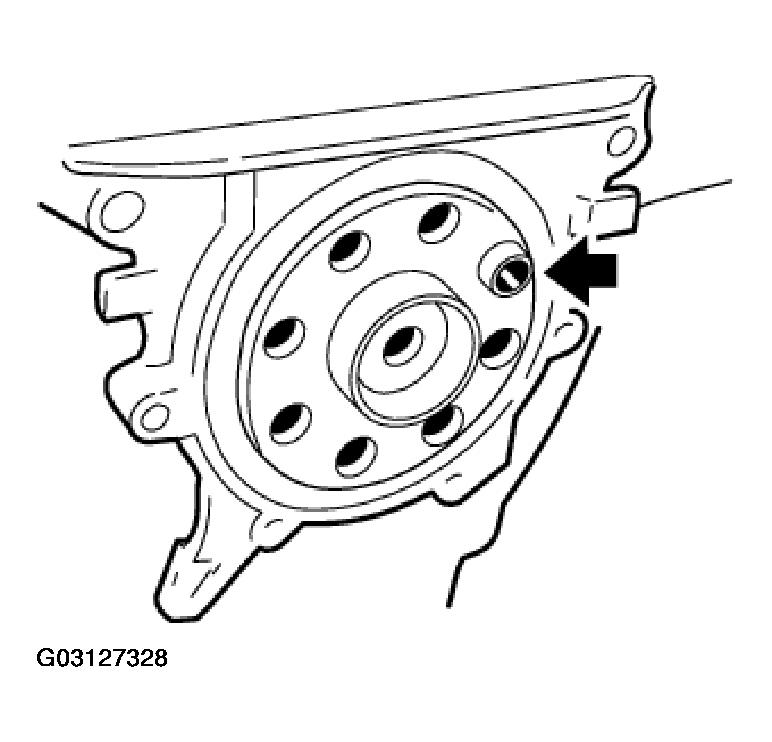

Check dowel sleeve for damage and correct installation position.

Fig 3: Identifying Dowel Sleeve Correct Installation Position

G03127328

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

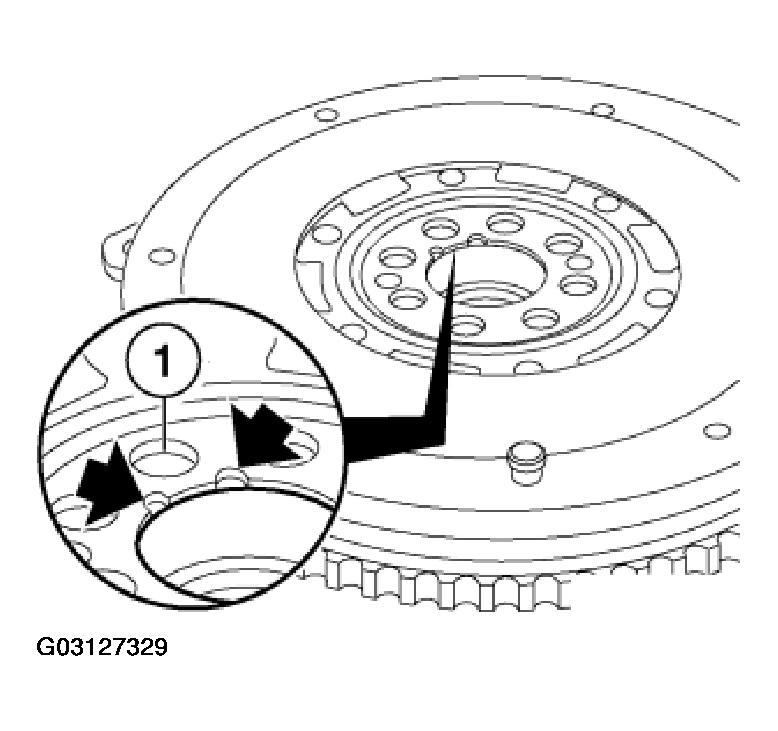

Position of dowel sleeve (1) in dual-mass flywheel is identified by two notches next to associated bolt hole.

Fig 4: Identifying Notches

G03127329

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

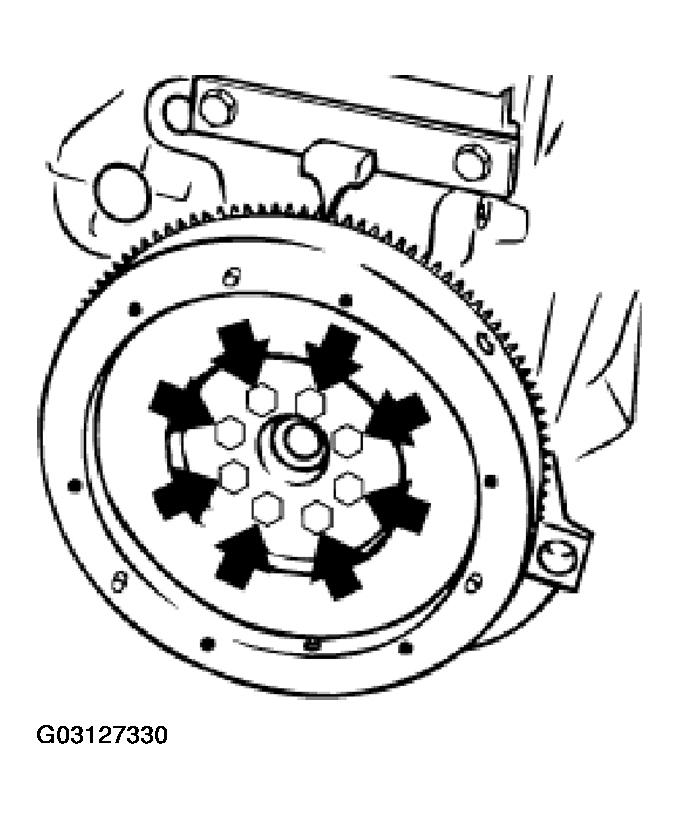

Clean thread and install new micro-encapsulated screws.

Tightening torque. Refer to ENGINE - TIGHTENING TORQUES .

Fig 5: Cleaning Thread & Installing Micro-Encapsulated Screws

G03127330

Courtesy of BMW OF NORTH AMERICA, INC.
