11 12 719 Resurfacing cylinder head sealing surface (M52 / M52TU / M54 / M56)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

(cylinder head dismantled)

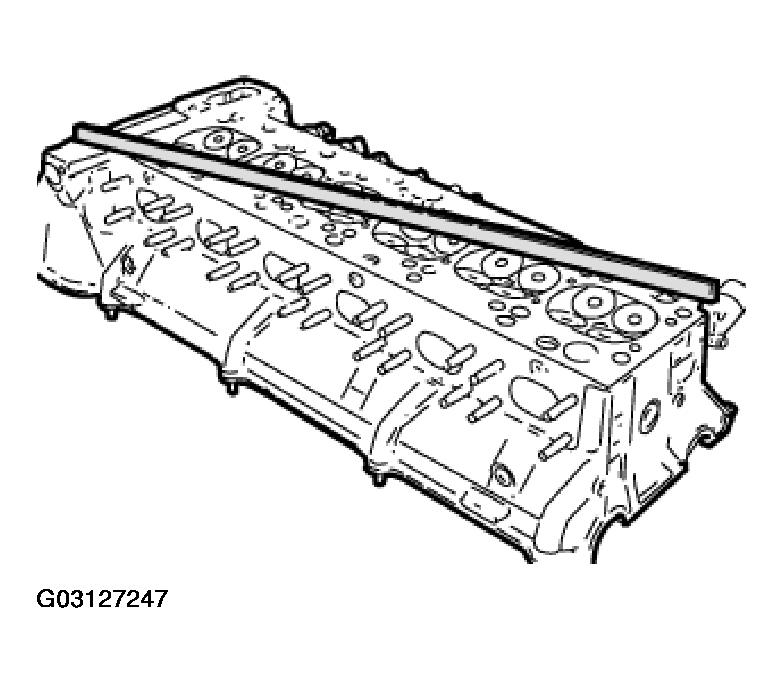

Check flatness of cylinder head sealing surface with a commercially available straightedge.

Deviation from flatness max. 0.05 mm.

Fig 1: Checking Flatness Of Cylinder Head Sealing Surface

Courtesy of BMW OF NORTH AMERICA, INC.

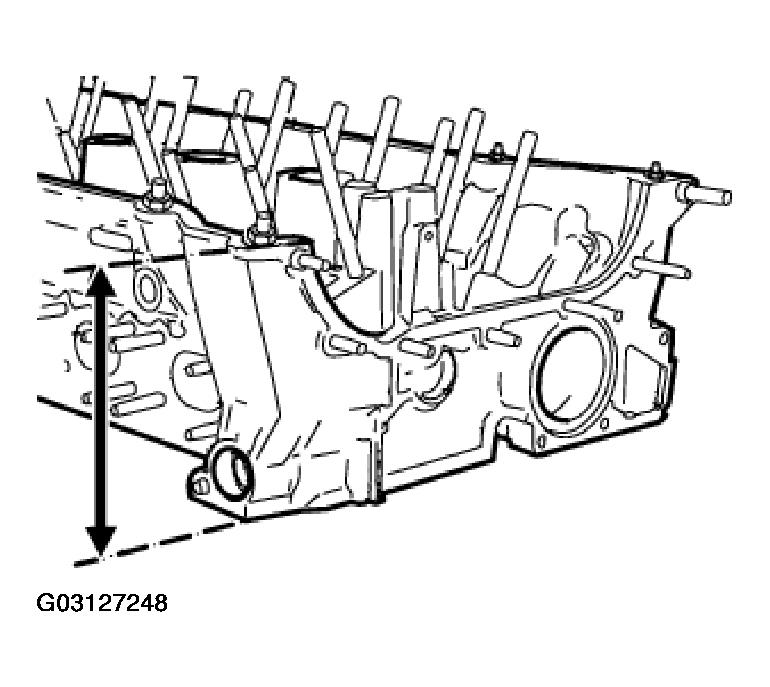

NOTE: Machining limit.

Fig 2: Identifying Machining Limit

Courtesy of BMW OF NORTH AMERICA, INC.

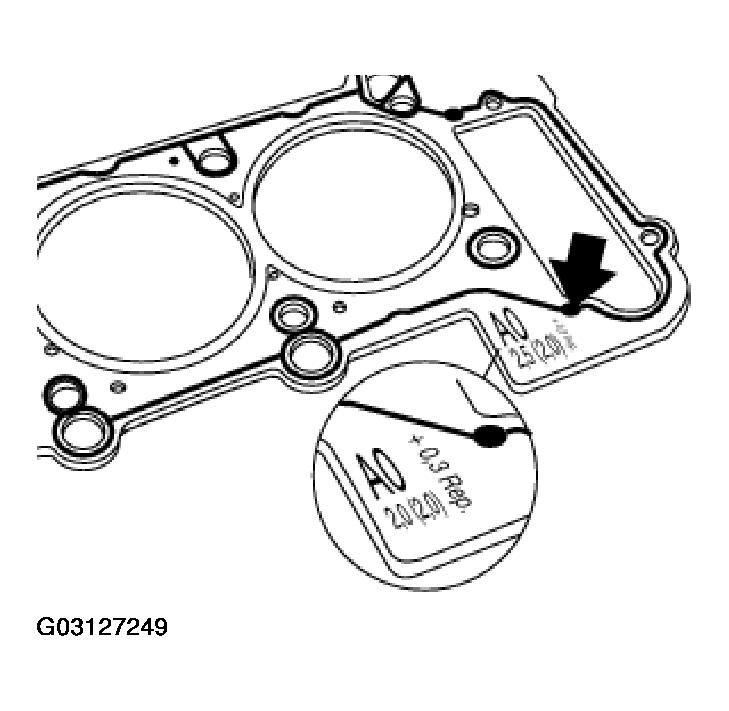

NOTE: For compression comparison check, a repair cylinder head seal is provided.

Fig 3: Identifying Cylinder Head Seal For Compression Comparison Check

Courtesy of BMW OF NORTH AMERICA, INC.
