11 12 100 Removing and installing/replacing cylinder head (M52TU / M54 / M56): Removal

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Removal of cylinder head is described separately from installation.

Remove double VANOS adjustment unit. See 11 36 010 Removing and installing or replacing double VANOS adjustment unit (M52TU / M54 / M56)

Remove camshafts with bearing strips.

Release screw connection between timing case cover and cylinder head.

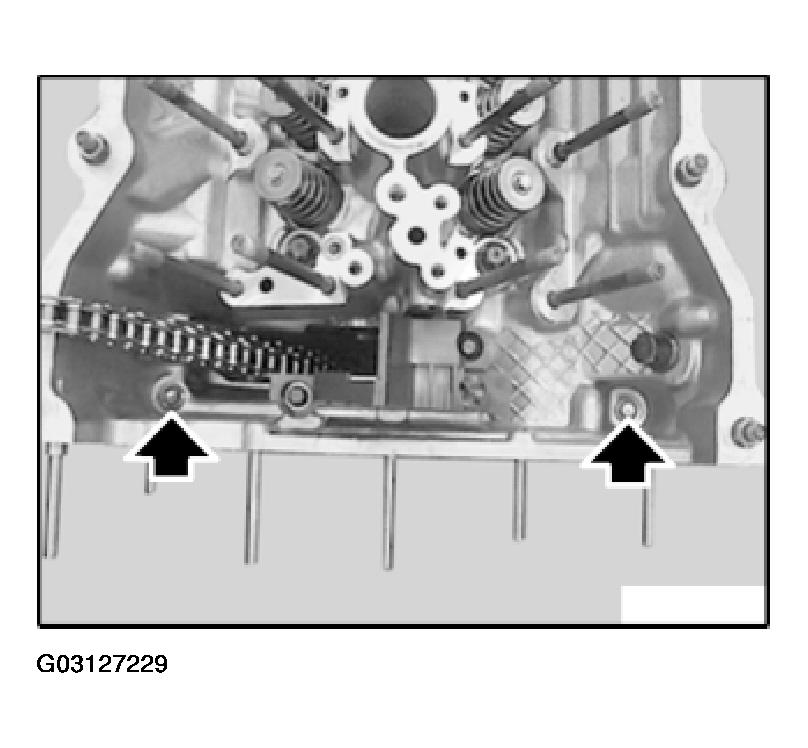

Fig 1: Releasing Screw Connection Between Timing Case Cover & Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws, remove chain guide.

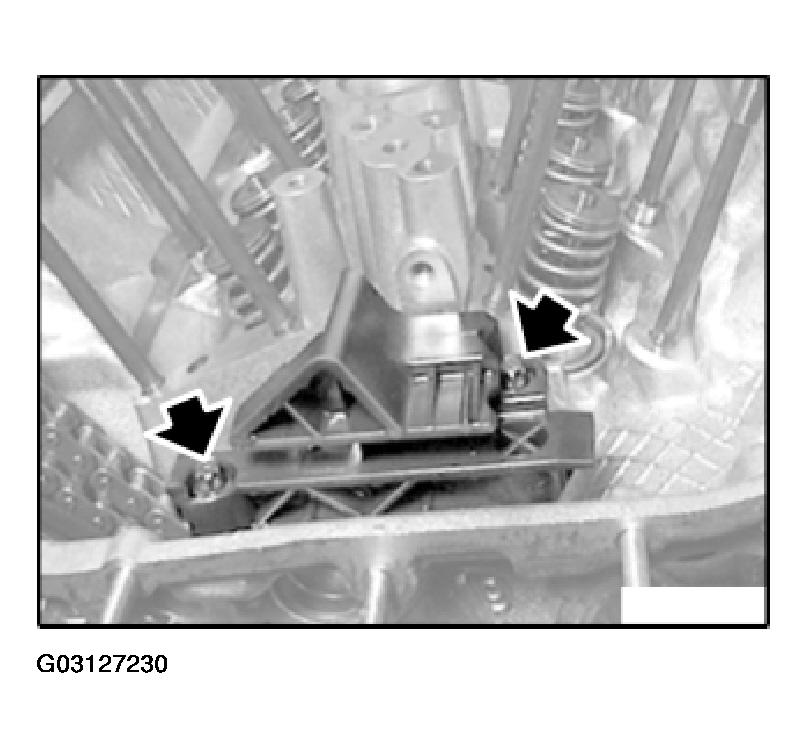

Fig 2: Releasing Screws & Removing Chain Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Release cylinder head bolts from outside to inside in sequence 14 to 1.

Lift off cylinder head.

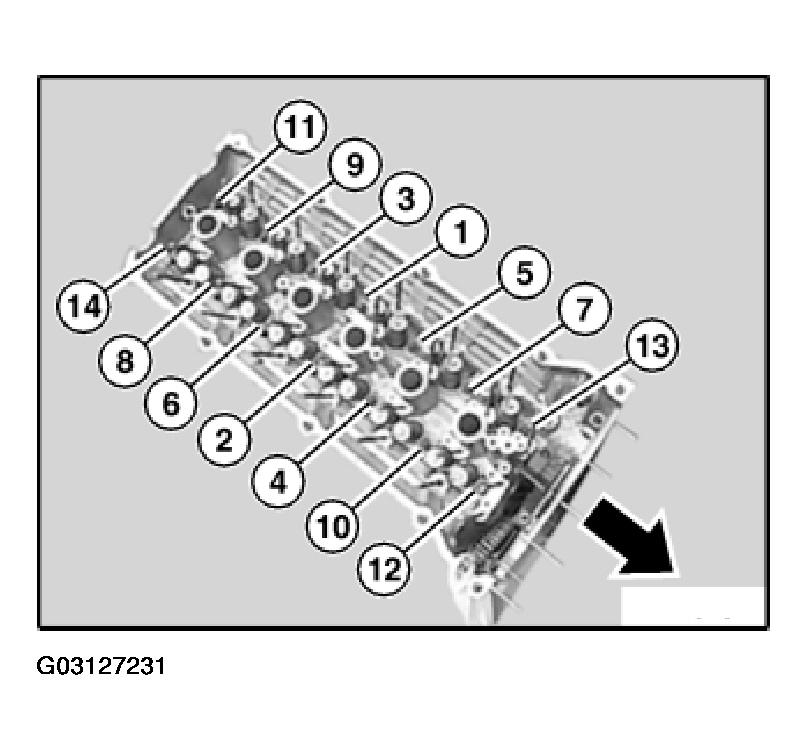

Fig 3: Identifying Removing Sequence Of Cylinder Head Bolts

Courtesy of BMW OF NORTH AMERICA, INC.
