11 31 090 Removing and installing/replacing chain tensioning piston (M52 / M52TU / M54 / M56)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Spring pressure!

Unfasten cylinder for chain tensioning piston.

Installation:

Replace sealing ring.

Tightening torque. Refer to ENGINE - TIGHTENING TORQUES .

Fig 1: Identifying Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

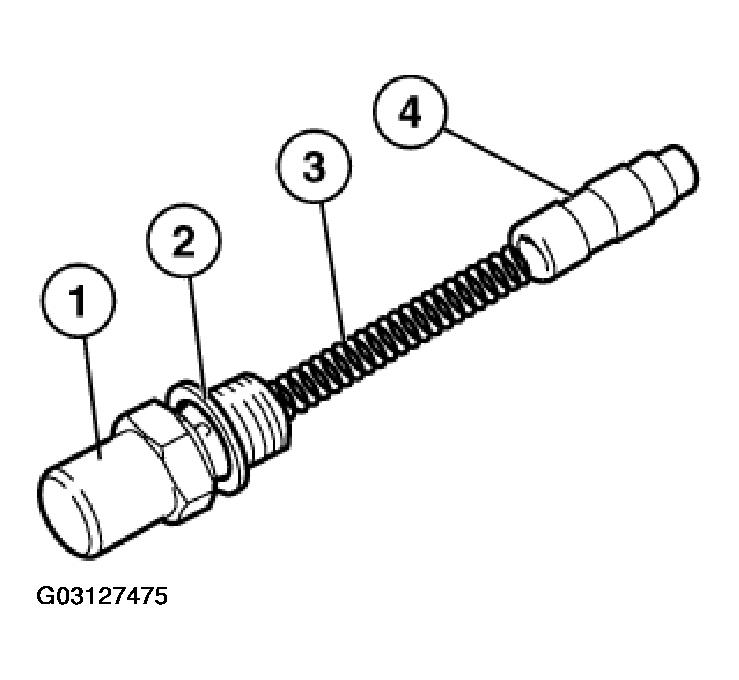

Arrangement of components:

Cylinder for chain tensioning piston
Sealing ring
Spring
Piston

Fig 2: Identifying Components Of Chain Tension Piston
Courtesy of BMW OF NORTH AMERICA, INC.
